Hilux Center Bore Sizes: 106.1mm vs 60.1mm Guide

A small mismatch at the wheel hub can turn into vibration, poor handling, and faster tire wear. The center bore on your Toyota Hilux helps the wheel sit centered on the hub, so the load stays where it belongs. This guide explains what the center bore does, why fitment matters, and how you can choose wheels that fit your Hilux safely.

What’s the Center Bore and Why Should You Care?

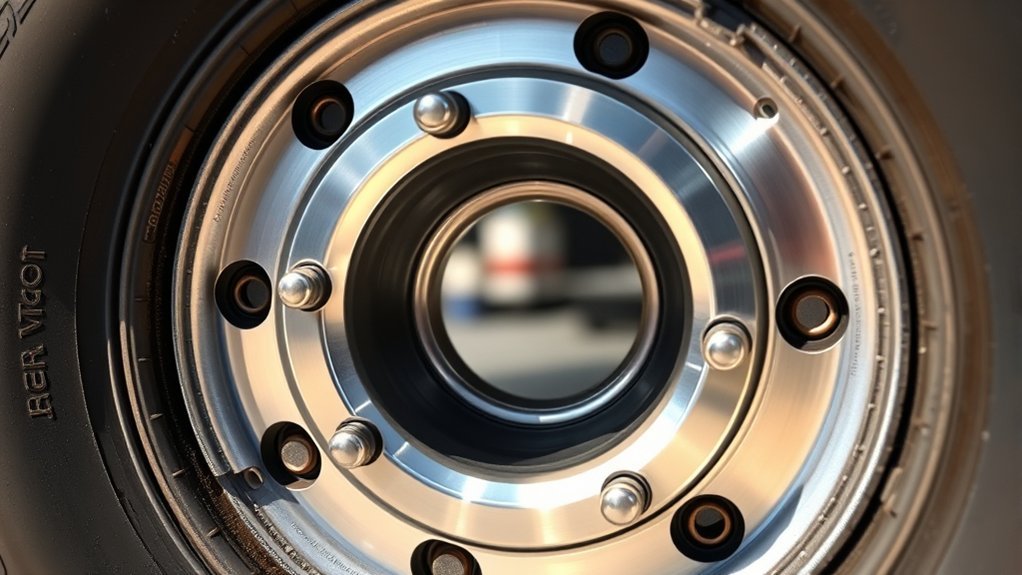

The center bore is the round hole in the middle of your wheel. It fits over the hub on your Toyota Hilux and helps keep the wheel centered during installation.

Many 4WD Hilux models use a 106.1mm center bore, while some 2WD models use 60.1mm. You should still check your owner’s manual, wheel markings, or a trusted fitment guide because Hilux specs can vary by year, market, and trim.

A mismatch can cause vibration, poor alignment, and less stable handling. Under heavy loads or off-road use, those problems can become more noticeable.

How Does a Proper Center Bore Improve Vehicle Performance?

A proper center bore helps your Hilux wheels sit centered on the hub. That centered fit supports smooth rotation and helps reduce vibration through the steering wheel and cabin.

Good hub fitment also helps spread load more evenly across the wheel and hub. This matters more when you carry weight, tow, or drive on rough roads.

If the center bore does not fit well, the wheel may rely too much on the lug nuts to stay centered. That can increase stress on the hardware and reduce ride quality.

Common Center Bore Sizes for Toyota Hilux Models

Most common Toyota Hilux 4WD wheel fitments use a 106.1mm center bore. Some 2WD fitments use 60.1mm, especially where the hub and wheel setup differ from 4WD models.

Before you choose aftermarket wheel options, compare the wheel bore with your vehicle hub bore. The wheel bore should match the hub or be larger if you plan to use the correct hub-centric rings.

Do not use a wheel with a smaller center bore unless a qualified wheel specialist confirms safe machining. Removing material from a wheel can affect strength if done poorly.

How Can You Check Your Hilux Center Bore?

You can check the center bore by reading the wheel specifications, checking your vehicle fitment data, or measuring the hub with a caliper. Measure across the hub’s center lip, not across the lug holes.

If you already have wheels removed, inspect the inside of the wheel for stamped or cast size markings. A tire shop can also confirm the hub bore and wheel bore before installation.

When in doubt, verify the measurement before you buy. A few minutes of checking can prevent vibration, returns, or unsafe fitment.

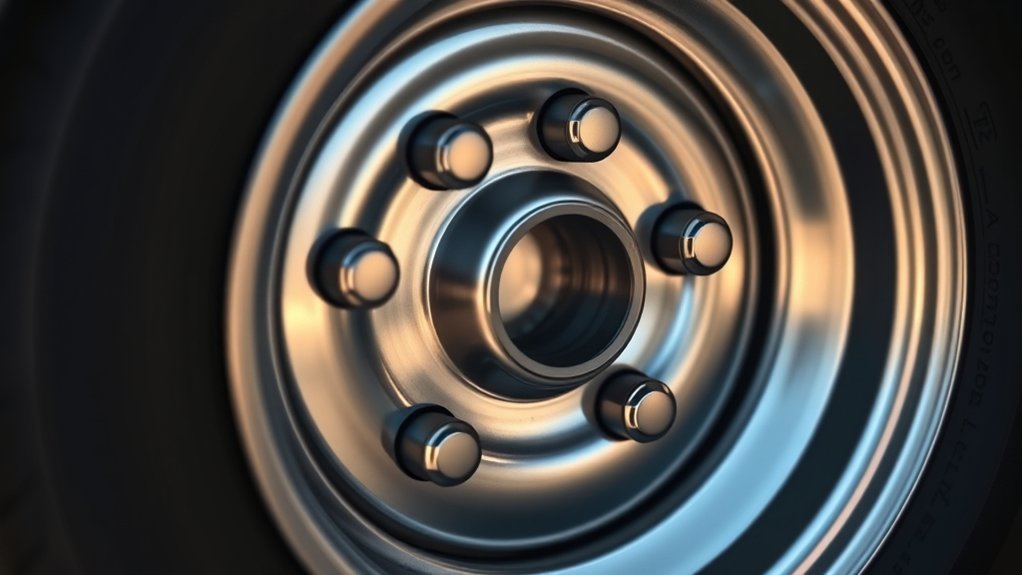

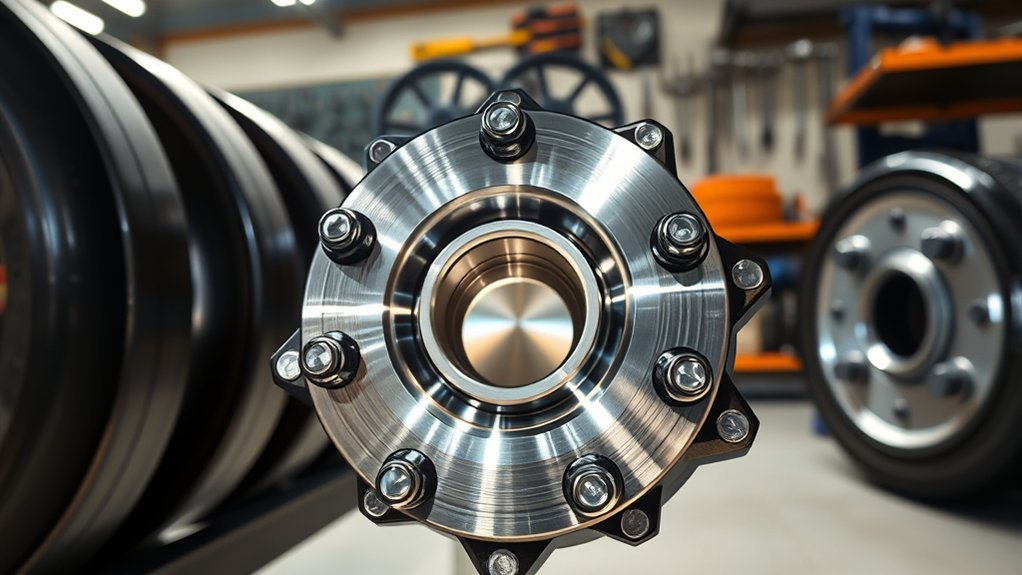

Choosing the Right Wheels: Center Bore Compatibility and Fitment Tips

Finding the right wheels for your Toyota Hilux takes more than choosing a design you like. You need the right center bore, bolt pattern, offset, load rating, and clearance.

If your new wheels have a larger center bore than your hub, use correctly sized hub-centric rings. These rings fill the gap between the wheel and hub, which helps the wheel sit centered.

Always test fit one wheel before mounting the full set. The wheel should sit flat against the hub, clear the brake parts, and tighten evenly to the correct torque.

Risks of Using Incorrect Center Bore Sizes

Using wheels with the wrong center bore size can affect comfort, handling, and safety. A poor fit can cause vibration, especially at highway speeds.

A bore that is too small will not seat over the hub. A bore that is too large may fit, but it needs the right hub-centric ring to center the wheel.

If the wheel does not sit centered, you may notice uneven tire wear, steering shake, or extra stress on lug nuts and studs. Stop driving and inspect the fitment if any of those signs appear.

Frequently Asked Questions

Can I Use a Wheel With a Smaller Center Bore?

No, a wheel with a smaller center bore will not fit over the hub correctly. A qualified wheel specialist may machine some wheels, but you should confirm that the wheel design can handle it safely.

Do You Have to Match Hub Bore Size?

Yes, you should match the hub bore or use wheels with a larger bore and the right hub-centric rings. This helps center the wheel and reduces the risk of vibration.

What Matters in Wheels Bolt Pattern and Center Bore?

The bolt pattern determines whether the wheel can bolt onto your Hilux. The center bore helps the wheel sit centered on the hub, so both specs matter for safe fitment.

Are Hub-Centric Rings Safe for a Toyota Hilux?

Hub-centric rings can be safe when they match the hub and wheel bore sizes. They must seat cleanly, resist heat, and fit without looseness or forcing.

What Should I Check Before Buying Aftermarket Hilux Wheels?

Check the center bore, bolt pattern, offset, rim width, load rating, and brake clearance. You should also confirm tire size and suspension clearance, especially if your Hilux has a lift kit.

Conclusion

The right center bore helps your Toyota Hilux wheels sit centered, run smoothly, and handle safely. Before you buy new wheels, confirm your exact hub bore and compare it with the wheel specs.

If the wheel bore is larger, choose the correct hub-centric rings. If the bore is smaller, get expert advice before making changes.

A careful fitment check helps protect your tires, hardware, and ride quality every time you drive.
