Jacking up a Toyota 4Runner is simple only when the vehicle is parked correctly, the jack is placed on the right point, and the 4Runner is supported before you put any part of your body near or under it. Because jack points can vary by model year, trim, skid plates, lift kits, and wheel setup, always confirm the lifting point in your exact Toyota owner’s manual before raising the vehicle.
Quick Answer
To safely jack up a Toyota 4Runner, park on hard, level ground, set the parking brake, chock the opposite wheels, loosen the lug nuts slightly while the tire is still on the ground, and lift only from the jack points shown in your model-year owner’s manual. Use jack stands before doing any under-vehicle work.
Key Takeaways
- Use the jack points shown in your exact 4Runner owner’s manual; do not assume a skid plate, drain plug area, body panel, or suspension link is safe.
- A jack lifts the 4Runner; jack stands support it. Never work under a vehicle held up only by a jack.
- Many late-model 4Runner manuals list wheel nut torque at 83 ft-lb (110 N·m), but you should verify the spec for your year and wheels.
- Final-tighten lug nuts with a torque wrench on clean, dry threads in a crisscross pattern.
At a Glance
| Time Required | 20–45 minutes for one tire; longer for rotations or garage maintenance |
| Difficulty | Beginner for a flat tire; intermediate if lifting multiple corners |
| Tools Needed | Owner’s manual, jack, lug wrench, wheel chocks, torque wrench, tire pressure gauge, gloves, flashlight, and jack stands for garage work |
| Cost | $0 if using the factory emergency kit; about $75–$250+ for a quality floor jack, stands, chocks, and torque wrench |
Essential Tools and Safety Preparations for Jacking Up Your 4Runner
Before you touch the jack, make the 4Runner stable. Park on a hard, flat surface, shift to Park, set the parking brake, turn on the hazard lights if you are roadside, and keep passengers away from traffic. If the ground is soft, sloped, icy, sandy, or uneven, do not try to lift the vehicle there.
Warning: Never crawl under a Toyota 4Runner that is supported only by a jack. A jack is a lifting tool, not a safe support stand. For rotations, brake work, inspections, or any job that puts you under the vehicle, lower the 4Runner onto properly rated jack stands first.
Gather these tools before lifting:
- Your exact Toyota 4Runner owner’s manual or Toyota’s online manual for your model year.
- Factory jack and lug wrench for an emergency roadside tire change, or a properly rated floor jack for garage tire work.
- Jack stands rated for the load they will support if the vehicle will stay raised or if you will work underneath it.
- Wheel chocks made from rubber or heavy-duty plastic.
- Torque wrench for final lug nut tightening.
- Tire pressure gauge to check the spare and the installed tire before driving.
- Gloves, flashlight, kneeling pad, and reflective triangles for roadside safety.
You can find official Toyota owner’s manuals through Toyota Owners manuals and warranties. For repair-manual-level lift points, Toyota also provides access to service publications through its Technical Information System.
[Products Worth Considering]
This ecocstm ratchet wrench is designed to make emergency and routine tire changes faster with a 360° rotating head and quick forward/reverse switching. The extended handle provides extra leverage to reduce effort and hand fatigue, while the adapter helps fit many scissor jacks on cars, SUVs, trucks, and vans. Built for reliable performance with durable construction, it’s a practical travel essential for on-the-road preparedness.
This spare tire tool kit is designed for the 2004 to 2018 Ford F-150 to help you loosen and tighten wheel lug nuts and manage the spare tire and provided jack functions from underneath the vehicle. It includes the lug nut wrench and extension pieces plus a convenient storage carrying case for organized transport. The jack itself is not included.
The Dr.Roc spare tire tool kit helps you release, lower, or raise your spare tire with reliable extension tools and a lug nut wrench. It is made from rustproof automotive-grade steel and includes an organized carry case for convenient storage. Designed for compatibility with select GM models from the late 1990s through 2019, it uses upgraded extension components to install and remove spare tires with less hassle.
Choose the Right Jacking Points on Your 4Runner
The safest jack point is the one Toyota specifies for your model year and the type of jack you are using. A 4Runner is a body-on-frame SUV, but that does not mean every strong-looking part underneath is safe to lift from. Factory emergency jacks, floor jacks, and shop lifts may use different contact points.
For a typical flat-tire change, Toyota owner’s manual instructions point you to the shown jack points near the frame or axle-housing area for that wheel. Use those illustrations first. If you have aftermarket skid plates, rock sliders, a suspension lift, oversized tires, or a relocated spare, confirm the procedure before lifting.
Note: Do not place the jack under the oil pan, transmission pan, exhaust, fuel tank, differential cover, drain plug area, thin skid plate, suspension link, bumper cover, or body sheet metal. These parts can bend, slip, or fail.
Use this quick jack-point checklist:
- Confirm the manual diagram. Look up the jack point for the exact wheel you are lifting.
- Check the surface. The jack base must sit flat on hard, level ground.
- Center the jack saddle. The jack should contact the reinforced point squarely, not at an angle.
- Lift slowly. Stop immediately if the jack leans, the vehicle shifts, or the contact point starts to deform.
- Use jack stands for support. If the wheel will be off longer than a quick tire swap, support the vehicle before continuing.

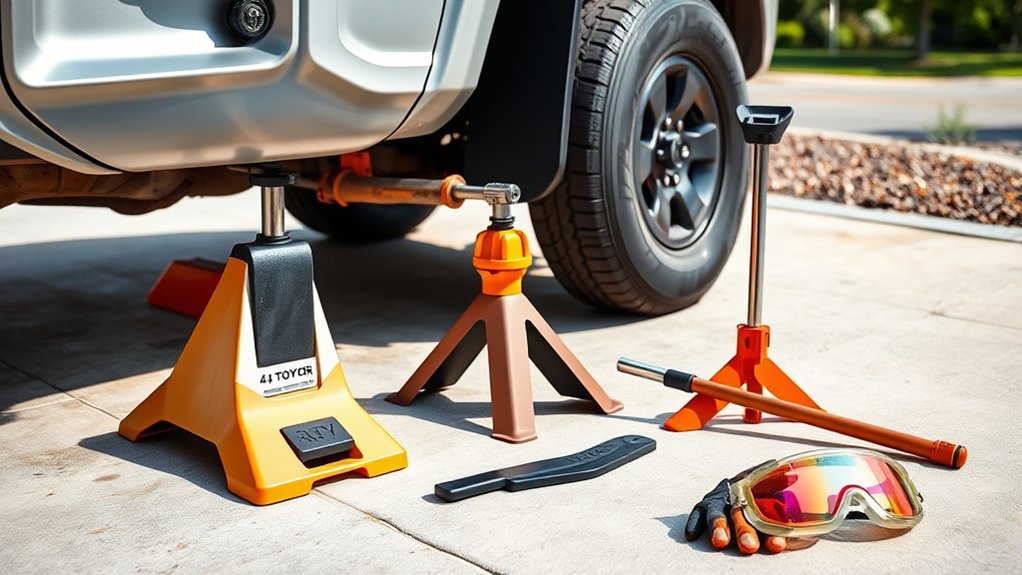

Secure the Vehicle With Jack Stands for Stability
Jack stands are required any time you will work under the 4Runner or leave it raised while doing tire rotation, brake inspection, suspension work, or longer garage maintenance. Choose stands with a capacity rating that exceeds the load they will support, and read the rating carefully because some stands are rated as a pair while others are rated individually.
Place jack stands on hard, level ground under approved support points such as the frame locations shown in the repair information for your model. Lower the vehicle slowly onto the stands and make sure the stands sit vertical, stable, and evenly loaded. Keep the floor jack lightly touching a safe lift point as a backup only after the stands are carrying the vehicle.
A jack should lift the 4Runner; jack stands should hold it. Treat that as the main safety rule for every tire job.
[Products Worth Considering]
Upgrade your wheels with MIKKUPPA M12x1.5 mag seat lug nuts built for secure, corrosion-resistant performance. These closed-end chrome lug nuts are a direct replacement for select Toyota models, including Camry, Corolla, RAV4, Sienna, Avalon, Highlander, Matrix, Venza, and Prius. Triple-chromium plating and cold-forged, heat-treated steel help deliver strength for daily driving and replacement needs.
The Trivd Frol 1/2" air impact wrench delivers high performance torque up to 1500 ft-lbs with a twin hammer impact mechanism for strong, balanced blows. It features an ergonomic grip, compact lightweight design, and quick-stop control with 3 forward speeds up to 8000 RPM plus a reverse speed. Built for demanding automotive repair and tire shop work, the rear exhaust helps keep debris away from the surface.
This 1/2-inch drive breaker bar delivers powerful leverage for loosening and tightening stubborn lug nuts and automotive fasteners. The 180-degree flex head helps you reach tight spaces at the angle you need, making tire and brake jobs easier. A spring-loaded ball detent design holds 1/2-inch sockets securely while the chrome-moly head provides durable strength for everyday use.

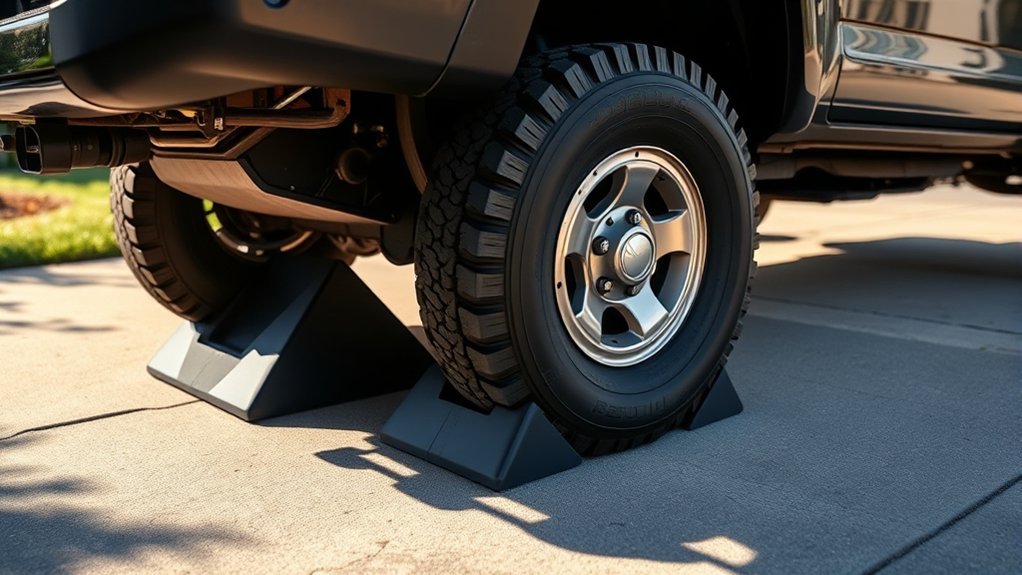

Chocking Your Tires: The Right Way
Wheel chocks help stop the 4Runner from rolling as weight shifts during lifting. Place chocks on the opposite side of the vehicle from the tire being lifted. Push each chock snugly against the tire before lifting.
| Tire Being Lifted | Best Chock Position |
| Front left | Behind the rear right tire |
| Front right | Behind the rear left tire |
| Rear left | In front of the front right tire |
| Rear right | In front of the front left tire |
Pro Tip: Keep two dedicated wheel chocks in the cargo area. Rocks or wood blocks are emergency substitutes only and may slip or split under load.
[Products Worth Considering]
Yieokei Tesla jack pads are molded rubber lifting pucks designed for 2016-2026 Model 3/Y/S/X, including Juniper, to fit securely in the jack hole. They cushion the underframe and help position the jack precisely at the factory jack points to reduce risk of battery, paint, or chassis damage. The set also includes a tire repair tool kit for emergency roadside fixes and comes with a portable storage case to keep everything organized.
Upgrade your wheels with MIKKUPPA closed-end lug nuts designed for reliable fit and corrosion resistance. The one-piece, cold-forged and heat-treated steel construction helps resist rust and stripping, while the integrated finish delivers a durable black appearance. Built to OEM standards with a conical 60-degree seat, these nuts provide a secure solution for compatible Ford, Honda, Jeep, and Chevrolet models.
These M14x1.5 closed-end chrome lug nuts are a one-piece replacement designed for secure fitment on compatible GM, Ford, and select Chrysler/Dodge models. Featuring a 60-degree conical seat and anti-rust chrome plating, they help resist corrosion and maintain a bright look for everyday driving. Built for long-term durability, they include OEM-style part references and are backed by 12 months of support.
How to Jack Up a Toyota 4Runner Step by Step
Use this sequence for a tire change or wheel removal. The same safety order applies whether you are using the factory jack in an emergency or a floor jack in the garage.
- Park safely. Move away from traffic, stop on hard level ground, shift to Park, set the parking brake, and turn on hazards if roadside.
- Check the manual. Confirm the correct jack point for the wheel you are lifting.
- Chock the opposite wheel. Place the chock snugly against the tire opposite the lifted corner.
- Loosen lug nuts slightly. Break each lug nut loose about one turn while the tire is still on the ground. Do not remove them yet.
- Position the jack. Center the jack under the specified lift point and make sure the base sits flat.
- Raise the 4Runner slowly. Lift only until the tire clears the ground enough to remove it.
- Add jack stands if needed. For garage work or any under-vehicle work, lower the 4Runner onto stands before continuing.
- Remove the lug nuts and wheel. Keep the lug nuts clean and avoid dropping them in dirt or gravel.
- Install the spare or wheel. Align the wheel, hand-thread each lug nut, and snug them in a crisscross pattern.
- Lower the vehicle. Bring the tire back to the ground before final torque.
- Final-torque the lug nuts. Use a torque wrench in a crisscross pattern. For many late-model 4Runners, the listed spec is 83 ft-lb (110 N·m), but verify your exact model year and wheel setup.
- Check pressure and stow tools. Confirm tire pressure with a gauge, secure the flat tire or spare carrier, and recheck torque after 50–100 miles.
How to Lower Your Spare Tire
Most 4Runners store the spare under the rear of the vehicle. The exact access point can vary, so use your owner’s manual first. In general, open the rear cargo area, locate the spare-tire tool access point, assemble the jack handle extension, and insert the end into the lowering screw.
Turn the handle counterclockwise to lower the spare fully to the ground. Pull the tire out from under the vehicle, remove the holding bracket from the center hub, and inspect the spare before installing it. Check for low pressure, cracks, sidewall damage, punctures, or an old DOT date before driving on it.
After the tire change, reinstall the flat tire or spare with the outer side facing up if your manual calls for it, secure the holding bracket, and crank the carrier back up until the tire is tight and does not swing.
Safety Tips for Jacking Up Your Toyota 4Runner
Equipment Inspection Essentials
Inspect every lifting tool before use. Do not use a jack with visible damage, leaking hydraulic fluid, a bent saddle, missing parts, or unreadable capacity markings. Do not use jack stands with cracked welds, damaged pawls, bent legs, or unstable bases.
OSHA’s jack safety rules require jacks to have a sufficient rating for the load and to be inspected based on service conditions. That is a workplace rule, but it is also a smart home-garage standard. Use equipment that is clearly rated for the job, and stop if anything feels unstable.
Proper Jack Placement
Place the jack directly under the specified lift point and raise the 4Runner in small, controlled movements. The jack should stay vertical as the vehicle rises. If the jack leans, rolls, or walks forward, lower the vehicle and reset it.
A floor jack is often easier and more stable than the factory emergency jack in a garage, but it still must contact a safe lifting point. The factory jack is designed for emergency wheel changes at the manual’s specified points; it is not a substitute for jack stands or a shop lift.
Torque Specs You Need for Lug Nut Installation
Many Toyota 4Runner owner’s manuals list wheel nut torque at 83 ft-lb (110 N·m). Because Toyota has produced multiple 4Runner generations and wheel packages, always verify the exact number in your model-year manual, especially if you have aftermarket wheels, wheel spacers, or non-factory lug hardware.
Recommended Torque Values
Use a calibrated torque wrench for final tightening. Hand-thread the lug nuts first so you do not cross-thread the studs, snug them in a crisscross pattern, lower the vehicle until the tire contacts the ground, and then torque in the same crisscross pattern.
Keep the lug nut threads and seating surfaces clean and dry unless Toyota or the wheel manufacturer gives a specific instruction otherwise. Lubricating lug threads can change the clamping force and make a normal torque reading inaccurate.
Impact Wrench Considerations
An impact wrench can save time when removing lug nuts, but it should not be trusted for final installation torque. Impact output varies by tool, battery charge, air pressure, socket size, extension length, and user technique.
If you use an impact wrench to snug lug nuts, use a low setting and stop before final torque. Finish with a hand torque wrench at the manufacturer’s specification.
Re-Torque After Installation
After a wheel has been removed and reinstalled, recheck lug nut torque after 50–100 miles of driving. This is especially important after tire rotations, new wheels, new tires, brake work, or any time the wheel has been off the hub.
Torque should be checked when the wheels are cool. Use the same crisscross pattern, and do not exceed the specified torque.
Top Mistakes to Avoid While Jacking Up Your 4Runner
Avoid these common mistakes:
- Jacking from the wrong point. Do not lift from skid plates, oil pans, drain plugs, body panels, or suspension links unless a manufacturer-approved accessory is specifically designed and rated for lifting.
- Skipping wheel chocks. The vehicle can move as the suspension unloads, even with the parking brake set.
- Removing lug nuts before lifting. Loosen them slightly on the ground, then remove them after the tire is raised.
- Working under a jack-only vehicle. Use jack stands before putting any part of your body under the 4Runner.
- Using an impact wrench for final torque. Always confirm final torque with a torque wrench.
- Driving on an unchecked spare. Check pressure and condition before driving away.
- Ignoring the manual after modifications. Lift kits, sliders, skids, aftermarket wheels, and larger tires can change what is safe and practical.
Troubleshooting Common 4Runner Jacking Problems
The Jack Starts to Lean
Lower the vehicle immediately and reset the jack on a harder, flatter surface. A leaning jack can slip out from under the lift point.
The Lug Nuts Are Stuck
Make sure the tire is still on the ground, then use steady pressure on the lug wrench. Do not jump on the wrench if the vehicle is unstable or roadside. If the lug nuts will not move safely, call roadside assistance or a qualified shop.
The 4Runner Has a Lift Kit or Aftermarket Skid Plates
Use the lift-kit and skid-plate manufacturer’s instructions along with Toyota’s manual. You may need a taller jack, taller jack stands, a different saddle adapter, or a shop lift. Never assume an aftermarket plate is a lift point unless the manufacturer says it is.
The Spare Tire Will Not Lower
Check that the tool extension is fully seated in the lowering mechanism. If the cable or winch is seized, do not force it until it breaks. Have the carrier serviced so the spare can be removed safely.
Frequently Asked Questions
How do you raise a Toyota 4Runner safely?
Park on hard, level ground, set the parking brake, chock the opposite wheel, loosen the lug nuts slightly, position the jack at the model-year jack point shown in your owner’s manual, and raise the vehicle slowly. Use jack stands before under-vehicle work.
Can I jack up a 4Runner from the front skid plate?
Do not use the front skid plate as a universal jack point. Some aftermarket skid systems may include reinforced lift areas, but many skid plates are not designed to carry the vehicle’s weight. Use the jack points shown in Toyota’s manual or the accessory maker’s written instructions.
What is the Toyota 4Runner lug nut torque?
Many late-model Toyota 4Runner manuals list 83 ft-lb (110 N·m). Confirm the exact spec in your owner’s manual, especially if you have aftermarket wheels, wheel spacers, or different lug hardware.
Do I need jack stands for changing one tire?
For a quick roadside tire swap, the factory jack is intended to lift the vehicle long enough to change that tire at the specified jack point. For garage work, rotations, brake checks, or any job that places you under the vehicle, use jack stands.
Should I use anti-seize on 4Runner lug nuts?
Do not apply anti-seize to lug nut threads as a general practice. Wheel torque specifications are normally based on clean, dry threads. Lubrication can change clamping force and create an inaccurate torque reading unless the manufacturer specifically instructs otherwise.
Conclusion
Safely jacking up a Toyota 4Runner comes down to three rules: use the correct model-year jack point, stabilize the vehicle before lifting, and support it properly before doing anything beyond a quick tire swap. Verify the jack point and lug torque in your owner’s manual, use wheel chocks every time, and finish the job with a torque wrench and tire pressure check. If the ground, traffic, weather, tools, or jack setup do not feel safe, call roadside assistance instead of forcing the repair.
