Milton S-693 Straight Foot Dual Head Air Chuck Review
Inner dual valve stems can make a simple tire check feel awkward, especially on dually trucks, RVs, tractor trailers, and semi trucks. The Milton S-693 Straight Foot Dual Head Air Chuck is built for that access problem with a straight dual-head design, brass body, 1/4″ FNPT connection, and 150 PSI maximum pressure rating. This review helps you decide whether the S-693 is the right air chuck for your tire service setup, or whether you need a full inflator gauge, longer reach chuck, or different fitting instead.
Quick Verdict
Rating: 8/10
Best For: You should consider it if you service dual-wheel trucks, RVs, trailers, or shop vehicles and need better access to inward-facing valve stems.
Bottom Line: The Milton S-693 is a compact brass air chuck that solves a real valve-access problem on inner duals. The tradeoff is that it is not a complete pressure gauge or full inflator, so your air line, fittings, and separate pressure-reading tool still matter.
| Specification | Detail |
|---|---|
| Brand | Milton |
| Model | S-693 |
| Product Type | Straight foot dual head air chuck |
| Item Type Name | Air chuck |
| Design | Straight foot, dual head, made for inner dual valve access |
| Material | Brass |
| Connection | 1/4″ FNPT, female national pipe thread |
| Maximum Pressure | 150 PSI |
| Valve Connection | Both ends lock on valve-core threads |
| Dimensions | 6.7 x 4 x 2 inches |
| Weight | 2.4 ounces |
| Count | 1 air chuck |
| Included Components | 1 Milton branded product |
| Warranty | 1 year |
| Manufacturer | Milton Industries |
| Origin Claim | Made in USA |
| Best Use | Truck, tractor trailer, semi truck, dually, RV, trailer, and car tire service when the air setup matches |
[Products Worth Considering]
The LUMITECO 12" extended reach dual head air chuck is designed for hard-to-reach truck, RV, and bus dual wheels, making tire inflation quick and easier. It features a straight foot lock-on chuck for inner tires and a 30° reverse chuck for outer valves, with a closed-flow design that only allows air when engaged. Built with a brass body and ergonomic rubber grip, it connects easily using a 1/4" FNPT thread plus a standard quick plug for compressor-ready inflation.
The AstroAI 2 pack air chucks provide a heavy-duty, closed-flow locking design that helps keep air flowing during inflation while securely attaching to the valve stem. Built with 250 PSI rated brass components and compatible with Schrader valves, they feature 1/4" female NPT threads for a wide fit with common inflators. The straight tip and locking clip make filling tires and monitoring pressure more convenient.
The SKÖG Chuck Mates Platinum uses a patented RatchetSeal push-to-connect system for instant, secure, air-tight attachment to standard tire valve stems. It features an easy push-button release for quick disconnects, plus 360° swivel open-flow airflow to keep operation smooth and kink-free. Universal Schrader compatibility makes it ideal for cars, bikes, motorcycles, RVs, trucks, and more.

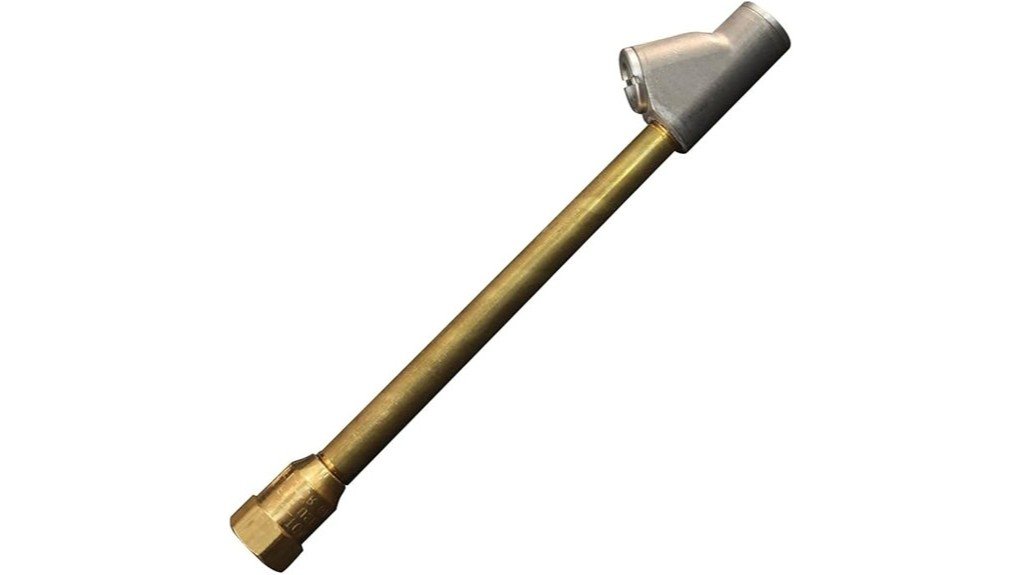

What Is the Milton S-693 Air Chuck?
The Milton S-693 is a straight foot dual head air chuck for tire inflation work. It is designed to help you reach inner dual valve stems, especially when the valve faces inward and a basic straight chuck is hard to seat. The listing identifies the item type as an air chuck, so you should not treat it as a standalone tire pressure gauge.
The core setup is simple: you get a brass air chuck with a 1/4″ FNPT connection, both ends designed to lock on valve-core threads, and a maximum air pressure rating of 150 PSI. That makes it a practical fit for many truck, RV, semi truck, tractor trailer, dually, trailer, and passenger vehicle tire service tasks. Its value comes from access and sealing, not from electronics, digital readings, a hose, or a built-in pressure display.
At 2.4 ounces and 6.7 x 4 x 2 inches, the S-693 is compact enough to keep in a garage drawer, shop cart, roadside kit, or dedicated tire-service box. The brass body gives it a more durable feel than lightweight plastic chucks, but you still need a compatible air line, adapter, or tire service setup before it can do useful work.
Key Takeaways
- The Milton S-693 is a straight foot dual head air chuck, not a complete tire pressure gauge.
- The dual-head layout helps you reach inward-facing valve stems on inner dual wheels.
- The 1/4″ FNPT connection fits common pneumatic setups when the rest of your system matches.
- The 150 PSI maximum pressure rating covers many truck, RV, trailer, and passenger vehicle tire service jobs.
- The brass build, 2.4 oz weight, 1-count package, and 1-year warranty make it a simple shop accessory.
Who Should Buy It?
Best For
- You service dually trucks, RVs, semi trucks, tractor trailers, or trailers with inner valve stems that are hard to reach.
- You already have an air compressor, air line, or tire service setup that can accept a 1/4″ FNPT air chuck.
- You want a compact brass chuck for routine inflation tasks instead of a full digital inflator gauge.
Skip If
- You need a complete tire pressure gauge with a dial, digital screen, hose, and trigger in one tool.
- You need a long 12-inch reach for deep wheel positions where the standard S-693 body may feel too short.
- You are not comfortable matching fittings, thread types, and compressor accessories before use.
Before You Buy: The S-693 is only the chuck end of the setup. Check your hose, coupler, adapter, or inflator tool before ordering because the 1/4″ FNPT connection must match the rest of your tire-service equipment.
Straight Foot Dual Head Air Chuck Features
Dual-Head Access for Inner Duals
The main reason to buy the S-693 is its straight foot dual-head design. One end helps you approach valve stems that face outward, while the opposite angle helps with inward-facing inner dual valves. That matters when you work around large wheels, tight rim openings, or dual-wheel setups where your hand has limited room.
For trucks, RVs, tractor trailers, semi trucks, and dually pickups, this layout can save time during routine inflation. You do not have to fight the same awkward angle with every valve stem. The benefit is practical: better seating, less air loss, and fewer repeated attempts to get the chuck positioned correctly.
1/4″ FNPT Fit and Compatibility
The S-693 uses a 1/4″ FNPT connection, which means female national pipe thread. This is a common fitting size in pneumatic tools, but you still need to match it to your hose, coupler, adapter, or inflator setup. Before buying, check the fitting on your current equipment rather than assuming every compressor accessory will connect directly.
This threaded connection is one reason the S-693 feels more like a shop accessory than a consumer all-in-one tire tool. It is best for you if you already have an air system and need to replace or upgrade the chuck end. If you want a plug-and-play handheld gauge, a Milton S-986 or a digital inflator gauge may be a better match.
150 PSI Maximum Pressure Rating
The S-693 is rated for a maximum air pressure of 150 PSI. That rating gives it enough headroom for many passenger car, light truck, RV, trailer, and heavy-duty tire maintenance tasks. You should still follow the tire placard, tire sidewall limits, and vehicle manufacturer’s recommended pressure instead of inflating based only on the chuck’s maximum rating.
The 150 PSI ceiling is useful because many general-purpose tire accessories are built around lower pressure ranges. For a shop, fleet, or garage that handles more than standard passenger cars, that extra margin helps the chuck fit a wider range of tire service jobs without making the tool bulky.
Brass Construction and Compact Size
The listing identifies the S-693 material as brass. Brass is a sensible material for an air chuck because it resists corrosion better than bare steel in many garage conditions and handles repeated thread contact well. It also gives the small chuck a solid feel without making it heavy.
At 2.4 ounces, the S-693 is light enough to guide onto the valve stem with one hand. The listed 6.7 x 4 x 2 inch dimensions make it compact, but that also means it is not the extended-reach version. For very deep wheel access, compare it with the 12-inch S-693-12 before deciding.
Lock-On Valve-Core Threads
The listing states that both ends lock on valve-core threads. This design helps the chuck hold a more secure connection while air moves through the valve. When seated correctly, it can reduce the hiss and wasted motion that happen with a loose push-on chuck.
The lock-on design is especially useful when you are working inside a dual-wheel setup. Your hand position may be awkward, and a chuck that stays aligned can make the job less frustrating. You still need to thread and remove it carefully so you do not damage the valve stem.
Compatibility and Safety Notes
The most important compatibility detail is the 1/4″ FNPT connection. If your hose uses a quick coupler, male pipe thread, or a different adapter size, you may need another fitting before the S-693 can be attached. Do not force mismatched threads because cross-threading can damage the chuck, the adapter, or your air tool.
For pressure safety, use the S-693 as the air connection point, then confirm the final PSI with a separate pressure gauge or pressure-reading inflator setup. The 150 PSI maximum rating is the tool’s upper limit, not a recommendation for your tire. Always use the recommended pressure for your vehicle, trailer, RV, or equipment.
Pro Tip: Keep the S-693 attached to a dedicated tire-service hose if you use dual-wheel vehicles often. That reduces setup time and lowers the chance of mixing adapters when you need a quick pressure check.
How to Use the S-693 Air Chuck
Attach the S-693 air chuck to a compatible 1/4″ FNPT air line, adapter, or tire-service setup. Place the correct end of the dual-head chuck onto the valve stem and keep the body aligned with the valve. Engage the lock-on valve-core threads gently so the connection seals without forcing the stem.
| Step | Action | Result |
|---|---|---|
| 1 | Confirm the 1/4″ FNPT connection matches your setup | Ready for installation |
| 2 | Attach the chuck to your air line, adapter, or compatible tire-service tool | Secure air path |
| 3 | Seat the correct chuck end on the valve stem | Better seal |
| 4 | Inflate using your connected air source | Controlled tire service |
| 5 | Check the final PSI with a separate pressure-reading tool | Safer final pressure |
Listen for leaks while the chuck is seated. If you hear steady escaping air, stop and reposition it instead of forcing the connection. Because the S-693 does not include a pressure display, use a separate gauge or inflator gauge to confirm final tire pressure.
[Products Worth Considering]
This EVOULTES 2-way air chuck set includes a dual head closed flow air chuck and a ball head chuck for versatile tire inflation. It connects easily to air lines, inflator gauges, and compressors using 1/4" NPT threads and includes two 1/4" male quick plugs for fast coupling. Built with durable metal construction and sealed threads using Teflon tape to help prevent air leaks, it’s ideal for inflating Schrader valve tires across cars, bikes, and motorcycles.
This 2-pack closed-flow locking air chuck set delivers controlled airflow only when the valve stem is held in place, helping prevent leaks during inflation. Made for heavy-duty use with a 300 PSI maximum rating, it features a brass body for corrosion resistance and long service life. The 1/4" FNPT connection and quick-plug compatibility make it convenient for use with Schrader valve systems and common truck, RV, and auto air compressors.
How It Performs in Real Use
On a Dually Pickup or RV
The S-693 makes the most sense when you are dealing with inner dual valve stems. The dual-head layout gives you two approach angles, which can reduce the time spent hunting for the right position. On an RV or dually pickup, that can make routine pressure checks less tiring.
In a Garage or Small Shop
In a garage, the 1/4″ FNPT fitting works best when your air hose and coupler system is already set up for threaded pneumatic accessories. The brass body should hold up well to repeated use, especially if you avoid dropping it on concrete or cross-threading it. Its 2.4 oz weight also makes it easy to keep attached to a dedicated tire service hose.
For Roadside Tire Maintenance
The compact size helps if you carry a small compressor and fittings in a truck or RV kit. You still need the right adapter, hose, and pressure gauge, so it is not a complete roadside solution by itself. As part of a prepared kit, though, the S-693 gives you a more useful chuck shape for dual-wheel access.
For Trailer and Fleet Checks
If you maintain trailers, work trucks, or mixed vehicle equipment, the S-693 can speed up repeat tire checks where valve access changes from wheel to wheel. The 150 PSI rating gives useful headroom for many service tasks, while the brass body keeps the tool simple. The main limit is workflow: you still need a separate way to read pressure accurately.
Pros and Cons
Pros
- Dual-head straight foot layout improves access to inward-facing inner dual valve stems.
- 1/4″ FNPT connection fits many pneumatic tire service setups when properly matched.
- 150 PSI maximum pressure rating suits a wide range of truck, RV, trailer, and car tire tasks.
- Brass construction gives the 2.4 oz chuck a durable, shop-ready feel.
- Both ends lock on valve-core threads for a more secure seal during inflation.
Cons
- It is not a complete pressure gauge, so you need separate equipment to read PSI.
- The standard S-693 is compact, so very deep wheel positions may need an extended-reach chuck.
- You must confirm fitting compatibility before attaching it to your air line or inflator setup.
Is It Worth the Price?
The Milton S-693 offers strong value for the price if you need a dedicated air chuck for dual-wheel tire access. It does not try to replace a full inflator gauge, digital tire gauge, or compressor kit. Instead, it focuses on the connection point, which is often the part that causes the most frustration on inner duals.
You get the most value from it if you already own compatible air equipment. In that setup, the S-693 can be a smart buy for everyday use because the brass body, 150 PSI rating, and dual-head geometry solve a specific problem at the valve stem. If you are starting from zero, budget for the rest of the tire service setup too.
It is not the best fit if you only want one handheld tool that reads PSI, inflates, bleeds pressure, and stores in a glove box. For that type of buyer, a dedicated inflator gauge or tire pressure gauge is a better starting point.
How It Compares to Alternatives
The Milton S-690 is another dual-head air chuck option, but the S-693 is the better fit when you want the straight foot shape for inner dual access. The Milton S-693-12 gives you a longer 12-inch reach, which can help on deeper truck wheels, but it takes up more room in a compact kit. The Milton S-986 is closer to what you need if you want a tire pressure gauge with a pressure range printed on the tool.
Choose the S-693 if your priority is a compact brass chuck that reaches awkward dual-wheel valves. Choose an extended-reach chuck if distance is your main issue. Choose a gauge or inflator gauge if you need to read PSI without adding a separate tool.
Frequently Asked Questions
Is the Milton S-693 a tire pressure gauge?
No. The S-693 is an air chuck, not a complete tire pressure gauge. You need a separate gauge, inflator gauge, or compatible pressure-reading tool to measure PSI.
What fitting does the Milton S-693 use?
It uses a 1/4″ FNPT connection. Before buying, check that your air line, inflator, coupler, or adapter can connect to female national pipe thread in that size.
Can the S-693 reach inner dual valve stems?
Yes, that is the main reason to consider this model. Its straight foot dual-head design is made to help access inner dual valves, especially when the valve faces inward.
What is the maximum pressure rating?
The S-693 is rated for a maximum air pressure of 150 PSI. Always inflate based on the tire or vehicle manufacturer’s recommended pressure, not the chuck’s maximum rating.
What comes in the box?
The listing states that the package includes 1 Milton branded product. It does not list a hose, pressure gauge, compressor adapter set, or storage case as included accessories.
Should you choose the S-693 or the S-693-12?
Choose the S-693 if you want a compact dual-head chuck for a garage, service cart, or road kit. Choose the S-693-12 if you need a longer reach for deeper dual-wheel setups.
Can you use the Milton S-693 with a small portable compressor?
Yes, but only if the compressor hose or adapter setup matches the 1/4″ FNPT connection. You still need a way to read pressure because the S-693 does not include a display or gauge.
Who should skip this air chuck?
Skip it if you want an all-in-one tire inflator gauge, a digital PSI reading, or a long-reach chuck for deep wheel openings. It is also not ideal if you do not want to match fittings before use.
The Bottom Line
The Milton S-693 earns its 8/10 rating because it solves a real access problem with a brass body, 1/4″ FNPT connection, dual-head geometry, and 150 PSI pressure rating. You should buy it if you already have a compatible air setup and need a better way to service inner dual valve stems. You should skip it if you need an all-in-one tire pressure gauge or a longer extended-reach chuck.
