Reaching the inner valve on a dually can turn a simple inflation job into an awkward one, especially when a short chuck will not line up cleanly. The LUMITECO 12″ Extended Reach Dual Head Air Chuck is designed to solve that access problem with a 12-inch extended rod, two chuck heads, a rubber grip, and a closed-flow design. Its strongest fit is for truck, RV, trailer, and other dual-wheel owners who already have a compatible compressor or air line. The main tradeoff is that this is an air chuck, not a pressure gauge, so you still need a reliable way to verify tire pressure.
Quick Verdict
Rating: Recommended with caveats
Best For: Dually truck, RV, trailer, bus, and garage users who need extra reach and a lock-on dual head.
Bottom Line: The extended reach, straight and 30-degree reverse heads, and closed-flow operation make difficult Schrader valves easier to approach. It is less useful if you need a chuck with a built-in pressure display or do not have a compatible 1/4-inch air setup.
| Specification | Detail |
|---|---|
| Brand | LUMITECO |
| Model | LTAC110A |
| Product type | Extended-reach dual-head closed-flow tire air chuck |
| Selected size | 12-inch version with handle |
| Head design | Straight foot plus 30-degree reverse head |
| Body and nozzle | Brass body, zinc alloy air nozzle, rubber grip |
| Air connection | 1/4-inch FNPT plus included standard 1/4-inch male quick plug |
| Valve compatibility | Schrader valves |
| Item weight | 6.7 oz |
| Package dimensions | 12.68 x 3.19 x 0.87 inches |
| Included items | 1 extended dual-head chuck, 1 male quick plug, 1 roll/piece of thread-seal tape |
| Best use | Hard-to-reach valves on dual wheels, trucks, RVs, trailers, buses, and other Schrader-valve tires |
What Is the LUMITECO 12″ Air Chuck?

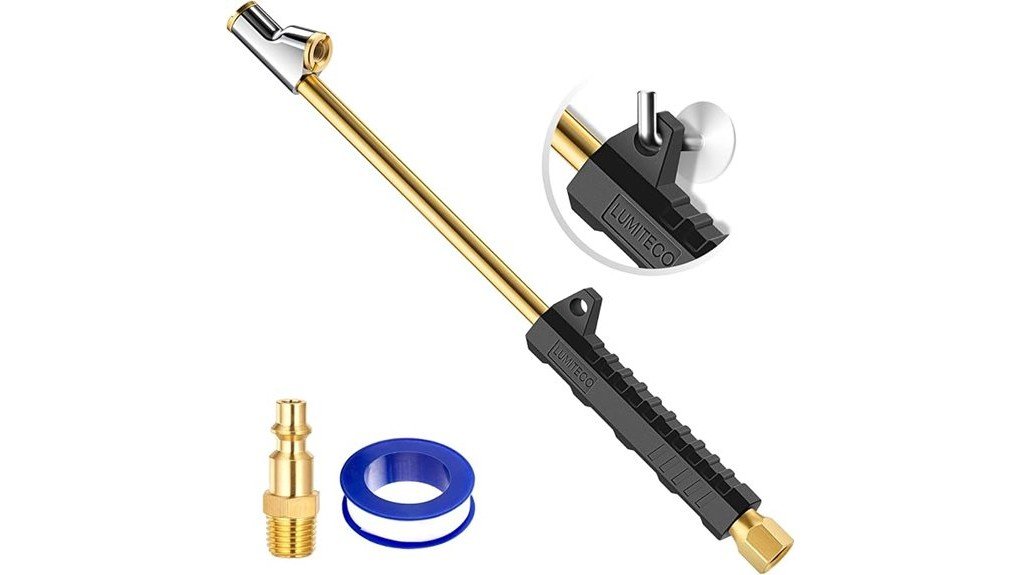

The LUMITECO LTAC110A is a 12-inch extended-reach tire air chuck made to connect an air line to a Schrader valve. The reviewed version uses a dual-head layout: a straight foot for inner or recessed valves and a 30-degree reverse head that is easier to position on many outer dual-wheel valves.
The body is listed as brass, the nozzle as zinc alloy, and the grip is rubberized for a steadier hold. It also has 1/4-inch FNPT threading and includes a standard 1/4-inch male quick plug, so you can connect it to many common compressor air-line setups without buying that plug separately.
[Products Worth Considering]
The LUMITECO 12" extended reach dual head air chuck is designed for hard-to-reach truck, RV, and bus dual wheels, making tire inflation quick and easier. It features a straight foot lock-on chuck for inner tires and a 30° reverse chuck for outer valves, with a closed-flow design that only allows air when engaged. Built with a brass body and ergonomic rubber grip, it connects easily using a 1/4" FNPT thread plus a standard quick plug for compressor-ready inflation.
The SKÖG Chuck Mates Platinum uses a patented RatchetSeal push-to-connect system for instant, secure, air-tight attachment to standard tire valve stems. It features an easy push-button release for quick disconnects, plus 360° swivel open-flow airflow to keep operation smooth and kink-free. Universal Schrader compatibility makes it ideal for cars, bikes, motorcycles, RVs, trucks, and more.
This dual head and ball air chuck set provides closed-flow tire inflation that routes air only through the chuck engaged with the valve. It includes both dual-head and ball-head chucks plus quick plug fittings for easy, fast connections to air lines and compressors. Built for reliable, leak-resistant operation, it’s ideal for filling Schrader valves on bikes, motorcycles, cars, trucks, and more.
Key Takeaways
- The 12-inch extended rod is the main reason to consider it for dually and hard-to-reach valve work.
- The straight and 30-degree reverse heads let you approach inner and outer dual-wheel valves from different angles.
- The closed-flow design stops supply air when the chuck is not engaged with a valve core.
- The reviewed package includes the chuck, a male quick plug, and thread-seal tape.
- You still need a compressor or air source, and you need a separate gauge or inflator gauge to confirm final tire pressure.
Who Should Buy It?
Best For
- Dually truck or RV owners who struggle to reach inner valve stems with a short chuck.
- Garage and fleet users who already have a 1/4-inch air line or compatible compressor connection.
- Buyers who prefer a threaded lock-on style rather than holding a plain chuck against the valve by hand.
Skip If
- You need an inflator with a built-in pressure display or trigger.
- Your air hose or compressor does not accept the included quick-plug style or 1/4-inch FNPT setup.
- You only service easy-to-reach valves and do not benefit from a 12-inch rigid reach.
Before You Buy: This chuck does not show tire pressure. Confirm that your air-line fittings are compatible and use a suitable pressure gauge or inflator gauge so you can set each tire to the pressure specified for your vehicle and tire setup.
Fit and Compatibility
The reviewed chuck uses 1/4-inch FNPT threading and comes with a standard 1/4-inch male quick plug. That gives you two practical connection paths: thread the chuck into a compatible air-line fitting, or install the supplied plug and connect it to a matching female quick coupler.
At the tire end, LUMITECO lists the chuck for Schrader valves on trucks, RVs, buses, cars, motorcycles, and bicycles. The long rigid body is most useful when wheel depth or rim openings make a short chuck hard to align.
Why the Dual-Head Design Helps on Dual Wheels
Dual-wheel assemblies often place one valve in a position that is easy to see and another deeper between or behind the wheels. The straight foot is intended for inner tires and other recessed valves, while the 30-degree reverse head gives you another approach angle for outer wheels.
This does not guarantee a perfect fit on every wheel. Valve-stem direction, rim opening size, extensions, and wheel covers can change access. Still, the two-head layout gives you more options than a single straight chuck when you are working around dually hardware.
Extended Reach, Brass Build, and Rubber Grip
The 12-inch lengthened air rod is the defining feature. It lets your hand stay farther outside the wheel while the chuck reaches toward the valve stem, which can reduce awkward wrist angles on inner duals.
For the reviewed LTAC110A version, the current listing describes a brass body, zinc alloy air nozzle, solid brass quick plug, and rubber grip. The 6.7-ounce weight keeps the tool relatively light for its reach, while the grip gives you a broader surface to hold when you are pushing the head onto a valve.
The rigid design is useful for reach, but it is less flexible than a hose-style chuck. If your valve is behind a tight obstruction that requires a sharp bend, a flexible inflator hose may be easier to position.
Closed-Flow Operation and One-Hand Control
A closed-flow chuck is designed to stop air from flowing through the chuck when it is not connected to a valve core. With this LUMITECO, air passes when the head is engaged with the valve and shuts off when the chuck is removed.
That design is convenient on an active air line because you are not continuously venting compressor air between tires. It should not be read as a promise of zero air loss from the tire during every connection or disconnection. A poor angle, worn valve stem, or incomplete engagement can still create a brief hiss or leak.
How Easy the LUMITECO Air Chuck Is to Use
Setup is simple once your fittings match. Apply thread-seal tape where appropriate on threaded pneumatic connections, install the quick plug if your system uses a compatible coupler, and make sure the connection is tight before pressurizing the line.
- Choose the straight or angled head based on the valve position.
- Push the chuck firmly onto the Schrader valve stem and align it so the internal threads can engage cleanly.
- Follow the product instructions to seat the chuck securely and minimize leakage.
- Inflate while monitoring pressure with an appropriate gauge.
- When finished, bring the chuck back into alignment with the valve stem and remove it without forcing the stem sideways.
Pro Tip: Before pressurizing the air line, test which head reaches each dually valve most naturally. A clean, straight approach reduces side load on the valve stem and usually makes engagement easier.
[Products Worth Considering]
This brass air chuck adapter converts a screw-on inflator connection into a lock-on quick connect for hands-free, no-leak tire inflation. Clip the chuck onto Schrader valve stems and lock it in place to simplify inflating car, bike, and motorcycle tires. Built for durability with a corrosion-resistant brass body and strong quick operation.
EVOULTES 2-pack closed ball tire chucks lock onto Schrader valves to help you inflate tires hands-free. The set includes both chucks with quick plug compatibility and a 2-way connection approach for easy setup to your air line or compressor. Durable metal construction supports reliable use for cars, trucks, RVs, bikes, and other Schrader-valve tires up to 250 PSI.
How It Performs in Real Use
For Dually Trucks
This is the use case that best matches the design. The extended rod can reach past the outer wheel toward an inner valve, while the second head gives you another angle for the outer tire. The benefit is less repositioning compared with a short single-head chuck.
For RVs, Trailers, and Buses
Larger vehicles often combine deep wheel openings with dual-wheel layouts. The same reach advantage applies here, especially when the valve sits farther from the outer face of the wheel. You should still confirm that the rigid chuck can physically clear your specific wheel opening.
For Cars, Motorcycles, and Bicycles
The chuck is listed for Schrader valves beyond heavy vehicles, so it can also serve common car, motorcycle, and bicycle tires that use Schrader stems. On easy-to-reach valves, though, the 12-inch body may be more tool than you need, and a compact chuck can be quicker to handle.
For Garage or Fleet Air Lines
The included male quick plug is useful when your shop line already uses a matching female quick coupler. Closed-flow operation also makes sense on a pressurized line because the chuck is intended to stop supply-air flow when it is off the valve.
Compatibility and Safety
This is a pneumatic tire-service tool, so connection quality matters. Check the chuck, quick plug, coupler, hose, and valve stem for damage before use, and do not exceed the limits of your compressor, hose, fittings, tire, or vehicle requirements. Use the vehicle placard or other approved tire-pressure specification rather than guessing at a target pressure.
The current Amazon listing also carries a California Proposition 65 warning for lead and lead compounds. If that warning affects your purchase or handling decision, review the current warning and product information before use.
Because this chuck does not provide a pressure reading, pair it with an appropriate gauge or inflator gauge. Stop if the chuck will not seat cleanly instead of forcing it against a bent, damaged, or inaccessible valve stem.
Pros and Cons
Pros
- 12-inch extended rod is purpose-built for hard-to-reach and inner dual-wheel valves.
- Straight and 30-degree reverse heads cover more valve angles than a single-head chuck.
- Closed-flow design shuts off supply air when the chuck is not engaged.
- Brass body, rubber grip, and included brass quick plug create a practical garage-ready package.
- Includes thread-seal tape, so you have the basic installation pieces in the box.
Cons
- No built-in pressure gauge or digital display.
- Rigid 12-inch reach may be awkward where a flexible hose is the better shape.
- Wheel and valve geometry still determine whether either head can seat cleanly.
Is It Worth the Price?
The LUMITECO makes the most sense as a value-focused specialty tool rather than an all-in-one inflator. You are paying for access, dual-head flexibility, a closed-flow connection, and the included quick plug and thread-seal tape, not for a gauge, trigger, hose, or compressor.
It is worth considering if a short chuck regularly makes your dually or RV inflation work frustrating. It is not the best fit if your real need is pressure measurement, a flexible hose, or an integrated inflator tool.
How It Compares to Alternatives
The Milton S-693-12 is a close alternative if you want another 12-inch extended, dual-head, closed-style chuck with 1/4-inch FNPT. AstroAI also sells dual-head brass air chucks in different flow and pack configurations, which may suit buyers who want a different connection style or quantity.
The LUMITECO is especially convenient if you want the reviewed 12-inch handle version with the quick plug and thread-seal tape already included. Compare head geometry and your air-line connection first, because those details matter more than brand name when access is tight.
Frequently Asked Questions
Does the LUMITECO 12″ air chuck fit standard 1/4-inch air-compressor connections?
It has a 1/4-inch FNPT connection and includes a standard 1/4-inch male quick plug. Your compressor or hose still needs a matching fitting or female quick coupler.
Can it inflate motorcycle and bicycle Schrader valves?
Yes. LUMITECO lists the chuck for Schrader valves on bikes, motorcycles, cars, trucks, RVs, buses, and other compatible tires. The long rigid body is most valuable when access is difficult.
What does closed-flow mean on this air chuck?
Closed-flow means the chuck is designed to shut off supply-air flow when it is not engaged with a valve core. Air is allowed through when the chuck is properly connected to the tire valve.
Does it measure tire pressure?
No. The LUMITECO is an air chuck, not a pressure gauge. You need a separate gauge or compatible inflator gauge to verify the tire pressure while or after inflating.
What comes in the package?
The verified listing describes one 1/4-inch FNPT extended-reach dual-head tire chuck, one standard male quick plug, and thread-seal tape. Package contents can change, so check the current listing before ordering.
Are there other LUMITECO size variants?
The verified Amazon variation menu showed a 12-inch version with handle, a 13-inch zinc-alloy option, and a 14-inch solid-brass option. This review is specifically about ASIN B0BX8VF87V, the 12-inch handle version.
Does the product have a California Proposition 65 warning?
Yes. The current Amazon listing includes a Proposition 65 warning related to lead and lead compounds. Review the current warning if exposure information is important to your buying or handling decision.
Is a specific manufacturer warranty stated?
A specific written manufacturer warranty term was not clearly stated in the verified product details. Check the current Amazon listing and seller or manufacturer terms before buying if warranty coverage is a priority.
The Bottom Line
The LUMITECO 12″ Extended Reach Dual Head Air Chuck is a practical buy for dually, RV, trailer, and garage users who need more reach than a short chuck provides. Its main strengths are the 12-inch rigid reach, dual-head geometry, closed-flow design, and included connection hardware, while its main limitation is the lack of built-in pressure measurement. Skip it if you need an all-in-one inflator or a flexible hose-style tool instead.
