Reaching an inner dually valve can turn a simple pressure check into an awkward job, especially when a short chuck cannot line up with the stem. The SAFELIFE 16-1/4″ Extended Dual Head Air Chuck addresses that problem with a long body, straight outer-wheel head, and 30° reverse head for harder-to-reach valves. Its closed-flow design and push-on locking action are useful for truck, RV, and bus inflation setups, although you still need to confirm that its female 1/4-inch NPT connection matches your air-line hardware. This review breaks down those strengths and limitations so you can decide whether the extra reach is useful for your setup.
Quick Verdict
Rating: 8/10, based on verified specifications and buyer-use analysis
Best For: Semi-truck, dually, RV, and bus owners who need extra reach for recessed or awkward valve stems.
Bottom Line: The 16-1/4-inch reach, dual-head layout, and closed-flow construction make this SAFELIFE chuck well suited to dual-wheel inflation. Its main tradeoff is compatibility: the female 1/4-inch NPT inlet must be connected to the correct male fitting or quick-connect hardware, and the long body is more tool than many ordinary passenger-car tires require.
SAFELIFE Air Chuck Specs at a Glance
| Specification | Detail |
|---|---|
| Brand | SAFELIFE |
| Product Type | Extended dual-head tire air chuck |
| Overall Length | 16-1/4 inches |
| Head Design | Straight head plus 30° reverse head |
| Air Inlet | Female 1/4-inch NPT (FNPT) |
| Flow Type | Closed flow |
| Construction | Brass body/core construction, zinc-alloy nozzle, rubber grip |
| Listed Weight | 12 ounces |
| Listed Package Dimensions | 15.43 x 2.87 x 0.63 inches |
| Package Configuration | 2-piece air-chuck package; listing states quick-plug hardware is included |
| Primary Compatibility | Semi trucks, dually tires, RVs, buses, and other compatible tire valves |
| Main Use | Reaching inner, outer, recessed, or awkwardly positioned tire valve stems |

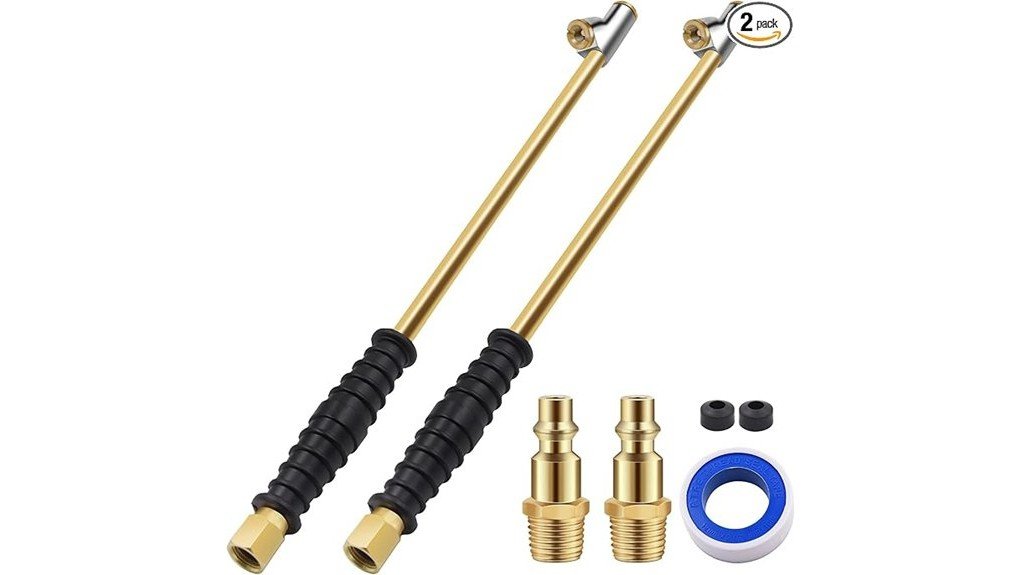

What Is the SAFELIFE 16-1/4″ Extended Dual Head Air Chuck?
The SAFELIFE air chuck is an extended tire-inflation attachment designed primarily for vehicles where valve access is more difficult than on a typical single-wheel passenger car. Its 16-1/4-inch overall length lets you reach farther into dual-wheel assemblies without putting your hand deep between the wheels.
The two chuck positions serve different valve locations. The straight head is intended for outer-wheel access, while the 30° reverse chuck can approach inner, single-wheel, or recessed stems from another angle. Both ends use a push-on locking design rather than requiring you to screw the chuck onto the valve stem.
This review is based on verified listing specifications, product-design analysis, and practical compatibility considerations. It should not be read as a claim that the Editorial Team performed a hands-on durability or long-term pressure test.
Key Takeaways
- The 16-1/4-inch length is the product’s biggest advantage when you need to reach an inner dually valve.
- A straight head and 30° reverse head give you two approach angles for different wheel positions.
- The closed-flow design is intended to allow airflow when the chuck is engaged and stop it when removed.
- Brass construction, a zinc-alloy nozzle, and a rubber grip provide a more substantial build than a basic lightweight chuck.
- The inlet is female 1/4-inch NPT, so you need compatible male-threaded or quick-connect hardware between the chuck and your air system.
- This is an air chuck, not a complete pressure-reading system. Use a suitable gauge or inflator gauge to verify tire pressure.
Before You Buy: Do not assume that the words “1/4-inch NPT” mean the chuck will attach directly to every 1/4-inch air hose. The chuck has a female 1/4-inch NPT inlet, so confirm the thread type, male fitting, quick plug, and coupler used by your compressor or inflator setup.
Who Should Buy It?
Best For
- Truck owners or technicians who regularly inflate inner and outer dually tires.
- RV and bus owners dealing with recessed or difficult valve-stem positions.
- Garage or roadside users who want a long closed-flow chuck with two head angles.
Skip If
- You only inflate easily accessible passenger-car tires and prefer a smaller chuck.
- Your air system does not support a compatible 1/4-inch NPT fitting or adapter.
- You want a chuck with its own built-in pressure gauge rather than a separate gauge or inflator gauge.
[Products Worth Considering]
This EVOULTES 2-way air chuck set includes a dual head closed flow air chuck and a ball head chuck for versatile tire inflation. It connects easily to air lines, inflator gauges, and compressors using 1/4" NPT threads and includes two 1/4" male quick plugs for fast coupling. Built with durable metal construction and sealed threads using Teflon tape to help prevent air leaks, it’s ideal for inflating Schrader valve tires across cars, bikes, and motorcycles.
The LUMITECO 12" extended reach dual head air chuck is designed for hard-to-reach truck, RV, and bus dual wheels, making tire inflation quick and easier. It features a straight foot lock-on chuck for inner tires and a 30° reverse chuck for outer valves, with a closed-flow design that only allows air when engaged. Built with a brass body and ergonomic rubber grip, it connects easily using a 1/4" FNPT thread plus a standard quick plug for compressor-ready inflation.
SAFELIFE dual head air chucks feature an extended 16-1/4-inch overall length to reach awkward valve locations on dually tires. The straight and 30-degree reverse ends help inflate outer and inner valves on trucks, RVs, buses, and more. A lock-on design with closed flow operation provides a strong seal and controlled airflow when engaged. Heavy duty brass construction with a 1/4" FNPT quick plug makes it easy to connect to compressors and inflator setups.
Dual-Head Design and Valve Access
The main reason to choose this SAFELIFE chuck over a short single-head design is valve access. On a dually setup, an inner wheel valve can sit well beyond the outer wheel face. Reaching it with a short chuck may force you to work through a wheel opening or hold the fitting at a poor angle.
The 16-1/4-inch body gives you more working distance. The straight head is designed for outer-wheel valves, while the 30° reverse head provides another approach for an inner or hard-to-reach stem. You can choose the head that lines up more naturally instead of forcing the stem or hose into an awkward position.
That extra length is less valuable on an ordinary car where all four valve stems are easy to reach. For those vehicles, a compact locking chuck can take up less space in a small tool bag.
Lock-On Seal Performance and Closed-Flow Operation
Both chuck heads use a lock-on inner-thread design that engages the valve area when you push the head firmly onto the stem. According to the product instructions reflected in current listings, you push the chuck onto the valve and lean it slightly to establish the seal. When you finish, return it to a straighter position and pull it off.
The closed-flow design is another important buying point. Air is intended to flow when the chuck is engaged with the valve core and stop when you remove it. That makes it suitable for compressed-air setups that need the chuck to remain closed between tires rather than continuously venting air.
A good seal still depends on alignment and valve condition. A worn valve, damaged valve core, poor angle, incompatible stem, or incomplete engagement can still cause leakage. The chuck should reduce unnecessary air loss when connected correctly, but no chuck can compensate for damaged tire hardware.
Brass Construction, Nozzle, and Rubber Grip
The SAFELIFE uses a substantial metal construction centered around brass components, with a zinc-alloy nozzle and a rubber-covered grip. Brass is useful for an inflation fitting because it provides durable threads and corrosion resistance in normal shop and roadside conditions.
The rubber grip gives you a larger non-slip area to hold than a bare narrow metal tube. That can be useful when you are reaching through a dually wheel opening or working with gloves.
The tradeoff is size. A 16-1/4-inch chuck will naturally occupy more storage space than a compact tire chuck. That is a reasonable compromise when extended reach is the reason you are buying it, but it may be unnecessary for a small emergency inflation kit.
Connection and Compatibility
The air inlet uses female 1/4-inch NPT threads. This describes the threaded connection at the chuck, not the inside diameter of an air hose and not a guarantee of universal direct compatibility.
Your compressor or inflator setup needs the correct male 1/4-inch NPT fitting, quick plug, coupler, or other compatible hardware. The product listing indicates quick-plug hardware is supplied, but you should still compare the included fitting with the coupler standard already used on your air line.
The chuck is intended for common tire valve applications used on trucks, RVs, buses, dually setups, and similar vehicles. The head style may also engage compatible Schrader-type stems on smaller vehicles, but the extended length can be excessive when the valve is already easy to reach.
Pro Tip: Before attaching the chuck to your compressor, identify the coupler standard already installed on your air hose. Matching the thread size alone is not enough if the quick-connect plug and coupler profiles do not match.
Setup Tips Before First Use
- Inspect the chuck and fittings. Check the threaded inlet, quick-connect parts, both heads, and rubber grip for visible damage.
- Confirm the connection. Make sure your male 1/4-inch NPT fitting or supplied plug is compatible with the rest of your air-line system.
- Seal threaded fittings correctly. Follow the fitting or compressor manufacturer’s guidance for thread sealant and installation.
- Choose the correct head. Use the straight or reverse head according to the valve’s position rather than forcing an awkward angle.
- Push on firmly. Seat the chuck on the valve and follow the product’s push-on and slight-angle technique for a secure connection.
- Verify pressure separately. Use an appropriate pressure gauge or inflator gauge rather than estimating inflation by feel or time.
Compatibility and Tire Inflation Safety
The air chuck is only one part of a safe inflation setup. Your hose, fittings, compressor, gauge, valve stem, and other hardware should all be suitable for the pressures involved. Do not use damaged fittings, cracked hoses, or a chuck that will not seat securely.
For vehicles with a manufacturer tire-pressure placard, use the recommended cold tire inflation pressure shown on the vehicle label or in the owner’s manual. The pressure molded on the tire sidewall is not the vehicle manufacturer’s normal recommended inflation pressure.
For the most accurate check, measure tire pressure when the tires are cold. On heavy vehicles, commercial vehicles, altered tire setups, or applications where the correct pressure is uncertain, follow the vehicle, tire, fleet, or qualified tire-service guidance that applies to your specific setup.
How It Performs in Real Use
For Semi-Truck Dually Tires
This is the use case that makes the 16-1/4-inch length most meaningful. You can use the long body to approach an inner valve without placing your hand as far into the wheel assembly. The two head positions also give you more flexibility when inner and outer valves face different directions.
For RV Tires
Large RVs can combine dual rear wheels with wheel covers or recessed valve positions. The extended chuck can reduce the need to work with a short fitting inside a confined opening, provided your valve stems are accessible to one of its two head angles.
For Bus, Fleet, or Shop Work
A brass-bodied, rubber-gripped chuck makes sense in a garage where an inflation attachment may be handled repeatedly. The closed-flow design is also practical when you move from tire to tire because the chuck is intended to stop airflow after it is disconnected.
For Passenger Cars
The SAFELIFE can be useful when the valve type and connection are compatible, but it is not optimized around compact storage. If your car valves are easy to reach, the 16-1/4-inch body offers less practical advantage than it does on a truck or dually.
Common Mistakes to Avoid
- Buying it because you have a “1/4-inch hose” without checking the actual NPT fitting and quick-connect standard.
- Holding the chuck at a poor angle and assuming the resulting hiss means the tool is defective.
- Using the air chuck as if it were a pressure gauge. It controls the air connection but does not replace pressure measurement.
- Inflating a vehicle tire to the maximum pressure printed on the tire instead of checking the vehicle’s recommended cold pressure.
- Forcing the head onto a damaged, bent, or incompatible valve stem.
Pros and Cons
Pros
- 16-1/4-inch reach is useful for recessed and inner dually valves.
- Straight and 30° reverse heads cover two common approach angles.
- Closed-flow operation is practical for compressed-air inflation systems.
- Brass construction and a rubber grip provide a solid, service-oriented build.
- Two-piece package can be useful for keeping a spare or equipping more than one setup.
Cons
- Female 1/4-inch NPT connection requires compatible fittings and is not a direct match for every air hose.
- The long body is less compact than needed for many passenger-car tire valves.
- No integrated pressure gauge, so pressure must be checked with separate compatible equipment.
Is It Worth the Price?
The SAFELIFE makes the most sense when you are paying for reach, dual-head access, and a heavier-duty construction rather than simply buying the smallest chuck available. For dually, RV, bus, and truck owners, those features solve a real access problem that a basic short chuck may not handle as easily.
The two-piece configuration can also add value if you want one chuck in a garage and another with a service kit. The purchase is harder to justify if you only maintain ordinary passenger-car tires with exposed stems, since a smaller compatible chuck may do the same basic job while taking up less space.
[Products Worth Considering]
This tire air chuck with clip adapter helps you connect a vehicle inflator nozzle securely for faster, easier tire inflation. The brass locking design aims to prevent leaks and keeps the connection stable while you fill tires. Ideal for use with compatible air compressors and pumps with an 8mm connection.
The Milton S-693 straight foot dual head air chuck is designed for accurate tire pressure checks and quick, secure valve-core engagement with lock-on threads on both ends. With a 1/4" FNPT connection and a maximum 150 PSI rating, it’s built for use on inner duals and common vehicle tires, including trucks and RVs.
This brass tire air chuck with clip adapter locks securely to the valve stem for a tight seal with minimal leakage. Simply press the locking clip, push or twist the nozzle onto the tire valve, and release the clip to keep it in place during inflation. Designed for efficient, convenient connection between a vehicle inflator hose and common tire valves, with a compatible 8mm bore hose end.
How It Compares to Alternatives
The JACO Lightning T-Series is worth comparing if you prefer a self-locking quick-connect style and an open-flow design. By contrast, the SAFELIFE uses a long dual-head format and closed-flow operation, which makes it more directly focused on reaching dually and recessed valves.
The LUMITECO 12-inch Extended Reach Dual Head is another closed-flow option with a shorter body, while similar 12-inch GODESON dual-head chucks may appeal if you want extended reach without going to 16-1/4 inches. The SAFELIFE stands out when maximum reach is one of your main buying priorities.
[Products Worth Considering]
The Milton S-693-12 straight foot dual head air chuck provides extended 12-inch reach for efficiently inflating inner dual tires on trucks and semi trucks. It has 1/4" female NPT threading and locks securely onto valve core threads for reliable sealing up to 150 PSI. Designed for use on an air line with a cushioned grip handle for comfortable operation.
The AstroAI 2 pack air chucks provide a heavy-duty, closed-flow locking design that helps keep air flowing during inflation while securely attaching to the valve stem. Built with 250 PSI rated brass components and compatible with Schrader valves, they feature 1/4" female NPT threads for a wide fit with common inflators. The straight tip and locking clip make filling tires and monitoring pressure more convenient.
This dual head and ball air chuck set provides closed-flow tire inflation that routes air only through the chuck engaged with the valve. It includes both dual-head and ball-head chucks plus quick plug fittings for easy, fast connections to air lines and compressors. Built for reliable, leak-resistant operation, it’s ideal for filling Schrader valves on bikes, motorcycles, cars, trucks, and more.
Frequently Asked Questions
What fitting connects to the SAFELIFE 1/4-inch FNPT inlet?
The chuck has a female 1/4-inch NPT inlet, so it needs a compatible male 1/4-inch NPT fitting or quick plug. You should also confirm that the quick plug profile matches the female coupler already installed on your hose.
Can the SAFELIFE chuck work with Schrader tire valves?
Its tire-chuck design is intended for common compatible valve stems used on trucks, RVs, buses, and other vehicles. Confirm the actual stem style and fit before use, especially if you are adapting it to a vehicle outside its main heavy-duty use cases.
Why does the SAFELIFE air chuck have two heads?
The straight head is designed to approach outer-wheel valves, while the 30° reverse head provides another angle for inner or difficult stems. This is particularly useful on dual-wheel vehicles where both valves may not face the same direction.
Does air keep flowing when the chuck is removed?
The product uses a closed-flow design. It is intended to permit airflow while engaged with the valve core and shut off airflow after you remove it from the valve.
Does this air chuck measure tire pressure?
No integrated gauge is part of the chuck itself. Use it with an appropriate inflation setup and check pressure with a suitable tire-pressure gauge or inflator gauge.
Is the 16-1/4-inch length useful on ordinary cars?
It can work in a compatible setup, but its main advantage is reaching valves that are recessed or difficult to access. A smaller chuck may be easier to store if your passenger-car valve stems are already exposed and easy to reach.
Who should skip the SAFELIFE Extended Dual Head Air Chuck?
You may want a different chuck if you need an integrated gauge, use an incompatible air-line connection, or only inflate easy-to-reach passenger-car valves. This SAFELIFE model is most useful when its extended reach and two head angles solve a genuine access problem.
The Bottom Line
The SAFELIFE 16-1/4″ Extended Dual Head Air Chuck is a strong fit for semi-truck, dually, RV, and bus owners who need more reach than a compact tire chuck provides. Its biggest strengths are the straight and 30° reverse heads, closed-flow design, and durable metal construction, while the main limitation is the need to confirm your 1/4-inch NPT and quick-connect compatibility. If recessed tire valves are a regular problem for you, the SAFELIFE earns its 8/10 editorial verdict; if all your valves are easy to reach, a smaller chuck may be more practical.
Ready to Buy?
Check the latest product details and confirm your air-line connection before you decide.
