A tire chuck can look universal until its threads, coupler, or valve fit fails at the exact moment you need air. The LUMITECO 2-Pack Ball Foot Air Chuck is built for standard Schrader valves and 1/4-inch FNPT air-line connections, with a closed-flow valve that limits airflow until the chuck engages the valve stem. This review explains its verified specifications, setup requirements, useful applications, and main limitations. Its compact design is convenient, but you still need to confirm your hose fitting and valve type before buying.
Quick Verdict
Rating: 8/10, recommended with compatibility checks
Best For: Drivers, riders, and workshop users who need a compact closed-flow chuck for Schrader valves and 1/4-inch FNPT air systems.
Bottom Line: The set gives you two compact chucks, two quick plugs, and thread-sealing tape in one package. Its closed-flow design helps control air loss, but it will not directly fit Presta valves or every air-line coupler.
| Specification | Detail |
|---|---|
| Brand | LUMITECO |
| Model / part number | LTAC117A |
| Product type | Ball-foot tire air chuck set |
| Flow design | Closed flow with a built-in shut-off valve |
| Air inlet | 1/4-inch female NPT |
| Maximum listed pressure | 300 PSI |
| Valve compatibility | Standard Schrader valves |
| Package contents | 2 closed ball air chucks, 2 male quick plugs, and 1 roll of Teflon tape |
| Package dimensions | 6.26 x 2.64 x 0.87 inches |
| Listed item weight | 3.87 ounces |
| Typical uses | Tire inflator gauges, compressor hoses, and compatible air-tool lines |
Key Takeaways
- The LUMITECO set uses a closed-flow valve, so air passes only after the chuck engages a Schrader valve stem.
- Each chuck has a 1/4-inch female NPT inlet and can connect through the included male quick plug or a compatible threaded setup.
- The package includes two chucks, two quick plugs, and one roll of Teflon tape.
- The listed maximum pressure is 300 PSI, but every hose, gauge, coupler, and compressor in your setup must also meet the required pressure rating.
- The ball-foot design is compact and useful around many vehicle wheels, but it does not directly support Presta valves.
What Is the LUMITECO Closed-Flow Air Chuck?

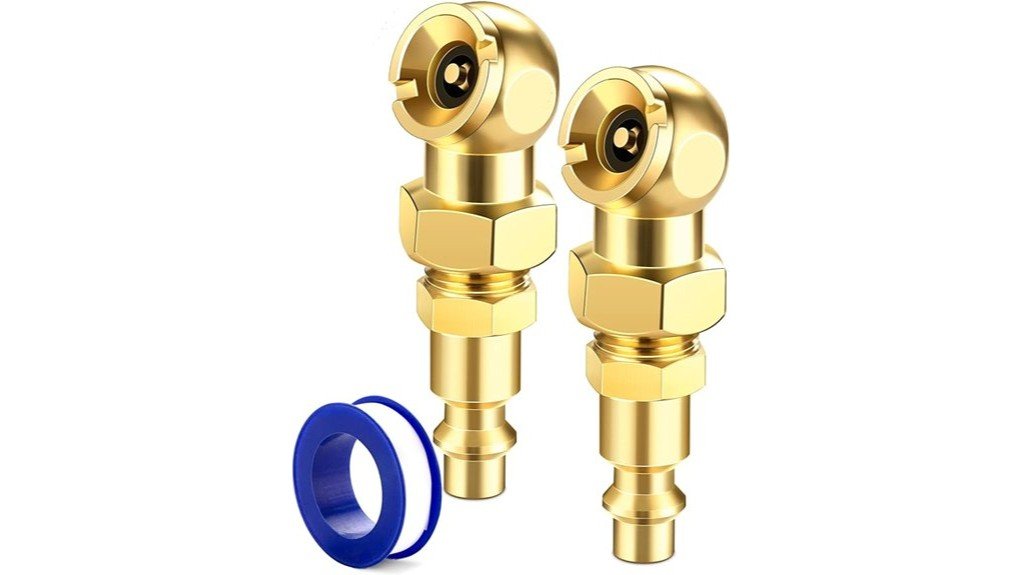

The LUMITECO LTAC117A is a two-pack of compact tire chucks that connect an air hose or inflator gauge to a Schrader valve stem. Each chuck has a ball-foot head, a 1/4-inch female NPT inlet, and a closed-flow mechanism.
The closed-flow design matters when your inflator or gauge expects the chuck to stop airflow while it is off the tire. Air begins moving after you press and seat the chuck on the valve. This setup can reduce unnecessary air discharge compared with an open-flow chuck that remains open whenever the air line is pressurized.
The package also includes two male quick plugs and thread-sealing tape. That combination gives you a choice between a quick-connect air-line setup and a direct threaded connection, provided all threads and couplers match.
Who Should Buy It?
Best For
- You use a compressor hose, inflator gauge, or air line with a compatible 1/4-inch NPT connection.
- Your car, motorcycle, truck, bus, or bicycle uses standard Schrader tire valves.
- You want two compact chucks for a garage setup, service kit, or backup tool bag.
Skip If
- You need direct Presta-valve compatibility without an adapter.
- Your hose uses a different thread size or an incompatible quick-coupler standard.
- You prefer a lever-style clip-on chuck that stays attached without hand pressure.
Before You Buy: Confirm both sides of the connection. The tire must use a Schrader valve, and your hose, gauge, or inflator must accept a 1/4-inch female NPT chuck or the included male quick plug with a matching coupler.
[Products Worth Considering]
This brass air chuck adapter converts a screw-on inflator connection into a lock-on quick connect for hands-free, no-leak tire inflation. Clip the chuck onto Schrader valve stems and lock it in place to simplify inflating car, bike, and motorcycle tires. Built for durability with a corrosion-resistant brass body and strong quick operation.
This LUMITECO closed flow ball air chuck set helps prevent air loss by passing air only when the chuck locks onto the tire valve. It features a built-in shut-off valve and quick-connect compatibility for fast, reliable inflating on cars, motorcycles, bikes, and trucks. With a universal 1/4 inch FNPT inlet and secure sealing on Schrader valves, it’s ideal for tire gauges, inflator hoses, and compressor attachments.
The AstroAI 2 pack air chucks provide a heavy-duty, closed-flow locking design that helps keep air flowing during inflation while securely attaching to the valve stem. Built with 250 PSI rated brass components and compatible with Schrader valves, they feature 1/4" female NPT threads for a wide fit with common inflators. The straight tip and locking clip make filling tires and monitoring pressure more convenient.
How the Closed-Flow Valve Controls Air Loss
A closed-flow chuck contains a shut-off valve that remains closed when the chuck is not on a tire. When you press the ball-foot head against a Schrader valve, contact opens the airflow path. Removing the chuck closes it again.
This design helps keep a pressurized air line from venting continuously between tires. It also gives you more control during pressure checks because the chuck does not behave like an always-open nozzle.
You can still lose a small amount of tire pressure during attachment or removal. A worn valve core, damaged rubber seal, angled connection, or mismatched coupler can also cause leakage. The chuck reduces avoidable airflow, but correct seating and good valve condition still matter.
LUMITECO Features That Matter Most
Ball-Foot Access
The short ball-foot head gives you a direct connection to a standard valve stem. Its compact shape can be easier to position than a long dual-head chuck when wheel space is limited. You still need enough room to press the head squarely against the valve.
This design works best when you can reach the stem with your hand. For deeply recessed valves, dual-wheel trucks, or awkward wheel covers, a longer straight or dual-head chuck may offer better access.
1/4-Inch Female NPT Connection
Each chuck uses a 1/4-inch female National Pipe Thread inlet. You can thread the chuck onto a compatible male fitting or install one of the included male quick plugs for use with a matching female coupler.
NPT threads are tapered, so the connection tightens as you turn it. The included tape can help seal the threaded joint, but excess tape can tear loose or interfere with assembly. Keep tape away from the first thread to reduce the chance of loose fragments entering the air path.
Two Chucks and Two Quick Plugs
The two-pack gives you flexibility that a single chuck does not. You can keep one attached to a garage inflator and store the second with another gauge or compressor kit. You can also replace one without taking your whole setup out of service.
The included quick plugs are useful only when they match your coupler profile. A 1/4-inch thread size does not guarantee that every quick-connect plug will lock into every coupler, since common plug profiles can differ.
300 PSI Listed Maximum
The product listing states a maximum pressure of 300 PSI. That figure describes the chuck’s listed limit, not a recommended tire pressure. Inflate every tire to the vehicle, tire, or equipment manufacturer’s specified pressure.
Your complete air system is limited by its lowest-rated part. Never assume the chuck’s 300 PSI listing makes a hose, gauge, coupler, or compressor safe at the same pressure.
Fit and Compatibility
The chuck connects directly to standard Schrader valves, the common spring-loaded tire valves used on many cars, motorcycles, trucks, buses, and bicycles. A Presta bicycle valve needs a suitable adapter before this chuck can connect.
Vehicle type alone does not guarantee access. Some wheels place the valve stem behind a hubcap, close to a spoke, or deep inside a dual-wheel arrangement. Check the available hand space and stem angle before choosing a compact ball-foot chuck.
On the air-line side, confirm the 1/4-inch NPT thread and quick-coupler style. If your inflator uses a crimped hose end, proprietary connector, or smaller thread, this set may require another adapter or may not be suitable.
Pro Tip: Test the connection with low line pressure after assembly. Apply soapy water around the threaded joint and look for growing bubbles, then depressurize the line before tightening or resealing it.
How It Performs in Real Use
Routine Car Tire Inflation
For an accessible car valve stem, the short ball-foot head offers a simple press-on connection. The closed-flow valve helps stop line airflow between tires, which makes it practical for checking and adjusting several tires in one session.
You must hold the chuck squarely against the stem for the best seal. If the head sits at an angle, air may hiss around the valve instead of entering the tire efficiently.
Motorcycle and Bicycle Schrader Valves
The compact head can work well where a larger inflator attachment feels bulky. It is suitable only when the wheel uses a Schrader valve and you can reach the stem without forcing the chuck against spokes or brake parts.
Many performance and road bicycles use Presta valves, so check before buying. An adapter may solve the valve mismatch, but it adds another joint that must seal correctly.
Truck, Bus, and Trailer Tires
The 300 PSI listed maximum gives the chuck enough stated capacity for many air-system applications, but access is the bigger concern on heavy vehicles. A ball-foot chuck may work on exposed stems, while recessed inner dual-wheel stems often need a longer dual-head design.
Always follow the tire or vehicle pressure specification. The tool’s maximum rating does not tell you the correct inflation pressure.
Garage or Workshop Backup
A two-pack makes sense when you maintain more than one air setup. One chuck can stay on a tire gauge while the other serves as a spare or connects to a second hose. The small package also stores easily in a drawer or compressor accessory case.
Long-term performance depends on clean threads, an undamaged sealing surface, and dry storage. Replace the chuck if the head, internal valve, or threaded body becomes damaged.
Setup Tips and Common Mistakes
- Depressurize the hose first. Disconnect the compressor or release line pressure before installing the chuck or quick plug.
- Confirm thread direction and size. The chuck has a 1/4-inch female NPT inlet, so it needs a compatible male fitting.
- Apply sealing tape carefully. Wrap tape in the tightening direction and keep it back from the first thread.
- Tighten without overforcing. NPT threads seal through taper and sealant. Excess force can damage the fitting or make later removal difficult.
- Check the quick-coupler profile. The included plug must match the female coupler on your air line.
- Seat the chuck straight. Press the ball-foot head squarely onto the Schrader valve to reduce leakage.
- Check tire pressure with a reliable gauge. The chuck transfers air but does not measure pressure by itself.
Compatibility and Safety
This chuck is an air-line connector, not a pressure regulator or tire gauge. Use a suitable gauge and follow the pressure shown on the vehicle placard, equipment label, or manufacturer instructions. Do not use the 300 PSI product limit as an inflation target.
Inspect the chuck, hose, fittings, and valve stem before each use. Stop if you see cracked parts, damaged threads, a loose coupler, or uncontrolled leakage. Wear eye protection when working with pressurized air, and never place your face directly over a pressurized fitting.
The Amazon listing includes a California Proposition 65 warning for exposure to lead and lead compounds. Follow the product label, wash your hands after handling, and keep the parts away from children.
Pros and Cons
Pros
- Closed-flow valve stops line airflow while the chuck is off the tire.
- Compact ball-foot head suits many accessible Schrader valve stems.
- Two chucks let you equip separate hoses or keep a spare.
- Included male quick plugs support a compatible quick-connect setup.
- Teflon tape is included for sealing the threaded joints.
Cons
- It does not directly fit Presta valves.
- The included quick plugs may not match every coupler profile.
- The short head may not reach deeply recessed or inner dual-wheel valve stems.
Is It Worth the Price?
The LUMITECO set is a practical value for buyers who need two closed-flow ball-foot chucks rather than one premium specialty chuck. The package combines the chucks, quick plugs, and sealing tape, so you can assemble two compatible air-line connections without buying each small part separately.
You get the most value when both your valves and couplers already match. It is less attractive if you need Presta adapters, a long dual-head reach, a built-in pressure gauge, or a specific quick-connect profile that differs from the included plugs.
For routine garage use, it is worth considering if compact size, closed-flow operation, and a two-pack matter more than clip-on convenience.
[Products Worth Considering]
Inflate Presta and Schrader bike and car tires with one compressor attachment, including tubeless setups. The digital gauge lets you monitor 2–200 PSI readings in 0.1 PSI increments with ±2 PSI accuracy, while the adjustable lever and built-in bleed button help you dial in precise pressure. Quick-connect coupler, hose, and a complete Presta service kit with spare cores and caps make it ready for fast maintenance.
This LUMITECO dual head and ball head air chuck set quickly connects to your inflator or compressor for efficient tire filling. Closed flow design shuts off air flow unless the chuck is engaged, helping reduce leakage during use. Includes dual head air chucks, ball chucks, male quick plugs, and Teflon tape for a convenient setup across many Schrader valve applications.
Upgrade your air setup with this LUMITECO 2-pack closed ball air chuck set featuring a shut-off design that releases air only when engaged. The locking clip-on style helps keep the chuck securely on the valve stem for quick, hands-free inflation. It connects easily via 1/4" FNPT threading with included quick plugs, making it convenient for cars, trucks, RVs, and other tire or Schrader valve uses.
How It Compares to Alternatives
The JACO Lightning L2 is another 1/4-inch female NPT closed-flow chuck to compare if you want a more specialized quick-connect design. A LUMITECO clip-on closed-flow chuck may suit you better when you want a lever or clip to hold the connector on the stem during inflation.
A tire inflator gauge with an attached hose and chuck is the better alternative when you need pressure measurement and airflow control in one tool. The LUMITECO two-pack makes the most sense when you already own the gauge, hose, or compressor and only need compact replacement chucks.
[Products Worth Considering]
This EVOULTES 2-way air chuck set includes a dual head closed flow air chuck and a ball head chuck for versatile tire inflation. It connects easily to air lines, inflator gauges, and compressors using 1/4" NPT threads and includes two 1/4" male quick plugs for fast coupling. Built with durable metal construction and sealed threads using Teflon tape to help prevent air leaks, it’s ideal for inflating Schrader valve tires across cars, bikes, and motorcycles.
EVOULTES 2-pack closed ball tire chucks lock onto Schrader valves to help you inflate tires hands-free. The set includes both chucks with quick plug compatibility and a 2-way connection approach for easy setup to your air line or compressor. Durable metal construction supports reliable use for cars, trucks, RVs, bikes, and other Schrader-valve tires up to 250 PSI.
The Milton S-693 straight foot dual head air chuck is designed for accurate tire pressure checks and quick, secure valve-core engagement with lock-on threads on both ends. With a 1/4" FNPT connection and a maximum 150 PSI rating, it’s built for use on inner duals and common vehicle tires, including trucks and RVs.
Frequently Asked Questions
What is included in the LUMITECO 2-pack?
The package includes two closed ball-foot air chucks, two male quick plugs, and one roll of Teflon tape. You receive enough parts to prepare two compatible chuck connections.
Does it fit every tire valve?
No. The chuck is designed for standard Schrader valves. A Presta valve needs a compatible adapter, and some recessed or dual-wheel stems may require a longer chuck.
What does closed flow mean?
Closed flow means an internal valve blocks air while the chuck is not engaged with a tire valve. Contact with the Schrader valve opens the airflow path during inflation.
Will the included quick plugs fit my compressor hose?
They fit only when your hose has a matching female quick coupler. Check the coupler profile as well as the 1/4-inch thread size because several quick-connect standards use similar dimensions.
Does the chuck measure tire pressure?
No. It only connects the air supply to the valve stem. You need a separate tire gauge or an inflator gauge to measure pressure accurately.
How should I use the included Teflon tape?
Wrap a small amount around the male NPT threads in the tightening direction. Keep the first thread clear, tighten the joint securely, and test for leaks before full-pressure use.
Who should choose a different air chuck?
Choose another design if you need direct Presta compatibility, a long dual-head reach, a built-in gauge, or a clip that stays attached without hand pressure. Those needs matter more than compact size.
The Bottom Line
The LUMITECO 2-Pack Ball Foot Air Chuck is a solid choice when you already have a compatible 1/4-inch NPT air setup and need compact closed-flow chucks for Schrader valves. Its main strengths are controlled airflow, useful package contents, and two-chuck value, while its main limits are valve, coupler, and reach compatibility.
Buy it for routine garage inflation and backup use. Skip it if you need a long dual-head chuck, direct Presta fit, or a hands-free clip-on connection.
