Reaching an inward-facing valve stem on a dually can turn a simple inflation job into an awkward one. The Milton S-690 dual-head air chuck gives you two opposing chuck heads, a 1/4-inch FNPT connection, and a 150 PSI maximum rating in a durable metal-and-brass body. The linked Amazon listing is a pack of 10, so it is aimed more at shops, fleets, and shared tool setups than at someone who needs only one chuck. This review explains the fit, advantages, limitations, and safe-use details you should check before buying.
Quick Verdict
Rating: 8.2/10
Best For: Tire shops, fleet garages, dually owners, and compressor users who need better access to Schrader valve stems.
Bottom Line: The S-690 is a sturdy, closed-type airline chuck that makes inward-facing and awkward Schrader stems easier to reach. Its main tradeoffs are the 10-piece package and the fact that it does not measure pressure or work with every inflator-gauge setup.
Key Takeaways
- The two opposing heads improve access to inner and outer Schrader valve stems, but they are used one at a time.
- The S-690 is a closed, sealing-type air chuck made for a compatible compressed-air line.
- Its 1/4-inch FNPT inlet requires a matching male NPT fitting or compatible airline connection.
- Milton lists a 150 PSI maximum working pressure, but your tire’s placard or manufacturer specification sets the correct inflation pressure.
- The linked Amazon ASIN is a 10-pack, which offers better value for professional or multi-station use than for a single home toolbox.
[Products Worth Considering]
The LUMITECO 12" extended reach dual head air chuck is designed for hard-to-reach truck, RV, and bus dual wheels, making tire inflation quick and easier. It features a straight foot lock-on chuck for inner tires and a 30° reverse chuck for outer valves, with a closed-flow design that only allows air when engaged. Built with a brass body and ergonomic rubber grip, it connects easily using a 1/4" FNPT thread plus a standard quick plug for compressor-ready inflation.
EVOULTES 2-pack closed ball tire chucks lock onto Schrader valves to help you inflate tires hands-free. The set includes both chucks with quick plug compatibility and a 2-way connection approach for easy setup to your air line or compressor. Durable metal construction supports reliable use for cars, trucks, RVs, bikes, and other Schrader-valve tires up to 250 PSI.
This dual head and ball air chuck set provides closed-flow tire inflation that routes air only through the chuck engaged with the valve. It includes both dual-head and ball-head chucks plus quick plug fittings for easy, fast connections to air lines and compressors. Built for reliable, leak-resistant operation, it’s ideal for filling Schrader valves on bikes, motorcycles, cars, trucks, and more.
Milton S-690 Specifications
| Specification | Detail |
|---|---|
| Brand | Milton Industries |
| Model | S-690 |
| Product type | Closed, sealing-type dual-head air chuck |
| Connection | 1/4-inch FNPT |
| Valve compatibility | Schrader valves |
| Maximum pressure | 150 PSI |
| Material | Solid metal alloy and brass |
| Approximate size | 6 inches long, 1-3/16 inches wide, and 5/8 inch high per chuck |
| Package quantity | 10 chucks in the linked Amazon listing |
| Country of manufacture | Made in the USA |
| Warranty | One-year limited manufacturer warranty listed by Amazon |
| Best use | Compressed-air tire service where valve access is tight or stems face different directions |

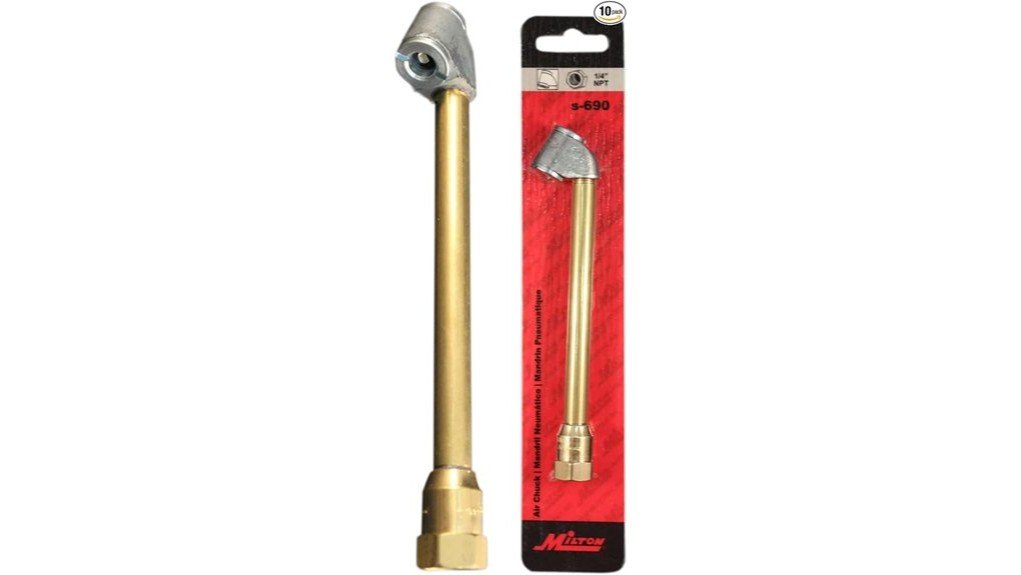

What Is the Milton S-690 Dual-Head Air Chuck?
The Milton S-690 is an airline attachment that directs compressed air into a Schrader valve. One head points forward and the other faces the opposite direction, giving you a better angle when an inner dually stem faces inward or a wheel opening limits hand access.
The two heads do not inflate two tires at once. You select the head that seats best on the valve stem, press or lock it onto the valve core threads, and use your air system to inflate the tire. Because the S-690 is a closed or sealing-type chuck, it is designed to hold air pressure in the airline when it is not connected to a valve.
The linked listing contains 10 chucks. That quantity suits service bays, maintenance departments, fleet kits, or buyers who want spares at several compressor stations.
Before You Buy: The S-690 is not a tire-pressure gauge, and Milton states that it is not intended for use with every Milton inflator gauge. Confirm that your air line or inflator accepts a closed-type chuck with a 1/4-inch FNPT inlet.
Who Should Buy It?
Best For
- Fleet and tire-service teams that can use a 10-pack across several work areas.
- Dually owners who need easier access to inward-facing inner valve stems.
- Compressor users with a compatible 1/4-inch male NPT airline fitting.
Skip If
- You need a built-in pressure gauge or trigger-style inflator.
- Your equipment uses Presta valves and you do not want to add an adapter.
- You need only one chuck and do not have a use for the remaining pieces.
Will It Fit Your Tire Valve and Air Line?
The tire side is straightforward: the S-690 is intended for standard Schrader valves. These are common on cars, trucks, motorcycles, trailers, and many bicycles. A Presta valve needs a suitable Schrader adapter, and the adapter must still allow the chuck to seat squarely.
The air-line side needs more attention. FNPT means female National Pipe Thread, so the chuck must screw onto a compatible 1/4-inch male NPT fitting. A quick-connect plug may be needed if your hose ends in a coupler rather than a male threaded outlet.
Also check the space around the valve. The opposing heads help with different approach angles, but the S-690 is not the longest extended-reach model. Deep wheel openings may still call for a 12-inch chuck.
Pro Tip: Test the chuck on every wheel position before putting the full 10-pack into service. A good setup should seat squarely without forcing the valve stem sideways.
Why the Dual-Head Design Saves Time
The S-690 does not increase your compressor’s airflow by itself. Its advantage is access. You can use the head that approaches the valve most directly, which reduces the time spent turning the chuck, reaching behind a wheel, or repositioning the hose.
This is most useful on dual-wheel trucks, trailers, and other setups where one valve faces outward and another faces inward. A clean, square connection can also reduce the short burst of air commonly lost while you search for the correct angle.
Actual inflation speed still depends on the compressor, hose diameter, fittings, tire volume, and starting pressure. The chuck mainly improves handling and connection efficiency.
Build Quality and Materials
Milton describes the S-690 as a solid metal alloy and brass chuck. That rigid construction is better suited to repeated shop use than a thin plastic accessory, and brass helps the threaded inlet hold its shape through normal installation and removal.
The compact body is about 6 inches long, so it offers more reach than a short clip-on chuck without becoming as bulky as a 12-inch service tool. The opposing heads are fixed, which keeps the design simple but gives you fewer positioning options than a swivel or flexible-hose chuck.
Milton rates the chuck for a maximum of 150 PSI and lists it as made in the USA. The Amazon listing also identifies a one-year limited manufacturer warranty.
How It Performs in Real Use
[Products Worth Considering]
This brass air chuck adapter converts a screw-on inflator connection into a lock-on quick connect for hands-free, no-leak tire inflation. Clip the chuck onto Schrader valve stems and lock it in place to simplify inflating car, bike, and motorcycle tires. Built for durability with a corrosion-resistant brass body and strong quick operation.
The AstroAI 2 pack air chucks provide a heavy-duty, closed-flow locking design that helps keep air flowing during inflation while securely attaching to the valve stem. Built with 250 PSI rated brass components and compatible with Schrader valves, they feature 1/4" female NPT threads for a wide fit with common inflators. The straight tip and locking clip make filling tires and monitoring pressure more convenient.
For Dually Trucks and Inner Valve Stems
This is the S-690’s strongest use case. The reverse-facing head can reach an inner valve that points inward, while the opposite head remains available for an outer stem. You still service one valve at a time, but you can often avoid changing tools.
For Passenger Cars, Trailers, and Light Trucks
The chuck works with standard Schrader stems, but its dual-head shape may be more tool than you need for exposed passenger-car valves. It makes more sense when you maintain several vehicles or regularly encounter recessed stems.
For Motorcycles and Bicycles
It can work on Schrader-equipped motorcycles and bicycles when there is enough clearance around the stem. Small wheels, brake rotors, spokes, or tight fork spacing can limit access, so confirm the angle before relying on it as your only chuck.
For Shops, Fleets, and Shared Work Areas
The 10-pack is useful when several technicians or compressor stations need the same fitting. It also gives you spares for damaged seals or misplaced tools, but a home user may find the package excessive.
How to Install and Use It Safely
- Depressurize the airline before installation. Confirm that the mating fitting is 1/4-inch male NPT and follow your air-system instructions for approved thread sealant.
- Inspect the chuck and valve. Do not use a cracked body, damaged threads, loose head, or worn sealing surface.
- Pressurize the system only after installation. Keep the hose controlled and stay within the chuck’s 150 PSI maximum rating.
- Seat one head squarely on the Schrader valve. Do not pry against the valve stem or force the chuck at an angle.
- Inflate in controlled intervals. Use a separate accurate gauge, or a confirmed compatible inflator system, to check pressure.
- Follow the tire specification. Use the vehicle placard, tire maker’s guidance, or equipment manual. The chuck’s 150 PSI limit is not a recommended tire pressure.
- Depressurize before removal or service. Release air from the line before changing fittings, replacing seals, or storing the setup.
Compatibility and Safety Notes
The S-690 is a compressed-air accessory, not a pressure regulator. Your compressor and regulator should be set for the tire and equipment you are servicing, and every hose, fitting, and gauge in the system must be rated for the working pressure.
The Amazon product page displays a California Proposition 65 warning related to lead exposure. Review the current product warning before use, keep the chuck away from children, and follow normal hand-cleaning and workplace-safety practices after handling pneumatic tools.
Do not use the chuck on a damaged valve stem, visibly compromised tire, or wheel that requires professional inspection. Stop if the valve moves excessively, leaks continuously, or cannot hold the chuck squarely.
Pros and Cons
Pros
- Opposing heads improve access to inward-facing and outward-facing Schrader stems.
- Closed, sealing-type design is made for direct use on a compatible compressed-air line.
- Solid metal alloy and brass construction suits repeated garage or fleet work.
- 150 PSI maximum rating covers many automotive and shop inflation tasks.
- Ten-piece package can equip multiple bays or provide ready spares.
Cons
- Does not include a pressure gauge, trigger, hose, or quick-connect plug.
- Not intended for every Milton inflator gauge or every air-line configuration.
- The 10-pack may be poor value if you need only one chuck.
Is It Worth the Price?
The S-690 offers the strongest value when you can use all 10 chucks. A tire shop, fleet department, school bus garage, farm, or multi-bay workshop can standardize several air lines and keep replacements nearby.
For one compressor in a home garage, the package may be more than you need. In that case, compare the total cost with a single-pack S-690 or a chuck that already includes the quick-connect plug, hose, gauge, or trigger your setup requires.
It is worth considering when access to dual-wheel valves matters more than an all-in-one inflator design. It is not the best fit if you want a ready-to-use handheld gauge with no extra fittings.
How It Compares to Alternatives
If you need more reach into deep wheels, Milton’s S-690-12 offers a 12-inch dual-head format. If you prefer a different straight-foot configuration, the Milton S-693 family is another option to compare. Both choices may suit heavy-duty wheel access better than the compact S-690.
A clip-on chuck or trigger inflator with a built-in gauge is more convenient for one-handed pressure control. The S-690 makes the most sense when you already have a compatible regulated air line and want a simple, durable dual-head endpoint.
Frequently Asked Questions
What is the maximum pressure rating of the Milton S-690?
Milton rates the S-690 for a maximum of 150 PSI. That number is the chuck’s limit, not a target pressure for your tire, so follow the vehicle placard or equipment manual.
Will the 1/4-inch FNPT inlet connect directly to my compressor?
It connects to a compatible 1/4-inch male NPT fitting. If your hose uses a quick coupler, you may need to install the correct male plug or adapter on the chuck first.
Does the S-690 measure tire pressure?
No. It is an air chuck that transfers compressed air to the valve, so you need a separate gauge or a verified compatible inflator system to measure pressure.
Can it inflate two valve stems at the same time?
No. The dual-head design gives you two approach directions, but you place only one head on one valve stem at a time.
Does it work with Schrader and Presta valves?
It is designed for Schrader valves. A Presta valve requires a suitable adapter, and tight wheel clearance may still prevent a square seal.
Is the S-690 compatible with every Milton inflator gauge?
No. Milton warns that this closed-type chuck is not intended for all of its inflator gauges, so check the gauge manual or manufacturer compatibility information before installing it.
How many chucks are included in the linked listing?
The linked Amazon ASIN is listed as a pack of 10 Milton S-690 chucks. Check the package description at checkout because manufacturers and sellers may also offer single or other bulk quantities.
How can I reduce air leaks at the valve?
Keep the sealing surfaces clean, approach the stem squarely, and avoid pulling the hose sideways. Replace worn chuck seals or damaged valve cores rather than forcing the connection.
The Bottom Line
The Milton S-690 is a practical choice for shops, fleets, and dually owners who already have a compatible compressed-air system and need better access to Schrader stems. Its durable metal-and-brass build, opposing heads, and 150 PSI limit are useful strengths, while the lack of a gauge and the 10-pack quantity are the main limitations. Skip it if you need a complete trigger inflator or only one ready-to-use chuck.
