JACO FlowPro Digital Tire Inflator Review: 200 PSI Pressure Gauge for Accurate Tire Inflation
Disclosure: As an Amazon Associate, we earn from qualifying purchases. If you click a link on this page and make a purchase, we may receive a small commission at no extra cost to you.
Keeping every tire at the vehicle maker’s recommended pressure is easier when your gauge, chuck, and air control sit in one tool. The JACO FlowPro Digital Tire Inflator Gauge combines a 200 PSI digital gauge, lock-on chuck, inflation trigger, and bleeder valve for routine garage maintenance. Its sturdy hose and bright display are useful, but it is not a portable pump and its 0.5 PSI resolution is less precise than newer fine-resolution models. This review helps you decide whether that tradeoff fits your compressor setup and maintenance routine.
Quick Verdict
Rating: 8.5/10
Best For: Home garages and workshops that already have a compatible air compressor and 1/4-inch NPT airline setup.
Bottom Line: The FlowPro gives you a secure lock-on chuck, readable backlit gauge, and convenient inflate-and-bleed controls in one tool. Its main limitation is that it needs a separate compressor, while the 0.5 PSI display resolution may feel coarse for buyers who want very fine adjustments.
JACO FlowPro Specifications
| Specification | Detail |
|---|---|
| Brand | JACO |
| Model | FlowPro Digital Tire Inflator Gauge, original Digital Series |
| Product type | Inline digital tire inflator gauge for an external air compressor |
| Gauge size | 2.5-inch digital gauge |
| Pressure range | 5 to 200 PSI |
| Advertised accuracy | ±1% of full scale, approximately ±2 PSI across the 200 PSI scale |
| Display resolution | 0.5 PSI |
| Calibration standard | ASME Grade 1A |
| Pressure units | PSI, kPa, bar, and kgf/cm² |
| Air hose | 18-inch braided stainless-steel hose |
| Air chuck | Lightning S-Series push-to-lock chuck with quick release |
| Connection | 1/4-inch NPT; includes an Industrial Type D quick-connect plug |
| Power | Two AAA batteries, included |
| Included items | Inflator gauge, Lightning chuck, quick-connect plug, two AAA batteries, thread seal tape, and quick-start guide |
| Warranty | Manufacturer-advertised lifetime warranty |
Before You Buy: This tool does not create air pressure. You need a separate air compressor with compatible 1/4-inch NPT fittings, and JACO states that the FlowPro is not designed for portable 12V mini tire inflators.
What Is the JACO FlowPro?
The JACO FlowPro is an inline pneumatic tool that measures tire pressure and controls airflow from a separate compressor. You connect the handle to your compressor hose, lock the chuck onto a Schrader valve stem, squeeze the trigger to add air, and use the bleeder control to reduce pressure.
The original Digital Series uses a 2.5-inch backlit display with four selectable pressure units. It can also check pressure and release air without being connected to a compressor, but you still need the compressor whenever you want to inflate a tire.
Its strongest feature is the integrated workflow. Instead of switching between a handheld gauge, a loose chuck, and a separate bleeder, you can handle all three tasks while the chuck stays connected.
Who Should Buy It?
Best For
- Drivers who already own a tank-style air compressor with 1/4-inch NPT connections
- Home mechanics who regularly service cars, SUVs, light trucks, trailers, or motorcycles with Schrader valves
- Buyers who prefer a lock-on chuck and one-handed inflate-and-bleed controls
Skip If
- You need a self-contained cordless or 12V roadside inflator
- You want 0.1 PSI display resolution for very fine pressure adjustments
- You mainly service low-pressure tires where a dedicated low-range gauge is more appropriate
Accuracy, Range, and Display
The FlowPro covers 5 to 200 PSI and displays pressure in 0.5 PSI steps. JACO rates the original digital gauge at ±1% of full scale, which works out to roughly ±2 PSI on a 200 PSI gauge. That distinction matters because resolution and accuracy are not the same thing: the screen changes in half-PSI steps, but the advertised tolerance is wider.
For normal car and light-truck maintenance, the range is broad and the backlit display is easy to read in a dim garage. Buyers who want tighter readings for track setup, low-pressure off-road tires, or precise bicycle tuning may prefer a narrower-range or higher-resolution gauge.
The display automatically shuts off after about two minutes of inactivity to conserve the two AAA batteries. Four units are available, so you can work in PSI, kPa, bar, or kgf/cm² without manual conversions.
Lock-On Chuck and Air Hose
The included Lightning S-Series chuck uses a push-to-lock connection and a quick-release button. Once seated correctly, it lets you remove your hand from the valve stem while you operate the trigger and watch the screen.
An 18-inch braided stainless-steel hose gives you more reach than a rigid chuck mounted directly to the handle. That extra flexibility helps around recessed valve stems, wheel covers, and larger brake components. The chuck itself uses corrosion-resistant zinc alloy, while the main tool uses a steel body with a protective finish.
No chuck can compensate for damaged valve threads or a worn seal. If you hear air escaping, reseat the chuck before adding pressure and inspect the O-ring or connection points if the leak continues.
Inflation and Bleeder Controls
The thumb trigger controls airflow, while the bleeder lets you release excess pressure without disconnecting the chuck. This makes it easier to approach the target gradually instead of repeatedly attaching and removing a separate gauge.
On the original FlowPro, the reading shown while the trigger is held may reflect compressor-tank pressure rather than the settled tire pressure. Release the trigger, allow the reading to stabilize, and then decide whether the tire needs more air or a small reduction.
Pro Tip: Check pressure when the tires are cold, use the driver-door placard or owner’s manual for the target PSI, and release the inflation trigger before reading the settled tire pressure.
Compressor Compatibility and Setup
The handle and included fittings use 1/4-inch NPT threading, a common standard for shop air tools. The box includes an Industrial Type D plug and thread seal tape, but your hose still needs a compatible coupler or threaded connection.
Apply thread seal tape only to the appropriate male pipe threads, tighten the fitting until secure, and avoid over-tightening. After connecting the tool, listen at the handle, plug, hose, and chuck for leaks before you begin working on a tire.
This FlowPro is not meant to attach to compact 12V inflators that already have their own hose and chuck. It is an air-control tool for a compressor line, not an adapter that upgrades a portable pump.
What People Say
Buyer feedback commonly focuses on the secure chuck, readable screen, and convenience of controlling inflation and deflation from one handle. The included batteries, plug, and thread tape also reduce the number of small parts you need to source before setup.
The most relevant criticism is the original model’s 0.5 PSI resolution. Some users also report that a poor seal at a threaded fitting or worn chuck component can cause leakage, so correct assembly and occasional inspection matter.
Overall Sentiment: Positive
Pros and Cons
Pros
- Push-to-lock chuck supports hands-free connection at the valve stem
- Wide 5 to 200 PSI range suits many automotive and workshop tasks
- Backlit digital display supports four pressure units
- 18-inch braided stainless-steel hose improves reach around wheels
- Includes the quick-connect plug, batteries, thread tape, and guide
Cons
- Requires a separate compatible air compressor for inflation
- 0.5 PSI resolution is coarser than newer 0.1 PSI models
- Threaded fittings and chuck seals may need troubleshooting if air leaks develop
[Products Worth Considering]
This brass air chuck adapter converts a screw-on inflator connection into a lock-on quick connect for hands-free, no-leak tire inflation. Clip the chuck onto Schrader valve stems and lock it in place to simplify inflating car, bike, and motorcycle tires. Built for durability with a corrosion-resistant brass body and strong quick operation.
EVOULTES 2-pack closed ball tire chucks lock onto Schrader valves to help you inflate tires hands-free. The set includes both chucks with quick plug compatibility and a 2-way connection approach for easy setup to your air line or compressor. Durable metal construction supports reliable use for cars, trucks, RVs, bikes, and other Schrader-valve tires up to 250 PSI.
How It Performs in Real Use
Routine Car Maintenance
For monthly pressure checks, the lock-on chuck lets you move from tire to tire without holding a conventional clip chuck against each valve. The bleeder is helpful when warm weather or an overenthusiastic fill leaves a tire above the placard setting.
Road-Trip Preparation
Before a long drive, you can check all four tires and adjust them from one compressor station in your garage. The backlight helps in early-morning or evening conditions, but the tool itself is not useful as a roadside inflator unless you also carry a suitable compressor.
Light Trucks, Trailers, and Higher-Pressure Tires
The 200 PSI scale gives the FlowPro enough range for many higher-pressure applications. You still need to follow the tire, wheel, and vehicle limits, and your compressor must supply the required pressure without exceeding the rating of any hose or fitting.
Motorcycles and Bicycle Tires
The flexible hose can make motorcycle valve access easier. For bicycles, the included chuck is intended for Schrader valves; Presta valves require a suitable adapter. The gauge’s 5 PSI lower limit and ±2 PSI advertised tolerance make it less attractive for low-pressure tires that need small, precise changes.
How to Use It Correctly
- Find the recommended cold-tire pressure on the vehicle placard or in the owner’s manual.
- Confirm that your compressor hose and coupler match the included 1/4-inch NPT setup.
- Install the fitting with appropriate thread seal tape and check each connection for leaks.
- Push the Lightning chuck squarely onto the Schrader valve until it locks.
- Read the settled pressure before adding air.
- Squeeze the trigger to inflate, then release it and wait for the tire reading to stabilize.
- Use the bleeder in short presses if the tire is above the target.
- Press the chuck release, reinstall the valve cap, and repeat on the remaining tires.
Compatibility and Safety
Use the FlowPro only with fittings, hoses, and compressors that are rated for the pressure involved. Never use the 200 PSI gauge range as permission to inflate a tire to 200 PSI. The correct limit comes from the vehicle placard, tire application, wheel rating, and equipment instructions.
Keep your face and body away from a damaged tire while inflating, stop if you notice bulges or exposed cords, and have questionable tires inspected by a qualified tire professional. For dual wheels, unusually recessed stems, or specialty valves, confirm that the included straight lock-on chuck can reach before buying.
Durability and Maintenance
The steel body, braided hose, and zinc-alloy chuck are designed for repeated shop use. The display is electronic, so storing the tool in a dry place and protecting it from heavy drops will help preserve the gauge and battery compartment.
Inspect the hose, chuck seal, and threaded joints if pressure readings become unstable or air leaks appear. Replace the AAA batteries when the display dims, and use a different battery brand if a fresh pair does not power the gauge correctly. JACO advertises a lifetime warranty for this model, but you should review the current claim terms and proof-of-purchase requirements before relying on coverage.
Is It Worth the Price?
The FlowPro sits in the practical mid-range of compressor-powered inflator gauges. Its value comes from the complete setup, including the lock-on chuck, braided hose, batteries, plug, thread tape, and combined inflate-and-bleed controls.
It offers strong value for the price when you already own a compressor and want a more convenient tool than a basic analog chuck-and-gauge combination. It is not the best fit when you need roadside portability or finer than 0.5 PSI display resolution.
How It Compares to Alternatives
The newer JACO FlowPro 2.0 keeps the 200 PSI range but improves display resolution to 0.1 PSI, so it is worth comparing when fine adjustments matter. The original FlowPro remains appealing when you want the established lock-on chuck, braided hose, and simpler 0.5 PSI display.
AstroAI sells compressor-powered digital inflator gauges with ranges up to 250 PSI, while Milton offers a compact 255 PSI model with a shorter rubber hose and a rotating display. Compare the chuck design, hose length, stated accuracy, fitting type, and warranty rather than choosing by maximum PSI alone.

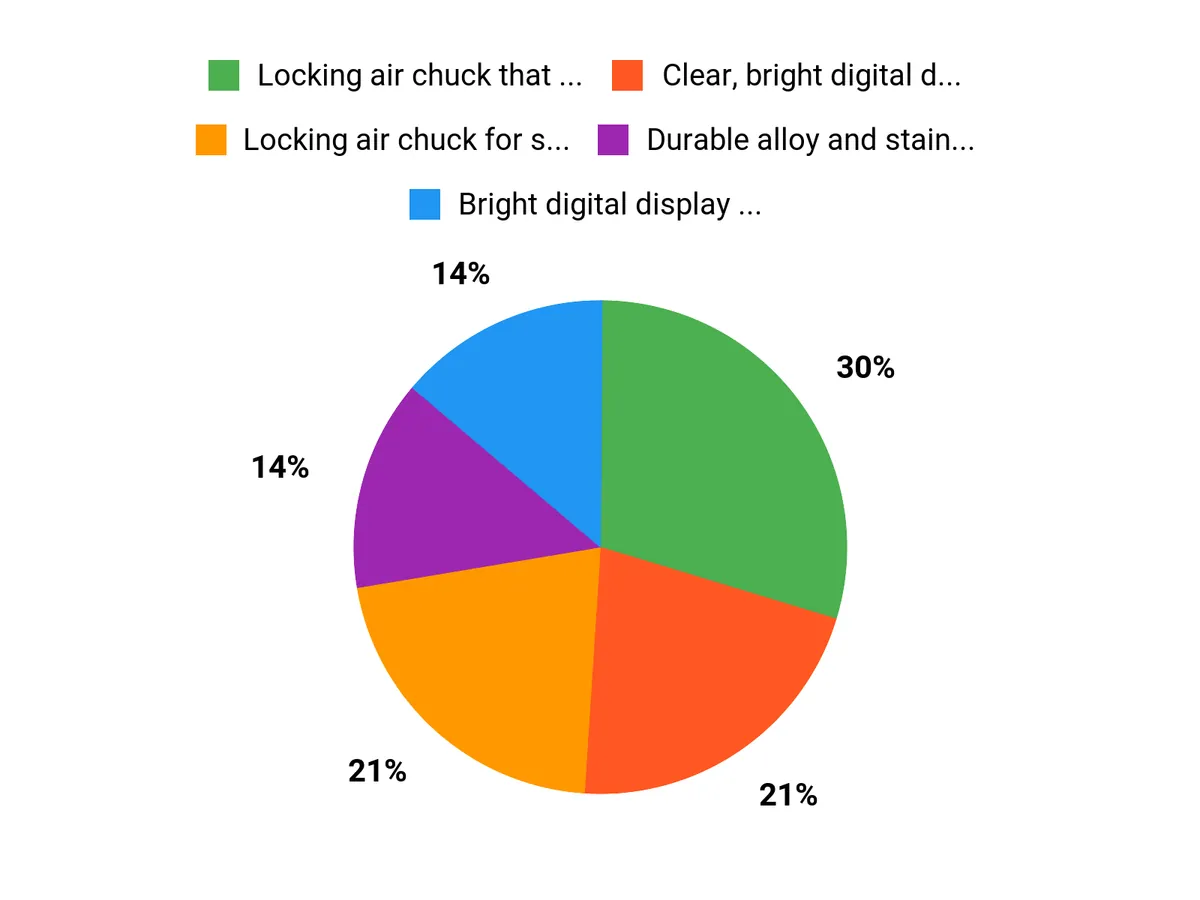

Why Buyers Choose the JACO FlowPro
The FlowPro combines the parts most home mechanics use during tire service: a digital gauge, lock-on chuck, inflation trigger, bleeder, and flexible hose. That integrated layout reduces repeated connections and makes small corrections easier once the airline is set up correctly.
Frequently Asked Questions
Does the JACO FlowPro inflate tires by itself?
No. It controls and measures air supplied by a separate compressor. You can use it as a pressure gauge or bleeder without the compressor, but inflation requires a compatible airline.
Will it work with a portable 12V tire inflator?
JACO states that the original FlowPro is not designed for portable 12V mini inflators. It is intended for compressor lines and couplers that use 1/4-inch NPT connections.
How accurate is the original FlowPro digital gauge?
The manufacturer rates it at ±1% of the full 200 PSI scale, or about ±2 PSI. The display changes in 0.5 PSI increments, which describes resolution rather than the full accuracy tolerance.
Why does the reading change while I hold the trigger?
During inflation, the display may show pressure from the compressor side of the system. Release the trigger and wait for the reading to settle before judging the tire’s actual pressure.
What comes in the package?
The set includes the FlowPro gauge, Lightning S-Series chuck, Industrial Type D quick-connect plug, two AAA batteries, thread seal tape, and a quick-start guide. Confirm the current listing contents before ordering because packaging can change.
What should I do if air leaks from a fitting?
Identify whether the leak comes from the plug, handle, hose, trigger, or chuck. Reseat the connection and use thread seal tape on the correct pipe threads; contact JACO if a chuck O-ring or internal component appears damaged.
Is it a good choice for bicycle tires?
It can work with Schrader bicycle valves and a controlled compressor. Presta valves need an adapter, and low-pressure tires may be better served by a lower-range gauge with finer accuracy.
Who should choose the FlowPro 2.0 instead?
Choose the newer FlowPro 2.0 when 0.1 PSI display resolution is a priority. The original model remains suitable for general garage work when half-PSI display steps meet your needs.
The Bottom Line
The JACO FlowPro is a strong choice for home mechanics who already have a compatible compressor and want a secure chuck, readable gauge, flexible hose, and built-in pressure control. Skip it if you need a self-contained roadside pump or very fine 0.1 PSI adjustments.
Its main strength is the convenient all-in-one inflation workflow, while its main limitation is the original model’s coarser resolution and dependence on external air equipment. That balance supports the 8.5/10 rating.
Ready to Buy?
Check the latest product details and confirm compatibility with your compressor setup before you decide.
