Upgraded Tire Inflator Hose Adapter Review
Disclosure: As an Amazon Associate, we earn from qualifying purchases. If you click a link on this page and make a purchase, we may receive a small commission at no extra cost to you.
A screw-on tire inflator chuck can be slow and awkward when the valve stem sits close to a wheel spoke or deep inside the rim. The LUMITECO LTAC135 Upgraded Tire Inflator Hose Adapter adds a 21-inch hose, a self-locking chuck, a 360-degree rotating end, and a bleeder valve to make those connections easier. Its biggest advantage is quick, hands-free attachment at the tire valve, but it only makes sense when your inflator has the correct 8V1 fine-thread connection. This review explains the fit, setup, real-use benefits, limitations, and accessories so you can decide before buying.
Quick Verdict
Rating: Recommended with caveats
Best For: Portable inflator owners who have an 8V1 screw-on connection and want a faster lock-on chuck with extra reach.
Bottom Line: The rotating 21-inch hose and self-locking chuck can make routine inflation less awkward. The main tradeoff is limited connection compatibility, so you must verify the thread before ordering.
Before You Buy: This is an adapter hose, not a compressor or pressure gauge. Confirm that your inflator uses a matching 8V1 Schrader fine-thread connection, listed as 0.305 × 32 TPI, before ordering.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | LUMITECO |
| Model | LTAC135 |
| Product type | Tire inflator hose adapter with lock-on air chuck |
| Hose length | 21 inches (55 cm) |
| Hose material | Strengthened nylon-wrapped rubber |
| Inflator connection | 8V1 standard Schrader fine thread, 0.305 × 32 TPI |
| Chuck design | Self-locking chuck with quick-release control |
| Pressure adjustment | Built-in air bleeder valve |
| Hose movement | 360-degree rotating end |
| Included accessories | Presta adapter, ball needle, and two tapered nozzles |
| Item weight | 4.2 ounces |
| Package dimensions | 5.83 × 5.28 × 1.18 inches |
[Products Worth Considering]
This LUMITECO 33-inch air release extension hose set is designed to make tire inflating easier with a quick-lock air chuck and an air bleed button for fast deflation. The pack includes adapters for Presta (French/American) plus ball pump needle and additional nozzles for inflating bikes, tires, and everyday inflatables like sports balls and air beds.
The LUMITECO 12" extended reach dual head air chuck is designed for hard-to-reach truck, RV, and bus dual wheels, making tire inflation quick and easier. It features a straight foot lock-on chuck for inner tires and a 30° reverse chuck for outer valves, with a closed-flow design that only allows air when engaged. Built with a brass body and ergonomic rubber grip, it connects easily using a 1/4" FNPT thread plus a standard quick plug for compressor-ready inflation.
This LUMITECO tire inflator hose adapter kit features a 360-degree rotating end for easy positioning from any angle. It includes a self-locking air chuck with quick release to inflate or deflate with minimal hassle, plus universal adapters for Schrader/Presta and ball needle use. The strengthened nylon-wrapped rubber hose helps provide durable, secure connections for everyday inflation and emergencies.

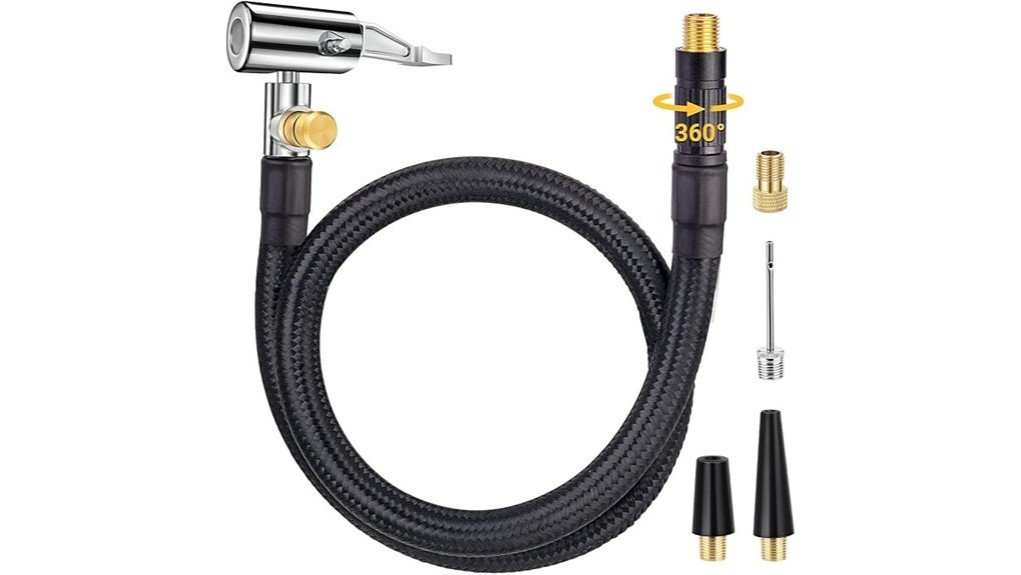

What Is the LUMITECO LTAC135 Tire Inflator Hose Adapter?
The LTAC135 is an add-on hose that changes a compatible screw-on inflator connection into a lock-on chuck. You screw the adapter onto the inflator’s matching 8V1 outlet, then press the chuck onto a Schrader valve stem and lock it in place. This setup reduces the need to hold or repeatedly twist a short hose while the compressor runs.
The 21-inch reach helps when a portable inflator cannot sit close to the valve. A rotating end lets the hose settle into a more natural position, while the bleeder button releases excess air without removing the chuck. The kit also covers bicycle Presta valves, sports balls, and common inflatable items through the included adapters.
Key Takeaways
- The 21-inch hose gives you extra reach around wheel spokes, body panels, and tight valve locations.
- The self-locking chuck stays attached to a Schrader valve until you press the release.
- The bleeder valve lets you lower pressure without disconnecting the hose, but you still need a reliable pressure gauge.
- The 360-degree rotating end can reduce hose twisting and make positioning easier.
- The kit includes a Presta adapter, ball needle, and two tapered nozzles.
- Compatibility is not universal. Your inflator must have the matching 8V1 fine-thread connection.
Who Should Buy It?
Best For
- Drivers whose portable inflator has a matching 8V1 screw-on hose connection.
- Motorcycle or car owners who need more reach around awkward valve positions.
- Households that want one small kit for Schrader tires, Presta bikes, balls, and inflatables.
Skip If
- Your compressor uses a 1/4-inch NPT, M8, coarse-thread, or other nonmatching outlet.
- You need a hose with a built-in pressure gauge or a verified maximum pressure rating.
- You want a complete inflator rather than an add-on adapter.
Fit, Compatibility, and Safety
The most important buying check is the connection at your portable inflator. The LTAC135 uses an 8V1 standard Schrader fine thread measuring 0.305 × 32 TPI. That connection is common on some screw-on tire inflator hoses, but it is not the same as every air-compressor fitting.
Do not assume that “universal” means it will attach to any pump body. Compare the thread on your existing chuck or hose with the product specification, and inspect whether you need a male-to-female connection. A mismatched thread can leak, bind, or damage the fitting.
The verified product information does not provide a maximum pressure rating. Use the adapter only within the limits stated for your inflator, tire, valve, and accessories. Stop using it if the hose shows cracks, bulges, damaged braiding, loose fittings, or a chuck that will not lock securely.
Materials and Build Quality
The hose uses strengthened nylon-wrapped rubber, which combines a flexible inner hose with an outer braided layer. At 21 inches, it is long enough to move the compressor away from the wheel without creating the storage bulk of a much longer extension.
The 360-degree rotating end is useful because it lets the hose turn instead of forcing the whole fitting to twist. It can reduce strain caused by poor hose alignment, but it cannot protect a damaged valve stem or compensate for an incorrectly attached chuck.
The complete adapter weighs 4.2 ounces, and the package measures 5.83 × 5.28 × 1.18 inches. Those dimensions make it practical for a glove box, motorcycle tool pouch, bicycle repair bin, or portable compressor case.
How the Quick Lock and Bleeder Valve Work
The self-locking chuck is the main usability upgrade. Press the lever to open the chuck, push it firmly onto the Schrader valve stem, and release the lever to lock it. Once seated correctly, it can remain attached while you operate and monitor the inflator.
The built-in bleeder valve handles the opposite problem. If the tire pressure is above your target, press the valve briefly to release air without removing the chuck. Use short presses and recheck pressure with your inflator’s gauge or a separate tire gauge because this hose adapter does not measure pressure by itself.
Quick release also helps limit the air lost during disconnection. You should still remove the chuck smoothly and avoid pulling sideways on the valve stem.
What’s Included in the Hose Adapter Kit?
- One 21-inch (55 cm) quick-release hose
- One Presta valve adapter
- One ball needle adapter
- Two tapered nozzles
The main chuck fits Schrader tire valves. For a Presta bicycle valve, install the included adapter first, then attach the lock-on chuck. The ball needle supports sports balls, while the tapered nozzles suit compatible inflatable toys and similar items.
Check the package contents before first use. Small adapters are easy to misplace, so keeping them in a labeled pouch with the inflator will make the kit more useful during roadside or travel use.
[Products Worth Considering]
This EVOULTES 2-way air chuck set includes a dual head closed flow air chuck and a ball head chuck for versatile tire inflation. It connects easily to air lines, inflator gauges, and compressors using 1/4" NPT threads and includes two 1/4" male quick plugs for fast coupling. Built with durable metal construction and sealed threads using Teflon tape to help prevent air leaks, it’s ideal for inflating Schrader valve tires across cars, bikes, and motorcycles.
This dual head and ball air chuck set provides closed-flow tire inflation that routes air only through the chuck engaged with the valve. It includes both dual-head and ball-head chucks plus quick plug fittings for easy, fast connections to air lines and compressors. Built for reliable, leak-resistant operation, it’s ideal for filling Schrader valves on bikes, motorcycles, cars, trucks, and more.
How It Performs in Real Use
Car Tire Top-Offs
The extra hose length lets you place a compact inflator on stable ground instead of hanging it from the valve. The lock-on chuck is helpful when you need to move between four tires because attachment and release require less twisting than a threaded chuck.
Motorcycle and Tight Wheel Areas
Motorcycle valve stems can sit near spokes, brake components, or narrow wheel openings. The rotating end and flexible hose give you more room to align the chuck. You still need to confirm that the chuck can seat fully without contacting nearby parts.
Bicycle Tires With Presta Valves
The included Presta adapter expands the kit beyond car-style Schrader valves. Thread the Presta adapter onto the opened valve, connect the chuck, and inflate within the bicycle tire’s stated pressure range. Remove the adapter carefully so you do not loosen or bend the valve core.
Sports Balls and Household Inflatables
The ball needle and tapered nozzles make the kit useful outside the garage. These accessories work best for occasional inflation, but you should choose the correct nozzle and avoid forcing it into a valve that does not match.
How to Use It Correctly
- Check the thread: Confirm that your inflator has the matching 8V1, 0.305 × 32 TPI connection.
- Attach the hose: Screw the adapter onto the inflator connection until snug. Do not cross-thread or overtighten it.
- Select an accessory: Use the main chuck for Schrader valves, the Presta adapter for compatible bicycle valves, the needle for balls, or a tapered nozzle for suitable inflatables.
- Lock the chuck: Press the lever, seat the chuck straight onto the valve, and release the lever to secure it.
- Inflate and monitor: Run the inflator while watching a reliable pressure gauge. Do not leave the setup unattended.
- Adjust and disconnect: Use short presses on the bleeder valve if needed, then release the chuck and reinstall the valve cap.
Pro Tip: Test the connection at home before placing the kit in your vehicle. A quick soap-and-water check around the threaded joint can reveal bubbling from a poor seal, but dry the fitting fully before storage.
Maintenance and Storage
Wipe dust and road grime from the hose and metal parts with a damp cloth, then dry them before storage. Avoid harsh cleaners that may damage rubber, plastic, or seals. Coil the hose loosely instead of folding it sharply.
Store the adapter away from direct sunlight, moisture, and extreme heat. Inspect the hose, swivel, thread, chuck lever, and bleeder before use. If the lever becomes stiff, remove debris first and follow the manufacturer’s guidance before applying any lubricant.
Pros and Cons
Pros
- 21-inch hose improves reach around wheels and tight valve locations.
- Self-locking chuck supports hands-free attachment at the valve.
- Bleeder valve releases excess air without disconnecting the chuck.
- 360-degree rotating end helps reduce hose twisting.
- Presta, ball, and tapered adapters broaden the kit’s uses.
Cons
- The 8V1 connection will not fit every portable compressor or shop air line.
- No pressure gauge is built into the adapter.
- A verified maximum pressure rating is not stated in the available product information.
Is It Worth the Price?
The LTAC135 offers the most value when it solves a specific problem: your existing screw-on chuck is difficult to reach, slow to attach, or awkward to hold. In that setup, the longer hose, lock-on chuck, swivel, and bleeder combine several useful upgrades in one compact accessory.
It is less valuable when your inflator already has a good lock-on chuck or uses a different thread. Since the adapter has no gauge and no verified pressure rating in the available product information, buyers who need shop-grade pressure specifications should compare more specialized inflator assemblies.
How It Compares to Alternatives
A basic twist-on hose has fewer moving parts, but it takes longer to attach and may lose more air during removal. A 1/4-inch NPT inflator hose works better with many shop compressors, but it will not directly replace an 8V1 fine-thread adapter.
LUMITECO also sells shorter and longer hose adapters for buyers who prioritize compact storage or added reach. The LTAC135 makes the most sense when you want a moderate 21-inch length plus a rotating end, locking chuck, bleeder control, and several inflation adapters in one kit.
Frequently Asked Questions
Will the LTAC135 fit every portable air compressor?
No. It requires a matching 8V1 Schrader fine-thread connection measuring 0.305 × 32 TPI. Check your inflator’s existing hose or chuck connection before ordering.
Is this a replacement hose or an add-on adapter?
It is an add-on adapter hose for a compatible inflator connection. It does not include a compressor, motor, battery, or pressure gauge.
Can it inflate bicycle tires with Presta valves?
Yes, the package includes a Presta valve adapter. Install it on the opened Presta valve, attach the locking chuck, and follow the tire maker’s pressure guidance.
Can the bleeder valve make small pressure adjustments?
Short presses can release small amounts of air, but the adapter does not display pressure. Recheck with a reliable gauge after each adjustment instead of relying on timing alone.
Is it suitable for high-pressure motorcycle tires?
The chuck can connect to compatible Schrader motorcycle valves, but a maximum pressure rating is not stated in the verified product information. Use it only within the limits provided by the inflator, tire, valve, and manufacturer.
Does the rotating end prevent valve stem damage?
It can reduce hose twisting and improve alignment, but it cannot guarantee protection. Attach and remove the chuck straight, and replace any bent, cracked, or leaking valve stem.
What comes in the package?
The kit includes one 21-inch hose, one Presta adapter, one ball needle, and two tapered nozzles. Check all small parts when the package arrives and store them together.
What should you check if the connection leaks?
Confirm that the thread matches, the hose is seated straight, and the chuck is fully locked onto an undamaged valve stem. Stop using the adapter if the hose, seal, fitting, or valve appears worn or damaged.
The Bottom Line
The LUMITECO LTAC135 is a practical choice for owners of compatible portable inflators who want more reach, faster valve attachment, and a simple way to bleed excess air. Skip it if your inflator does not use the 8V1 fine thread or if you need a built-in gauge and a clearly stated pressure rating. Its strongest feature is the combination of a 21-inch rotating hose and lock-on chuck, while connection compatibility remains the main limitation.
Ready to Buy?
Check the latest price, connection details, and package contents before you decide.
