JACO FlowPro Tire Inflator Review
Disclosure: As an Amazon Associate, we earn from qualifying purchases. If you click a link on this page and make a purchase, we may receive a small commission at no extra cost to you.
Keeping tire pressure consistent is easier when one tool can check, inflate, and release air without forcing you to swap attachments. The JACO FlowPro Tire Inflator with Pressure Gauge combines those jobs in a battery-free analog design built for an existing air compressor setup. Its strongest points are the calibrated 100 PSI gauge, long flexible hose, and push-on locking chuck. Its main limitation is just as important: it does not create air on its own, so you still need a compatible compressor for inflation.
Quick Verdict
Rating: 8.5/10, recommended with caveats
Best For: Drivers, home mechanics, and off-road users who already own an air compressor and prefer an analog gauge.
Bottom Line: The FlowPro gives you accurate battery-free pressure control, a secure lock-on chuck, and enough hose reach for routine vehicle work. Skip it if you need a self-powered portable inflator or pressures above 100 PSI.
| Specification | Detail |
|---|---|
| Brand | JACO Superior Products |
| Product type | Analog tire inflator gauge |
| Pressure range | 5 to 100 PSI working range |
| Accuracy | ±2% calibrated accuracy |
| Calibration standard | ANSI B40.1 |
| Dial | 2-inch analog, glow-in-the-dark display |
| Air hose | 21-inch rubberized HybridFlex hose |
| Connection | 1/4-inch NPT threading with industrial Type D quick-connect plug |
| Air chuck | Lightning S-Series push-to-lock chuck with quick release |
| Power | No batteries required |
| Functions | Measures, inflates with a compressor, and bleeds air |

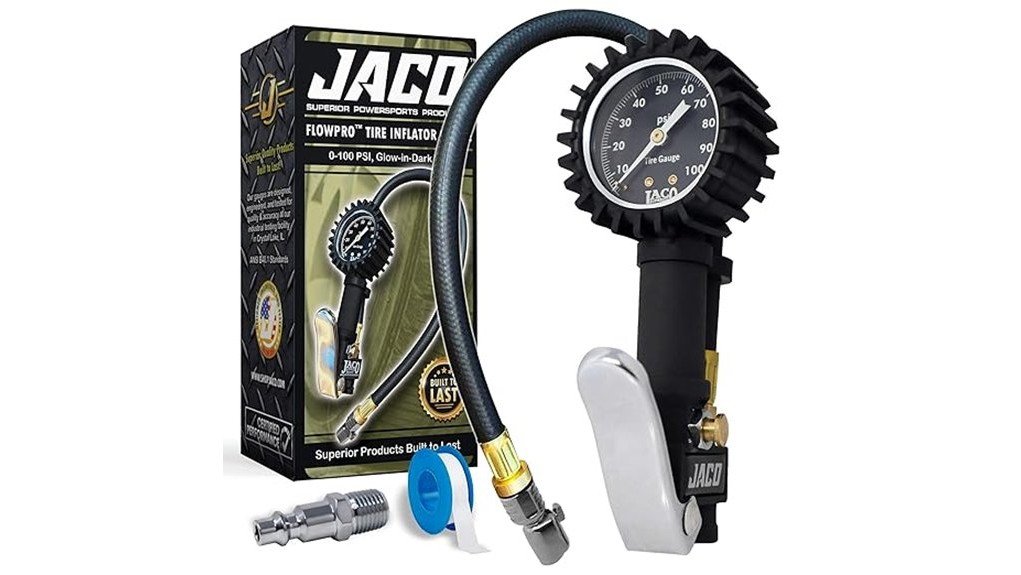

| Included items | Inflator gauge, Lightning chuck, steel quick-connect plug, thread seal tape, and quick-start guide |
| Warranty | Manufacturer lifetime warranty, subject to current terms and purchase conditions |
Key Takeaways
- The 5 to 100 PSI analog gauge is calibrated to ±2% accuracy under ANSI B40.1.
- The 21-inch hose and locking Lightning chuck make valve-stem access easier than a short rigid setup.
- You can check pressure and release excess air without connecting the tool to a compressor.
- You need an air compressor to add air because the FlowPro is an inflator gauge, not a powered compressor.
- The 1/4-inch NPT connection suits common shop air systems but is not intended for portable 12V mini inflators.
[Products Worth Considering]
The JACO FlowPro Tire Inflator measures, inflates, and airs down tires up to 100 PSI with battery-free operation and ±2% accuracy after calibration. It features a glowing pressure dial for night visibility, a heavy-duty steel build with a hybrid hose, and a precision push-to-inflate thumb trigger. The patented Lightning Air Chuck locks on for a secure seal, and the kit includes quick-connect hardware for easy inline use with your air compressor.
This dual head and ball air chuck set provides closed-flow tire inflation that routes air only through the chuck engaged with the valve. It includes both dual-head and ball-head chucks plus quick plug fittings for easy, fast connections to air lines and compressors. Built for reliable, leak-resistant operation, it’s ideal for filling Schrader valves on bikes, motorcycles, cars, trucks, and more.
EVOULTES 2-pack closed ball tire chucks lock onto Schrader valves to help you inflate tires hands-free. The set includes both chucks with quick plug compatibility and a 2-way connection approach for easy setup to your air line or compressor. Durable metal construction supports reliable use for cars, trucks, RVs, bikes, and other Schrader-valve tires up to 250 PSI.
What Is the JACO FlowPro Tire Inflator?
The JACO FlowPro is an inline analog tire inflator gauge for vehicle and equipment tires that use a compatible Schrader-style valve stem. It connects to a shop or garage air compressor through standard 1/4-inch NPT fittings. Once connected, the thumb trigger sends air to the tire, while the bleeder valve lets you reduce pressure in small steps.
You can also use the gauge by itself to check tire pressure or release air. That standalone measuring ability is useful when you only need a quick pressure check, but it should not be confused with standalone inflation. Without an air source, the FlowPro cannot increase tire pressure.
Who Should Buy It?
Best For
- Drivers who already own a compressor and want one tool for checking, filling, and bleeding tires.
- Home mechanics who prefer a battery-free analog dial with a clear 100 PSI range.
- Off-road users who air down at the trail and reinflate before returning to pavement.
Skip If
- You need a cordless or 12V inflator that produces its own air.
- Your application regularly requires more than 100 PSI.
- You need a dedicated dual-head chuck for hard-to-reach inner dual wheels.
Before You Buy: This tool does not replace an air compressor. It can measure and bleed pressure on its own, but adding air requires a compatible compressor line. JACO also states that the FlowPro analog inflator is not designed for portable 12V mini inflators.
Materials and Build Quality
The FlowPro uses a steel-bodied handle with a powder-coated finish, which gives it a more substantial feel than a lightweight plastic gauge. The 2-inch dial sits behind a protective rubberized guard that helps reduce damage from minor bumps. You should still treat it as a calibrated pressure instrument because a hard drop can affect the internal mechanism and accuracy.
The 21-inch rubberized HybridFlex hose gives you enough reach to position the gauge where you can see it while the chuck stays attached. That is useful around larger wheels, deep valve locations, and crowded wheel designs. The hose is flexible, but you should avoid sharp bends, crushing, and storage under heavy tools.
Accuracy and Dial Readability
The analog gauge covers a 5 to 100 PSI working range and is calibrated to ±2% accuracy under ANSI B40.1. That range fits most passenger cars, SUVs, pickups, motorcycles, trailers, lawn equipment, and many light-truck applications. It is not the right tool for high-pressure jobs that exceed the gauge rating.
The glow-in-the-dark dial can improve visibility in a dim garage or during a roadside pressure check. It does not function like a powered backlight, so the glow may be less noticeable under bright lighting or after long storage in darkness. The benefit is that you get low-light assistance without batteries, charging, or electronic controls.
Compressor Compatibility and Connections
The handle uses 1/4-inch NPT threading, a common standard for pneumatic tools in the United States. The package includes an industrial Type D quick-connect plug and thread seal tape. You still need a compatible coupler on your compressor hose, or a compressor hose with a suitable threaded connection.
The Lightning S-Series chuck locks onto the valve stem with a push and releases through a button. This design helps you keep both hands available for the gauge and trigger instead of holding a basic chuck against the valve. Valve-stem clearance still matters, especially on motorcycles, small wheels, or deeply recessed stems.
How the FlowPro Inflates and Airs Down Tires
Attach the chuck squarely to the valve stem, then read the dial with the trigger released. Pressing the thumb trigger sends compressor air through the hose. JACO notes that the dial can show compressor-side pressure while the trigger is held, so release the trigger before checking the tire’s settled pressure.
If you overshoot your target, use the built-in bleeder valve to release air in short taps. Pause between taps so the needle can settle. This approach gives you more control than removing and reconnecting the chuck each time.
Pro Tip: Check pressure when the tires are cold and use the vehicle manufacturer’s recommended cold PSI from the door-jamb label or owner’s manual. Inflate in short bursts, release the trigger, and wait for the needle to settle before adding more air.
How It Performs in Real Use
[Products Worth Considering]
This brass air chuck adapter converts a screw-on inflator connection into a lock-on quick connect for hands-free, no-leak tire inflation. Clip the chuck onto Schrader valve stems and lock it in place to simplify inflating car, bike, and motorcycle tires. Built for durability with a corrosion-resistant brass body and strong quick operation.
Upgrade your air tools with this 18-piece air compressor accessory kit featuring a 25ft recoil poly hose, 1/4" NPT quick connect fittings, and a 100 PSI tire inflator gauge. The set also includes a heavy-duty blow gun with safety and tapered nozzles, plus couplers, inflation needles, plugs, and other essentials for everyday mechanic and workshop tasks. Corrosion-resistant steel and brass components help keep connections reliable for inflating, blowing out, and general pneumatic use.
For Weekly Pressure Checks
You do not need to connect the compressor when you only want a reading. Push the chuck onto the valve stem, let the needle settle, and note the pressure. The analog design is quick and does not require batteries, although it lacks the decimal-level resolution of a digital gauge.
For Garage Inflation
With a compatible compressor connected, the trigger-and-bleeder layout makes small corrections easy. The locking chuck reduces the need to hold the hose against the stem, while the 21-inch hose lets you position the dial where it is easier to read.
For Off-Road Air-Down and Reinflation
The bleeder valve helps lower tire pressure before driving on appropriate off-road terrain. After the trail, you can reconnect your compressor and reinflate to the vehicle maker’s road-pressure specification. The 100 PSI ceiling is enough for many common truck and SUV tires, but you should confirm your tire and vehicle requirements before buying.
For Nighttime or Low-Light Use
The luminous dial is more useful than an unlit analog face when you are working in a dark garage or beside the road. It still depends on ambient light exposure and does not replace a flashlight. A small work light remains helpful for finding the valve stem and inspecting the tire.
Setup Tips Before First Use
- Confirm the fittings: Make sure your compressor hose or coupler matches the included industrial Type D plug and 1/4-inch NPT connection.
- Seal threaded joints: Apply the included thread seal tape in the correct direction, then tighten the fitting securely without stripping the threads.
- Listen for leaks: After connecting the compressor, check the base fitting, hose ends, trigger area, and chuck for escaping air.
- Test against a known gauge: Compare the first few readings with a trusted reference gauge. Contact JACO if readings fall outside the stated accuracy range.
- Store it carefully: Keep the tool dry, avoid dropping the dial, and do not coil the hose tightly around sharp edges.
Compatibility and Safety
Use the FlowPro only within its 100 PSI rating and follow the instructions for your compressor, tires, and vehicle. Never use the gauge as a reason to exceed the pressure listed by the vehicle or equipment manufacturer. Tire sidewall maximum pressure is not automatically the correct operating pressure for your vehicle.
The included chuck is intended for compatible tire valve stems. Presta bicycle valves require a suitable adapter, and some tight motorcycle or dual-wheel positions may need a different chuck. Stop using the tool if the dial is damaged, the needle does not return properly, or air leaks continue after checking the fittings and seals.
Pros and Cons
Pros
- Calibrated 5 to 100 PSI analog gauge with ±2% accuracy.
- No batteries, charging, or screen settings to manage.
- 21-inch flexible hose improves reach around many wheel designs.
- Locking Lightning chuck supports hands-free attachment at the valve stem.
- Measures, inflates with a compressor, and bleeds pressure through one tool.
Cons
- Cannot add air without an external compressor.
- Not designed for portable 12V mini inflators.
- The 100 PSI limit and single straight chuck do not suit every high-pressure or dual-wheel setup.
Is It Worth the Price?
The FlowPro sits in the practical mid-range of manual inflator gauges. You are paying for a calibrated analog dial, a longer hose, a lock-on chuck, a bleeder valve, and included compressor fittings rather than for a motor or digital electronics. It offers strong value for the price if you already have a compressor and use the tool across several vehicles.
It is less compelling if you only need emergency inflation from a car’s 12V outlet. In that case, a powered portable compressor gives you more independence. The FlowPro makes the most sense as a garage, workshop, or trail-support tool where a proper air source is already available.
How It Compares to Alternatives
The JACO FlowPro 2.0 Digital is the better match if you want a 200 PSI ceiling, a digital screen, finer resolution, and higher stated accuracy. The analog FlowPro reviewed here is simpler, battery-free, and easier to leave in a garage without worrying about dead batteries.
The Milton S-506D offers a 10 to 160 PSI range, a 15-inch hose, and a dual-head chuck that can be more useful around truck and dual-wheel applications. The JACO FlowPro counters with a longer 21-inch hose, a glow-in-the-dark dial, and a push-to-lock Lightning chuck. Your best choice depends on pressure range, valve access, and whether you prefer a locking straight chuck or a dual-head design.
Frequently Asked Questions
Can the JACO FlowPro inflate a tire without an air compressor?
No. It can measure tire pressure and release excess air without a compressor, but it needs a connected air source to add air. It is an inflator gauge, not a powered compressor.
Does it work with portable 12V tire inflators?
JACO states that the analog FlowPro is not designed for portable 12V mini inflators. It is built for a compatible shop-style compressor line using 1/4-inch NPT fittings.
Can you use the FlowPro on motorcycle tires?
It can work with motorcycle tires that use an accessible compatible valve stem and fall within the gauge’s pressure range. Check the space around the stem because some wheels may need an angled or smaller chuck.
Why does the reading change while the trigger is pressed?
During inflation, the dial may show pressure from the compressor side of the system. Release the trigger and allow the needle to settle before treating the reading as the tire’s current pressure.
How do you fix an air leak at the inlet fitting?
Disconnect the air source, inspect the threads, and reapply thread seal tape before tightening the fitting with the correct tool. Do not overtighten, and contact the manufacturer if the leak comes from an internal seal or trigger assembly.
Is the glow-in-the-dark dial a true backlight?
No. The dial uses luminous markings rather than powered lighting. It helps in dim conditions but may still require a flashlight when the valve area is dark.
Does the lifetime warranty cover accidental damage?
The manufacturer describes coverage for manufacturing defects, performance issues, or flaws. Accidental damage and misuse may not qualify, so review the current warranty terms and keep your proof of purchase.
Who should choose a digital inflator gauge instead?
Choose a digital model if you want decimal readings, a powered backlight, multiple pressure units, or a higher pressure range. The analog FlowPro is better suited to buyers who value simplicity and battery-free operation.
The Bottom Line
The JACO FlowPro Tire Inflator is a strong choice for drivers and home mechanics who already own a compatible air compressor and want reliable battery-free pressure control. Its 100 PSI analog gauge, locking chuck, flexible hose, and bleeder valve cover routine checks and adjustments well, but buyers who need a self-powered inflator or higher pressure capacity should choose another tool.
