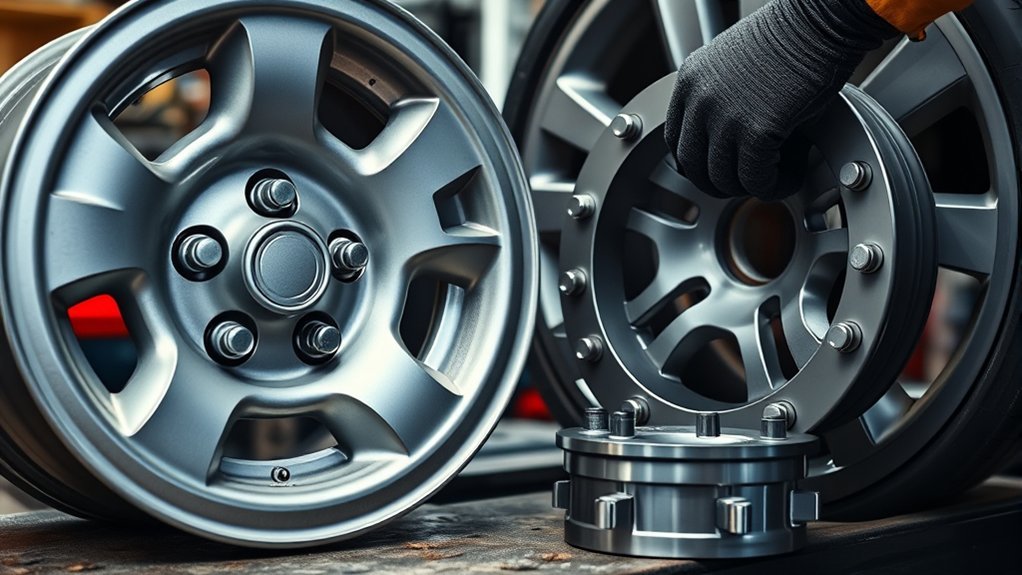

A wheel bolt pattern tells you how many wheel fasteners a vehicle uses and the diameter of the imaginary circle that passes through them. It is one of the first specifications you must match when choosing a wheel. You can sometimes adapt one bolt pattern to another, but a safe fit also depends on the center bore, wheel offset, hardware, load rating, and brake and suspension clearance.
Quick Answer
Yes, a wheel bolt pattern can be changed, but the safest options are usually a purpose-built adapter or a vehicle-specific hub conversion—not drilling a wheel or forcing a near-match. First identify the exact lug count and pitch circle diameter, then verify the center bore, offset, load rating, clearance, hardware, and manufacturer torque requirements.
Key Takeaways
Key Takeaways
- A bolt pattern combines the lug count with the pitch circle diameter, such as 5×114.3.
- Match both numbers exactly. A 5×112 wheel is not interchangeable with a 5×114.3 hub.
- Even-lug patterns are easy to measure across opposite holes, while 5-lug patterns require a different method or a bolt-pattern gauge.
- Bolt pattern is only one fitment check. Center bore, wheel size, offset, load capacity, lug hardware, and brake and suspension clearance also matter.
- Spacers move a wheel outward but do not normally change its bolt pattern. Adapters can change the pattern when they are engineered for the exact vehicle and wheel combination.
Warning: Never force a wheel onto mismatched studs or bolts, enlarge lug holes to make a pattern fit, or drill a wheel or hub as a DIY conversion. Structural wheel and hub modifications require explicit approval for the exact component and application.
What Is a Wheel Bolt Pattern?
A wheel bolt pattern, also called a lug pattern or PCD pattern, describes the arrangement of the wheel’s lug holes and the corresponding studs or bolt holes on the vehicle hub.
The specification has two parts: the number of fasteners and the pitch circle diameter (PCD). For example, 5×114.3 means the wheel uses five fastener positions arranged on an imaginary circle 114.3 millimeters in diameter. Wheel Pros describes the same basic convention in its bolt-pattern measurement guide.
The wheel and vehicle patterns must match unless a properly engineered conversion component is used. A wheel that is only “close” is not a fit. Even a small PCD difference changes the location of every fastener and can prevent the wheel from seating and clamping correctly.
Bolt pattern is also separate from the lug nut or wheel-bolt specification. You still need the correct thread diameter, thread pitch, seat shape, and hardware length for the wheel and vehicle.
It is also important not to confuse bolt pattern with wheel centering. A hub-centric wheel has a center bore that closely matches the vehicle’s hub pilot. A lug-centric wheel uses its lug hardware to establish its centered position during installation. Tire Rack explains these center-bore differences in its wheel centerbore guide.
How to Read Bolt Pattern Numbers
Bolt-pattern notation is simple once you separate the two values. In 5×114.3, the first number is the lug count and the second is the diameter of the imaginary circle passing through the lug centers.
- 4×100: four fastener positions on a 100 mm circle.
- 5×112: five fastener positions on a 112 mm circle.
- 5×114.3: five fastener positions on a 114.3 mm circle.
- 6×139.7: six fastener positions on a 139.7 mm circle.
You may also see imperial notation such as 5 on 4.5. Because one inch equals 25.4 millimeters, 4.5 inches equals 114.3 millimeters. That makes 5×114.3 and 5 on 4.5 two ways of expressing the same pattern.
Note: Do not round one pattern into another just because the numbers look close. For example, 5×112 and 5×114.3 are different specifications.
A wheel bolt pattern is an exact fitment specification, not an approximate measurement.
What Is a Dual-Drill Wheel?
Some aftermarket wheels have two complete sets of lug holes. These are often called dual-drill, dual-pattern, or multi-fit wheels. A wheel marked 5×100/5×114.3, for example, has separate hole sets for those two patterns.
A dual-drill wheel does not make nearby patterns interchangeable. One complete pattern on the wheel must still match the vehicle exactly, and all other fitment requirements must also be satisfied.
How to Check Your Vehicle’s Bolt Pattern
You can often identify a bolt pattern in a few minutes, but the correct measuring method depends on the number of lugs. For the final fitment decision, compare your measurement with trusted vehicle or wheel-fitment data rather than relying on a rough ruler measurement alone.
At a Glance
| Time Required | About 5–10 minutes for a basic check |
| Difficulty | Easy, but 5-lug patterns deserve extra care |
| Tools Needed | Ruler or caliper; bolt-pattern gauge recommended for precise confirmation |
| Cost | Usually $0 when using verified fitment data or tools you already own; an optional bolt-pattern gauge costs extra |
- Count the lug positions. Count the wheel holes, hub studs, or wheel-bolt positions.
- For 4-, 6-, or 8-lug patterns, measure directly across. Measure from the center of one hole or stud to the center of the one directly opposite it.
- For a 5-lug pattern, use the proper 5-lug method. Because no stud sits directly opposite another, a common field method is to measure from the far or back edge of one lug hole to the center of the hole two positions away. Wheel Pros illustrates this method in its bolt-pattern guide.
- Use a gauge when the result is close. Several 5-lug PCDs are only a few millimeters apart, so a bolt-pattern gauge or verified fitment specification is more dependable than estimating.
- Record both values. Write the result as lug count x PCD, such as 5×114.3.
- Verify it before buying or installing a wheel. Compare the result with reliable fitment data for the exact vehicle year, model, trim, axle, and brake package where applicable.
Pro Tip: A ruler may identify an obvious 4-, 6-, or 8-lug pattern, but a 5-lug pattern can be easy to misread. If you are deciding between close sizes such as 5×112, 5×114.3, and 5×115, confirm the specification with a bolt-pattern gauge or trusted fitment data.
You can also inspect wheel markings and parts information, but do not assume every marking represents the bolt pattern. Wheel diameter, width, offset, casting numbers, and certification marks may appear near the same area.
[Products Worth Considering]
Replace worn wheelchair rear tires with a universal 24x1 no-flat polyurethane foam option designed to mount tightly on 24-inch rims without the tire falling off. Installation is made easier with included tools and multiple methods, including using a pry bar or softening the tire in hot water to reduce resistance. The package includes two tires plus tie ropes for convenient fitting and handling.
These M14x1.5 closed-end chrome lug nuts are a one-piece replacement designed for secure fitment on compatible GM, Ford, and select Chrysler/Dodge models. Featuring a 60-degree conical seat and anti-rust chrome plating, they help resist corrosion and maintain a bright look for everyday driving. Built for long-term durability, they include OEM-style part references and are backed by 12 months of support.
This car D-wheel lock nut key provides an anti-theft solution for D-shaped wheel lock bolts, helping keep your wheels secure. It features a flower-shaped internal pattern that resists micro-adjustment theft while allowing removal and mounting of compatible locking nuts. Made for reliable performance under high torque, it’s easy to use with standard socket wrench turning for quick tire maintenance and emergency repairs.
Why Wheel Bolt Pattern Matters
The bolt pattern determines whether the wheel’s lug holes line up correctly with the vehicle’s studs or wheel-bolt holes. If the locations do not match, the fasteners cannot clamp the wheel in the way the wheel and hub were designed to work.
A correct pattern allows the wheel mounting face to sit flush against the hub or brake rotor hat and lets the proper lug hardware clamp the assembly evenly. A mismatched pattern can cause poor seating, abnormal fastener loading, loosening, vibration, or component damage.
The bolt pattern does not tell you every other fitment dimension. Tire Rack’s wheel-fitment process also checks center bore, load capacity, lug hardware, suspension components, and other interference points.
Before treating a wheel as compatible, verify:
- Bolt pattern: lug count and PCD must match.
- Center bore: the wheel must clear the vehicle hub and use the intended hub-centric or lug-centric arrangement.
- Wheel diameter and width: both must suit the vehicle, tires, and brakes.
- Offset and backspacing: these determine where the wheel sits relative to the suspension and fender.
- Load capacity: the wheel must be suitable for the vehicle’s required load.
- Lug hardware: thread size, pitch, seat type, length, and hardware design must be correct.
- Brake and suspension clearance: the wheel must rotate and steer without interference.
Can You Change a Wheel Bolt Pattern?
Yes, a vehicle can sometimes be adapted to accept a different wheel bolt pattern, but the method matters. The safest approach is usually to choose a wheel made in the vehicle’s original pattern. A direct-fit wheel avoids adding another structural interface and usually makes offset, center-bore, and hardware matching easier.
If the wheel you want uses another pattern, there are three broad paths:
- Use a purpose-built wheel adapter. A bolt-on adapter attaches to the original hub pattern and provides a second pattern for the wheel. It also adds thickness, so effective wheel position and clearance change.
- Use a vehicle-specific hub or related component conversion. This is appropriate only when the replacement components are engineered for the exact vehicle and preserve bearing, axle, brake, ABS, and fastener compatibility.
- Choose a different direct-fit wheel. When the adapter or conversion introduces uncertain clearance, hardware, or load issues, this is usually the simplest and lowest-risk answer.
Warning: Do not treat redrilling or enlarging lug holes as a routine conversion. Aftermarket wheels are designed and tested in a specific configuration. SAE’s current J2530 recommended practice covers performance, testing, certification, and marking requirements for aftermarket passenger-car and light-truck wheels. Structural modifications should only be performed when explicitly approved for that component and application.
Before any conversion, compare the original and proposed PCD, center bore, wheel offset, adapter thickness, stud or bolt hardware, wheel load rating, brake clearance, tire-to-fender clearance, and suspension clearance.
Do Adapters and Spacers Work?
Yes, but they perform different jobs. A wheel adapter can provide a different bolt pattern. A spacer moves the wheel outward while normally retaining the original pattern. A hub-centric ring fills a center-bore gap to help position certain aftermarket wheels during installation; it does not change the bolt pattern.
| Part | Main Job | Changes Bolt Pattern? |
| Wheel adapter | Converts one hub pattern to another wheel pattern and adds thickness | Yes, when designed as a pattern-conversion adapter |
| Wheel spacer | Moves the wheel outward to change effective wheel position or clearance | No, for a conventional spacer |
| Hub-centric ring | Fills the gap between a larger wheel center bore and a smaller hub pilot where the wheel design permits it | No |
[Products Worth Considering]
Upgrade your wheels with MIKKUPPA closed-end lug nuts designed for reliable fit and corrosion resistance. The one-piece, cold-forged and heat-treated steel construction helps resist rust and stripping, while the integrated finish delivers a durable black appearance. Built to OEM standards with a conical 60-degree seat, these nuts provide a secure solution for compatible Ford, Honda, Jeep, and Chevrolet models.
Upgrade your wheels with MIKKUPPA M12x1.5 mag seat lug nuts built for secure, corrosion-resistant performance. These closed-end chrome lug nuts are a direct replacement for select Toyota models, including Camry, Corolla, RAV4, Sienna, Avalon, Highlander, Matrix, Venza, and Prius. Triple-chromium plating and cold-forged, heat-treated steel help deliver strength for daily driving and replacement needs.
The SEESII cordless impact wrench delivers high tightening and loosening power for fast wheel bolt and industrial bolt work. Its brushless motor and variable-speed 3 forward/2 reverse modes help you control precision installs and stubborn nut removal. A dual-battery system with rapid charging and an included storage case make it ready for home, car, and jobsite use.
Adapter Basics
Choose an adapter only when it is designed for the vehicle’s hub pattern, wheel pattern, hub bore, fastener arrangement, and intended load. Many quality bolt-on adapters are hub-centric for applications that use a hub pilot, but the exact design depends on the vehicle.
An adapter also changes wheel position because its thickness pushes the wheel outward. Before ordering, calculate the resulting effective offset and check inner and outer tire clearance, brake clearance, fender clearance, and stud or bolt clearance.
- Match the vehicle-side bolt pattern exactly.
- Match the wheel-side bolt pattern exactly.
- Confirm hub and wheel center-bore compatibility.
- Confirm the supplied fasteners and thread specifications.
- Verify that original studs will not interfere with the back of the wheel where applicable.
- Use the adapter manufacturer’s installation and load guidance.
Eibach’s Pro-Spacer installation instructions, for example, require checking that the spacer sits flush, verifying hardware dimensions, tightening with a torque wrench to the applicable vehicle or wheel specification, and confirming that the wheel rotates without contact.
Spacer Limits
A spacer can change effective wheel offset and track width, but it cannot make an incompatible bolt pattern compatible. If your vehicle is 5×112 and the wheel is 5×114.3, an ordinary 5×112 spacer still leaves you with a 5×112 mounting pattern.
Spacers may be used in properly engineered applications to alter wheel position or create needed clearance, but extra thickness affects the relationship between the wheel, fender, suspension, and steering geometry. Stud or bolt engagement must remain within the requirements specified by the vehicle and spacer manufacturer.
Some spacers include a hub-centric lip that maintains the hub pilot for a hub-centric wheel. That is different from saying that any spacer can “center an aftermarket wheel.” If a wheel has a larger center bore and is intended to use a centering ring, use the ring size specified for that wheel and vehicle.
Do not select a spacer only because it is aluminum or steel. Material grade, manufacturing method, dimensions, fastener quality, application testing, hub fit, and installation quality are all important. A well-engineered component is more meaningful than a broad claim that one material is always safer than another.
How to Fit Wheels That Almost Match Safely
If two wheel specifications “almost match,” assume they do not fit until every dimension has been verified. A near-match in PCD cannot be corrected by tightening the lugs harder or by relying on the center bore.
Start with the bolt pattern, then work through centering, offset, wheel size, hardware, load rating, brakes, suspension, and tire clearance. If an adapter is required, include its thickness in every clearance calculation.
[Products Worth Considering]
The 22800 wheel stud installer makes replacing wheel studs quick and secure, saving time and effort during tire service. It uses a ratchet or impact wrench to pull new studs firmly into place, helping when existing studs are too long. Compatible with most automotive wheels and light-duty truck wheel studs, it’s designed for easy, tool-assisted installation.
This 1/2-inch drive breaker bar delivers powerful leverage for loosening and tightening stubborn lug nuts and automotive fasteners. The 180-degree flex head helps you reach tight spaces at the angle you need, making tire and brake jobs easier. A spring-loaded ball detent design holds 1/2-inch sockets securely while the chrome-moly head provides durable strength for everyday use.
This universal wheel alignment tool helps you accurately restore tire tilt angles after tire or suspension repairs using an adjustable camber gauge. It features a powerful magnetic base that firmly attaches to brake rotors for stationary, slip-free readings, improving consistency during measurement. Built from durable PC plastic, it resists wear and corrosion and is compact enough for car, truck, RV, and motorcycle alignment tasks.
Hub-Centric and Lug-Centric Fit Checks
First determine how the wheel is intended to center. On a hub-centric fitment, the wheel center bore or specified centering ring closely matches the vehicle hub pilot and helps hold the wheel concentric while the fasteners are tightened.
On a lug-centric design, the center bore is larger and the wheel is centered through the lug-seat geometry as the hardware is tightened correctly. Lug-centric wheels are legitimate designs; the presence of a center-bore gap does not automatically mean the wheel is unsafe.
Check these points:
- Make sure the wheel center bore is not smaller than the vehicle hub where it must pass over the hub.
- If the wheel requires a hub ring, match the ring’s outer diameter to the wheel bore and inner diameter to the hub pilot.
- Clean rust, dirt, paint buildup, and debris from mating surfaces before final installation.
- Confirm that the wheel or adapter sits flat against the mounting face without rocking.
- Do not use a centering ring to compensate for the wrong bolt pattern.
Hub rings assist positioning; they do not replace correct bolt pattern, lug hardware, tightening procedure, or wheel balancing.
Offset And Clearance
After confirming bolt pattern and centering, compare the wheel’s offset with the vehicle and wheel manufacturer’s fitment range. Offset is measured in millimeters from the wheel centerline to its mounting surface.
A more positive offset generally moves the wheel farther inward. A lower or more negative offset generally moves it outward. Adapter or spacer thickness effectively moves the wheel outward as well, so it must be included in the fitment calculation.
Check clearance at:
- Brake calipers and rotors
- Struts and shock bodies
- Control arms and steering components
- Fender liners and bodywork
- Tire sidewalls at full steering lock
- Suspension components through expected suspension travel
Static clearance in the garage is not the only concern. The tire and wheel move relative to surrounding components during steering, braking, cornering, and suspension compression.
Safe Adapter Use
A properly engineered adapter can bridge two different bolt patterns, but it creates another bolted joint and changes wheel position. Treat it as a structural fitment component rather than a cosmetic accessory.
- Confirm vehicle-side and wheel-side PCD.
- Confirm hub bore and wheel bore compatibility.
- Use only the fasteners specified for the adapter.
- Verify that studs or bolts do not bottom out or interfere with the wheel.
- Follow the specified tightening sequence and torque.
- After installation, rotate the wheel by hand and inspect all surrounding clearances.
- Follow the adapter or wheel manufacturer’s specified torque-recheck interval.
Do not substitute a generic torque number from another vehicle or adapter. Eibach, for example, instructs users of its system to obtain the proper tightening torque from the vehicle workshop manual or wheel manufacturer’s specification and gives recheck intervals specific to its product.
Troubleshooting Vibration After Wheel Installation
If vibration begins immediately after changing wheels, adapters, spacers, or hub rings, stop assuming it is simply a tire-balance issue and recheck the installation.
- Confirm the wheel is fully seated against the hub or adapter.
- Check for dirt, corrosion, retaining clips, or hardware preventing flush contact.
- Verify that the correct lug-seat type was used.
- Confirm the wheel was centered according to its hub-centric or lug-centric design.
- Check wheel and tire balance.
- Verify torque using the correct specification.
- Inspect the wheel, tire, spacer, adapter, and fasteners for damage or runout.
If the wheel cannot be made to sit flush and rotate freely without interference, remove it and correct the fitment before driving.
Frequently Asked Questions
Can Bolt Pattern Affect Ride Quality?
An incorrect bolt pattern should not be used at all. Poor wheel seating, incorrect centering, wrong hardware, or a badly fitted adapter can contribute to vibration or instability. With the correct pattern and installation, ride quality is more directly affected by wheel/tire balance, tire construction, wheel dimensions, suspension, and road conditions.
Do Hub-Centric Rings Change Bolt Pattern Fit?
No. A hub-centric ring fills the gap between a larger wheel center bore and a smaller vehicle hub where the wheel is designed to use one. It helps position the wheel during installation but does not move the lug holes or convert one PCD to another.
Are Bolt Patterns the Same as Lug Nut Sizes?
No. Bolt pattern describes the number and spacing of the wheel fasteners. Lug nuts or wheel bolts have separate specifications such as thread diameter, thread pitch, seat style, and length. Both the bolt pattern and hardware must be correct.
Can Bolt Pattern Be Measured With Wheels On?
Sometimes. If the lug positions are exposed, you may be able to make a basic measurement through the wheel. Removing the wheel normally gives better access to the hub and makes it easier to confirm the mounting surface, center bore, studs, and markings. Always verify the result with reliable fitment data before ordering wheels.
Do Aftermarket Wheels Always List Bolt Pattern?
Not necessarily in an easy-to-read location on the wheel itself. Product specifications normally identify the intended bolt pattern, while physical wheel markings may include several other numbers. Confirm the exact wheel part number and its manufacturer’s specifications rather than guessing from a casting mark.
How Do You Measure a 5-Lug Bolt Pattern?
A 5-lug hub has no directly opposite stud. A common field method measures from the back edge of one lug position toward the center of the hole two positions away. Because several 5-lug patterns are close together, a bolt-pattern gauge or verified fitment specification is the better final check.
Is 5×114.3 the Same as 5 on 4.5?
Yes. One inch equals 25.4 millimeters, so 4.5 inches equals 114.3 millimeters. The two notations describe the same five-lug pitch circle diameter.
Can a Wheel Spacer Change the Bolt Pattern?
A conventional spacer does not change the pattern; it moves the wheel outward while retaining the original stud or bolt arrangement. A bolt-pattern adapter is a different component that attaches using one pattern and provides another pattern for the wheel.
Can I Use a Wheel if the Bolt Pattern Is Only a Few Millimeters Different?
No. A close PCD is still a different PCD. Do not force the wheel over the studs, enlarge the holes, or rely on the lug nuts to pull it into position. Use the exact pattern or a properly engineered conversion designed for both patterns and the vehicle.
Conclusion
A wheel bolt pattern is the lug count plus the pitch circle diameter, and both values must match exactly unless an engineered conversion is used. Measure even-lug and 5-lug patterns correctly, then verify your result before buying a wheel.
Do not stop at the bolt pattern. Confirm center bore, hub- or lug-centric design, wheel diameter and width, offset, load rating, lug hardware, and brake and suspension clearance. If another bolt pattern is necessary, a vehicle-specific adapter or engineered hub conversion is far safer than forcing, enlarging, or casually redrilling structural components.
When adapters or spacers are installed, follow the exact component, wheel, and vehicle instructions for hardware, tightening torque, thread engagement, clearance checks, and any required torque recheck. If any specification remains uncertain, use a verified direct-fit wheel instead.
