2 Way Connection Air Chuck Set Review
Disclosure: As an Amazon Associate, we earn from qualifying purchases. If you click a link on this page and make a purchase, we may receive a small commission at no extra cost to you.
A tire chuck that leaks, slips, or cannot reach the valve stem can turn a simple pressure check into an annoying job. The LUMITECO 2 Way Connection Air Chuck Set gives you two chuck styles, two quick plugs, PTFE thread-seal tape, and four valve caps in one compact kit. Its main strength is flexibility: you can use the extended dual-head chuck for awkward valve positions and the shorter ball-head chuck for routine access. The tradeoff is that this is an accessory set, not a complete inflator or pressure gauge, and you must confirm that its fittings match your air-line setup.
Quick Verdict
Rating: 8.2/10, recommended with caveats
Best For: Home garages, mobile tire kits, and compressor owners who need two chuck shapes for Schrader valves
Bottom Line: The set offers useful reach, closed-flow operation, and a complete group of basic connection accessories. It is less suitable if you need a built-in gauge, a locking hands-free chuck, Presta compatibility without an adapter, or a guaranteed match for every quick-coupler profile.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | LUMITECO |
| Model | LTAC106B |
| Product type | Two-chuck tire-inflation connection kit |
| Chuck design | Dual-head closed-flow chuck and ball-head closed-flow chuck |
| Thread connection | 1/4-inch female NPT on both air chucks |
| Quick fittings | Two 1/4-inch male quick plugs |
| Materials | Brass and metal-alloy components |
| Valve compatibility | Schrader valves; Presta valves require a separate adapter |

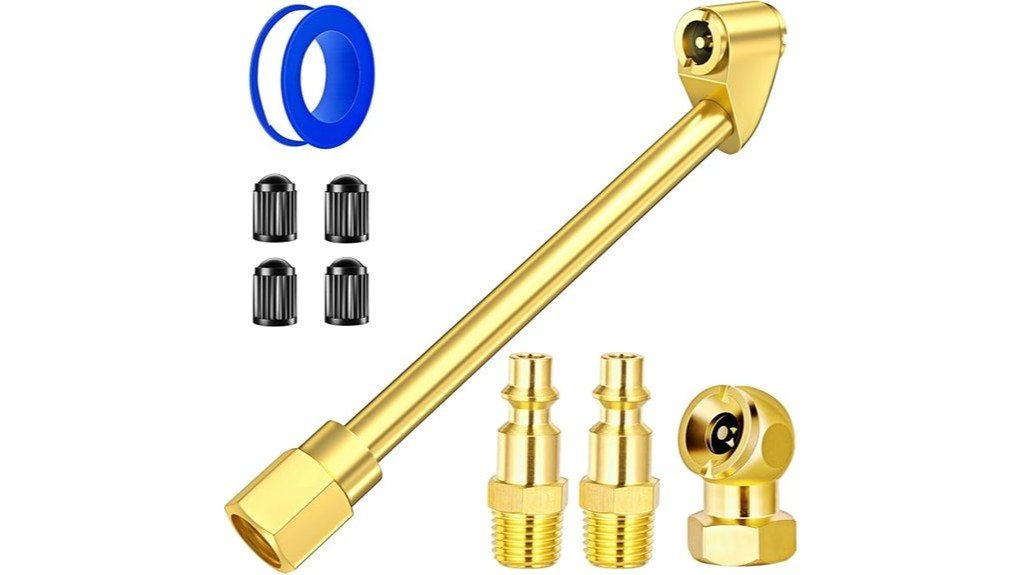

| Included accessories | One dual-head chuck, one ball-head chuck, two quick plugs, one roll of PTFE tape, and four valve caps |
| Best use | Cars, motorcycles, Schrader-equipped bicycles, light trucks, shop compressors, and roadside top-offs |
| Important limitation | It does not include a compressor, hose, regulator, or pressure gauge |
[Products Worth Considering]
The LUMITECO 12" extended reach dual head air chuck is designed for hard-to-reach truck, RV, and bus dual wheels, making tire inflation quick and easier. It features a straight foot lock-on chuck for inner tires and a 30° reverse chuck for outer valves, with a closed-flow design that only allows air when engaged. Built with a brass body and ergonomic rubber grip, it connects easily using a 1/4" FNPT thread plus a standard quick plug for compressor-ready inflation.
This dual head and ball air chuck set provides closed-flow tire inflation that routes air only through the chuck engaged with the valve. It includes both dual-head and ball-head chucks plus quick plug fittings for easy, fast connections to air lines and compressors. Built for reliable, leak-resistant operation, it’s ideal for filling Schrader valves on bikes, motorcycles, cars, trucks, and more.
This EVOULTES 2-way air chuck set includes a dual head closed flow air chuck and a ball head chuck for versatile tire inflation. It connects easily to air lines, inflator gauges, and compressors using 1/4" NPT threads and includes two 1/4" male quick plugs for fast coupling. Built with durable metal construction and sealed threads using Teflon tape to help prevent air leaks, it’s ideal for inflating Schrader valve tires across cars, bikes, and motorcycles.
What Is the LUMITECO 2 Way Connection Air Chuck Set?
The LTAC106B is a small connection kit for moving compressed air from a compatible hose, inflator gauge, or compressor line into a Schrader tire valve. Instead of giving you one chuck shape, it includes an extended dual-head chuck and a compact ball-head chuck. Both use 1/4-inch female NPT threads and can accept the included male quick plugs.
The kit is designed for buyers who already own the main inflation equipment but want better valve access or replacement chucks. The closed-flow design keeps the line shut until the chuck engages the valve core, which can reduce unnecessary air discharge while you position the tool. The supplied PTFE tape helps seal the threaded connection during setup, while the four valve caps replace missing caps after the inflation job.
Key Takeaways
- You get two different closed-flow air chucks for normal and awkward valve positions.
- Both chucks use 1/4-inch female NPT threads, and the kit includes two male quick plugs.
- The set is made for Schrader valves found on most cars, motorcycles, light trucks, and many bicycles.
- The brass and metal-alloy build is more suitable for repeated garage use than a lightweight plastic fitting.
- You still need a compatible compressor or inflator, an air hose, and a reliable pressure gauge.
Before You Buy: A 1/4-inch NPT thread size does not guarantee that every quick plug will match every quick coupler. Check the thread type, plug profile, air-flow design, and Schrader-valve requirement before ordering.
Who Should Buy It?
Best For
- Home-garage users who already have an air compressor, hose, or inflator gauge
- Drivers and riders who need both a compact chuck and an extended dual-head option
- Mobile repair or roadside kits that benefit from spare valve caps and connection fittings
Skip If
- You need an all-in-one inflator with a gauge, hose, and automatic shutoff
- Your equipment uses Presta valves and you do not want to carry an adapter
- You prefer a locking clip or push-to-lock chuck for hands-free inflation
Dual-Head and Ball-Head Design
The extended dual-head chuck is the more specialized piece in the kit. Its straight body and two access points give you more options when the valve stem faces inward, sits behind a wheel opening, or leaves little room for your hand. This design can be useful on light trucks, trailers, and other wheels with crowded valve locations, although exact access still depends on the wheel and valve orientation.
The ball-head chuck is shorter and easier to handle for routine tire inflation. It works well when the valve is easy to reach and you want direct push-on contact. Having both styles means you can choose the simpler tool for normal work and keep the extended chuck for difficult angles instead of forcing one chuck into every situation.
How the Closed-Flow Design Performs
A closed-flow chuck keeps the air path closed when it is not pressing the valve core. This matters when the chuck is connected to a live air line because you do not want air escaping continuously while you move between tires. Once the chuck seats against the Schrader valve, the valve core opens and air can flow into the tire.
The design does not eliminate every possible leak. A worn internal seal, crooked contact with the valve, damaged stem threads, or a loose NPT connection can still release air. You should listen for hissing, hold the chuck squarely against the stem, and check the tire pressure with a separate gauge after inflation.
Materials and Build Quality
LUMITECO uses brass and metal-alloy parts rather than an all-plastic body. Brass is a practical fitting material because it resists corrosion and provides firm threads for repeated installation. The metal extension on the dual-head chuck also helps it reach a valve without flexing like a soft hose attachment.
The kit is still a small accessory set, so long-term life depends on how you store and connect it. Cross-threading the NPT fitting, dropping the chuck onto concrete, leaving moisture inside the air line, or applying excessive tool force can shorten service life. The included valve caps are basic replacements, not pressure-control devices, but they help keep dirt and moisture away from the valve opening.
Installation and Compatibility
Each chuck has a 1/4-inch female NPT port. You can thread one of the included male quick plugs into that port, then connect the plug to a compatible female coupler on your air hose. You can also connect the chuck to another compatible 1/4-inch male NPT fitting, depending on your inflator or gauge setup.
Use PTFE tape only on the male NPT threads that form the air-line connection. Wrap it in the tightening direction and keep the first thread clear so loose tape does not enter the air passage. Tighten the fitting until it seals, but avoid excessive force that could damage the threads or split a softer mating component.
Pro Tip: Set up one chuck with each quick plug and keep both in your tool drawer. You can then swap chuck styles at the coupler instead of removing and resealing the threaded fitting each time.
[Products Worth Considering]
This LUMITECO tire inflator hose adapter kit features a 360-degree rotating end for easy positioning from any angle. It includes a self-locking air chuck with quick release to inflate or deflate with minimal hassle, plus universal adapters for Schrader/Presta and ball needle use. The strengthened nylon-wrapped rubber hose helps provide durable, secure connections for everyday inflation and emergencies.
Upgrade your air tools with this 18-piece air compressor accessory kit featuring a 25ft recoil poly hose, 1/4" NPT quick connect fittings, and a 100 PSI tire inflator gauge. The set also includes a heavy-duty blow gun with safety and tapered nozzles, plus couplers, inflation needles, plugs, and other essentials for everyday mechanic and workshop tasks. Corrosion-resistant steel and brass components help keep connections reliable for inflating, blowing out, and general pneumatic use.
How It Performs in Real Use
Home-Garage Pressure Checks
For routine car-tire maintenance, the ball-head chuck is usually the faster choice because most valve stems are easy to reach. Connect it to your regulated air line, press it squarely onto the valve, add air in short intervals, and confirm the final pressure with a gauge. The closed-flow action keeps the connected hose quieter between tires.
Motorcycles and Schrader-Equipped Bicycles
Motorcycle wheels and some bicycle rims can leave limited room around the valve. The two chuck shapes give you a better chance of finding a workable approach. However, many bicycles use Presta valves, so check the valve type first and add a Presta-to-Schrader adapter when needed.
Awkward or Recessed Valve Stems
The extended dual-head chuck is the main reason to choose this kit over a single straight chuck. It lets your hand stay farther from the wheel while the head reaches toward a recessed stem. It may also help with inward-facing stems, but it cannot guarantee access to every dual-wheel or custom-wheel layout.
Roadside and Mobile Use
The kit is compact enough for a service bag, but it cannot inflate a tire by itself. For roadside use, pair it with a compatible portable compressor, hose, and accurate gauge. Keep the parts in a small pouch so the quick plugs, valve caps, and PTFE tape do not scatter inside the vehicle.
Safe Use and Maintenance
Turn off and depressurize the air line before installing or removing threaded fittings. Wear eye protection when working with compressed air, keep your face away from the connection, and never use a damaged chuck, cracked hose, or deformed quick plug. Follow the pressure limits of your compressor, hose, coupler, gauge, wheel, and tire rather than assuming the chuck is the limiting component.
After use, wipe moisture and road grime from the metal surfaces. Check the chuck seal and quick-plug connection if you hear air leaking. Store the set in a dry place, keep the valve caps together, and replace any fitting that shows damaged threads, deep corrosion, or a loose connection that cannot be sealed safely.
Pros and Cons
Pros
- Includes two chuck shapes for normal and hard-to-reach Schrader valves
- Closed-flow operation limits free air discharge when the chuck is disengaged
- Brass and metal-alloy construction suits repeated garage use
- Two quick plugs let you prepare both chucks for faster swapping
- PTFE tape and four valve caps make the package more complete
Cons
- Does not include a pressure gauge, hose, compressor, or regulator
- Presta valves require a separate adapter
- Quick-plug compatibility can vary even when fittings are described as 1/4 inch
Is It Worth the Price?
This set makes the most sense as a practical, budget-friendly upgrade for an air system you already own. You receive two usable chuck styles plus the fittings and small accessories needed to prepare them for a compatible hose. That can be better value than buying each part separately, especially when you regularly work on more than one type of wheel.
It is not the best fit if your real need is a complete tire inflator, a digital gauge, or a hands-free locking chuck. In those cases, paying more for an integrated inflator or a premium lock-on nozzle may save time. For basic garage inflation and occasional mobile work, the LUMITECO kit offers strong value when its connections match your equipment.
How It Compares to Alternatives
The Milton S-693W focuses on a straight dual-head design for difficult valve access, making it a stronger single-purpose choice when reach is your top concern. The JACO Lightning S2 and AstroAI closed-flow lock-on chucks focus more on quick locking and easier hands-free attachment to a valve stem.
The LUMITECO set is more versatile as a bundle because it gives you two chuck shapes, two quick plugs, PTFE tape, and valve caps. Choose it for variety and basic value. Choose a dedicated lock-on chuck when secure hands-free contact matters more than having an extended dual-head option.
Frequently Asked Questions
Is this set compatible with standard air compressors?
It can connect to an air compressor, hose, or inflator gauge that accepts a compatible 1/4-inch NPT fitting or matching quick coupler. Check both the thread and quick-plug profile because not every coupler described as 1/4 inch uses the same plug shape.
Does this set include a tire-pressure gauge?
No. The package contains air chucks, quick plugs, PTFE tape, and valve caps. You still need a compressor or inflator, an air hose, and a separate gauge to measure pressure accurately.
Can it be used with Presta-valve bikes?
The chucks are made for Schrader valves. A Presta-equipped bicycle needs a separate Presta-to-Schrader adapter, and you should use a gauge suited to the bicycle tire’s required pressure range.
Does the quick plug fit all 1/4-inch couplers?
Not necessarily. The NPT thread size and quick-coupler plug profile are separate compatibility details. Compare the included plug shape with your existing coupler or replace the plug with the correct 1/4-inch NPT version for your system.
How do I maintain the brass air chucks?
Wipe the chucks dry after use, keep dirt out of the air passage, and store them away from moisture. Inspect the seal, threads, and quick plugs if you notice hissing, slipping, corrosion, or a loose connection.
Are replacement valve caps available separately?
Yes, standard Schrader valve caps are widely sold separately. Confirm the valve type before buying, and remember that a cap helps block dirt and moisture but does not repair a leaking valve core.
Can the dual-head chuck reach inner dual-wheel valves?
Its extended dual-head shape can improve access to inward-facing or recessed stems. Fit still depends on the wheel opening, valve angle, and stem length, so it is not a guaranteed solution for every dual-wheel setup.
What does closed flow mean on an air chuck?
Closed flow means the chuck blocks air when it is not engaging a tire valve. Air begins flowing when the chuck presses the Schrader valve core, which helps reduce unnecessary discharge from a connected line.
The Bottom Line
The LUMITECO LTAC106B is a sensible choice when you already own an air source and want two closed-flow chuck styles in one kit. Its dual-head reach, compact ball-head chuck, metal construction, and included connection accessories are the main strengths, while the lack of a gauge and possible coupler mismatch are the main limitations. Buy it for flexible Schrader-valve access, but skip it when you need a complete inflator or a lock-on hands-free connection.
Ready to Buy?
Check the latest price, coupler details, and package contents before you decide.
