LockNFlate Locking Air Chuck Review
Disclosure: As an Amazon Associate, we earn from qualifying purchases. If you click a link on this page and make a purchase, we may receive a small commission at no extra cost to you.
A tire chuck that slips, hisses, or needs one hand to hold it in place can turn a quick pressure check into an annoying job. The LockNFlate Locking Air Chuck, Open Flow uses six steel jaws to grip a standard Schrader valve and keep the hose attached while you operate the inflator. This review explains where its straight, open-flow design works well, what equipment it fits, and why it is not the right choice for every compressor setup. Its strongest advantage is a secure hands-free connection, while its main limitation is that you must match the open-flow version to a trigger-controlled inflator, gauge, or automatic system.
Quick Verdict
Rating: 8.5/10, Recommended with caveats
Best For: Battery inflators, trigger inflator gauges, foot-pedal systems, and automatic tire inflators that use standard Schrader valves
Bottom Line: The six-jaw lock and spring-loaded TPU seal make this a strong upgrade from basic clip-on chucks when valve access is straight and clear. Buy the open-flow version only when airflow is controlled elsewhere in the system, and expect to need an adapter if your portable inflator has a screw-on hose end.
| Specification | Detail |
|---|---|
| Brand | LockNFlate by LockNLube |
| Model | LNL65001 |
| Product type | Straight locking tire air chuck |
| Flow style | Open flow |
| Valve compatibility | Standard Schrader valves with VG8/8V1 threads |
| Hose connection | 1/4-inch NPT |
| Maximum pressure | 150 PSI (10.3 bar) |
| Locking mechanism | Six steel jaws with a sliding sleeve and thumb lever |
| Core material | Hardened steel collet |
| Seal | Spring-loaded TPU seal |
| Overall length | About 3 inches (76.5 mm) |
| Valve-core use | Designed to inflate with or without the valve core installed |

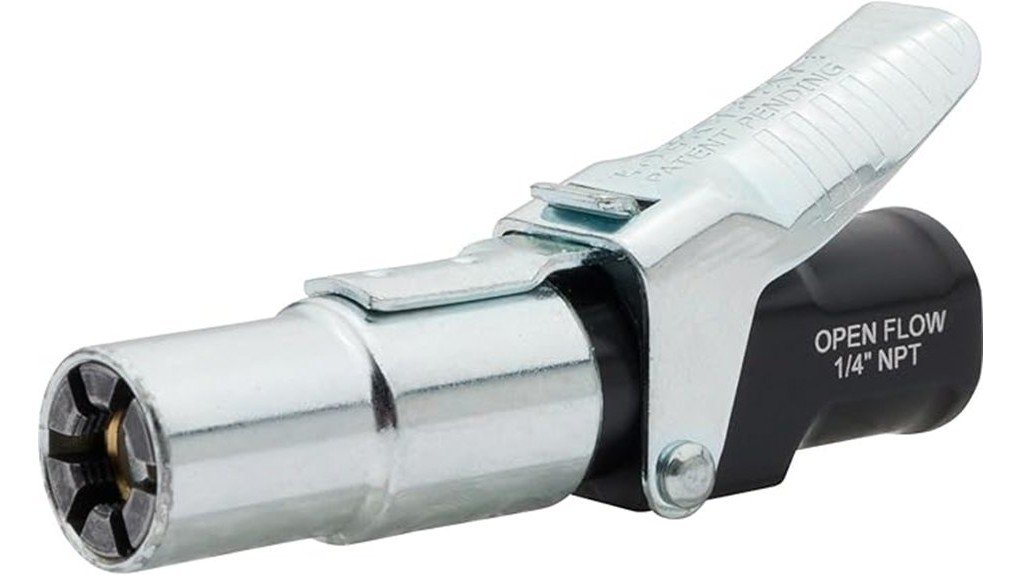

What Is the LockNFlate Locking Air Chuck?
The LockNFlate LNL65001 is a straight, open-flow air chuck that replaces the basic clip-on or screw-on end used on many tire inflators and gauges. You press the thumb lever, slide the chuck over a standard Schrader valve stem, and release the lever so six jaws grip the valve threads. That grip keeps the chuck attached without constant hand pressure.
The reviewed Amazon listing is the open-flow version. Air can pass through the chuck even when it is not connected to a valve, so the inflator, trigger gun, gauge, foot pedal, or automatic controller must stop and start the airflow. LockNFlate also makes a closed-flow model for direct compressor hoses, but that is a different configuration and should not be confused with this ASIN.
Key Takeaways
- The six-jaw locking design is more secure than a basic single-clip chuck on clean, accessible Schrader valve stems.
- The open-flow LNL65001 is intended for systems that already control airflow at the inflator, gauge, trigger, foot pedal, or automatic controller.
- A 1/4-inch NPT connection fits many shop hoses and inflator tools, but screw-on portable inflator hoses commonly need a separate adapter.
- The straight body is easy to use on exposed stems, but recessed, short, angled, or dual-wheel stems may be easier to reach with a 90-degree or extended chuck.
- The 150 PSI rating covers most passenger, light-truck, RV, trailer, motorcycle, bicycle, and shop tire tasks within the tire and equipment limits.
[Products Worth Considering]
The Steelman Straight Air Chuck Tire Inflator offers a compact, durable solution for inflating tires with a built‑in gauge and flexible hose. Its push‑on chuck eliminates the need for clamps, while the polished steel casing and brass fittings ensure long‑lasting performance. Compatible with any portable or fixed tank air compressor, it delivers precise pressure readings from 10 to 90 PSI, making it ideal for cars, trucks, and other vehicles.
The GERCHWAY tire inflator combines a durable rubber‑protected gauge with a 360° swivel air chuck for hands‑free operation and reliable sealing on any valve. Its 100 PSI range delivers ±2 PSI accuracy, making it ideal for most passenger and light‑truck tires. The battery‑free design ensures you can measure, inflate, or deflate without worrying about power loss, while the universal ¼ NPT connection fits any standard compressor.
This digital tire pressure gauge combines a sturdy pistol grip inflator with a backlit 0.1 PSI display for quick, accurate readings in any lighting condition. Its 360° swivel gauge and 20" rubber hose make it easy to use and store, while the integrated inflate/deflate trigger and ¼" NPT air inlet provide fast, reliable tire maintenance.
Who Should Buy It?
Best For
- You use a battery inflator, trigger gauge, foot-pedal valve, or automatic inflation system.
- You service several cars, trucks, trailers, bikes, or shop tires with standard Schrader valves.
- You want a hands-free connection that is less likely to wobble or pop off than a basic clip-on chuck.
Skip If
- You plan to connect the chuck directly to a pressurized compressor hose with no trigger or shutoff control.
- Your wheels have deeply recessed, very short, angled, or hidden valve stems that are difficult to approach straight-on.
- You mainly use Presta or Dunlop valves and do not want to add the correct adapter.
Before You Buy: This Amazon ASIN is the open-flow model. Do not attach it directly to a tank compressor hose that has no downstream trigger or shutoff, because air will flow whenever the line is pressurized. Choose the closed-flow model for that setup.
[Products Worth Considering]
The Milton 507KIT delivers fast, accurate tire inflation, deflation and pressure measurement with a backlit LCD gauge and 14" rubber hose. Its 3‑in‑1 design meets ANSI/ASME standards and provides readings from 0‑250 PSI with 0.1 PSI resolution. The ergonomic pistol‑grip body and brass lock‑on chuck make one‑handed operation effortless, while the auto‑off feature conserves battery life.
The GERCHWAY Digital Bike Tire Pressure Gauge offers precise ±1% accuracy across a 3–200 PSI range, fitting both Presta and Schrader valves without extra adapters. Its 16‑inch hose provides extra reach for easy inflation on bikes, motorcycles, SUVs, and cars, while the 1/4" NPT quick connector enables direct compressor attachment. Designed for quick checks, deflation, and inflation, it delivers reliable, leak‑free performance for all your tire needs.
1.Closed-Flow No-Leak: The air chuck built-in shut-off valve instantly seals airflow on disconnect, eliminates pressure loss and re-inflation, improving efficiency for trucks, garages, and RV tire service
What Makes the LockNFlate Air Chuck Different?
[Products Worth Considering]
REVOLUTIONARY DESIGN: six steel jaws lock onto any Schrader valve to create a secure, hands-free connection.
OPEN FLOW AIR CHUCK allows air to flow even when not engaged to a valve stem. Compatible with schrader valves.
QUICK-CONNECT: Patented "push-to-lock" self-locking nozzle instantly grabs onto the tire valve stem with a simple push, providing a secure, air-tight seal every time (for standard vehicle Schrader valves)
Six-Jaw Locking Grip
Many inexpensive clip-on chucks rely on one small lever or tooth to hold the valve. The LockNFlate spreads the grip across six steel jaws. That wider contact pattern helps keep the chuck centered on the valve threads and reduces the need to bend the hose or hold the fitting at a precise angle.
The benefit is most noticeable when you need both hands for a gauge or inflator. The design still depends on a clean, undamaged stem and full engagement. Corrosion, damage, or very short exposed threads can prevent a proper seal.
Hardened Steel Collet and TPU Seal
The gripping section uses a hardened steel collet, while the spring-loaded TPU seal presses against the valve opening. Steel supports repeated use, and the flexible seal helps close gaps when the chuck is seated correctly.
The chuck is rated to 150 PSI, but that does not mean every tire should be inflated to 150 PSI. You must follow the vehicle placard, tire maker, wheel maker, compressor, hose, and gauge limits. The lowest-rated part of the system sets the safe working limit.
Fit and Compatibility
The chuck fits standard Schrader valves with VG8/8V1 threads, which are common on cars, pickups, SUVs, trailers, motorcycles, many bicycles, lawn equipment, and shop air tanks. It can be used with the valve core installed or removed, which is useful for routine inflation and higher-flow service work.
The hose side uses a 1/4-inch NPT connection. Many battery and 12-volt inflators use a different screw-on hose end, so Milwaukee, DeWalt, and similar inflators may require the LockNFlate LNL65196 adapter or another correctly rated fitting.
Presta and Dunlop bicycle valves are not direct fits. You need a suitable Schrader adapter, and the final setup must still provide enough straight clearance for the jaws to lock. For motorcycles, small wheels, dual wheels, or wheels with a narrow valve pocket, compare the straight chuck with LockNFlate’s 90-degree version before buying.
Open Flow or Closed Flow: Which Is Better?
Neither style is better in every setup. The correct choice depends on where airflow is controlled.
- Choose open flow when a trigger gun, inflator gauge, foot pedal, battery inflator, or automatic system controls the air. The LNL65001 reviewed here is the open-flow version.
- Choose closed flow when the chuck connects directly to a pressurized compressor or air hose and the chuck itself must stop airflow when it is off the valve.
- Choose closed flow for multi-hose inflation kits when each chuck must remain shut until it is connected to a tire.
A common buying mistake is choosing closed flow for a portable inflator that expects an unrestricted outlet, or choosing open flow for a bare compressor hose that stays pressurized. Check how your existing hose and trigger work before ordering.
How to Use It Correctly
- Turn off or release the airflow before attaching the chuck.
- Inspect the valve stem for damage, dirt, corrosion, or a loose core.
- Press the thumb lever fully so the six jaws open.
- Push the chuck straight onto the Schrader valve until the seal seats.
- Release the lever and lightly tug the hose to confirm the jaws are locked.
- Start airflow using your trigger, gauge, pedal, inflator, or automatic controller.
- Stop airflow, press the lever fully, and pull the chuck straight off.
Pro Tip: If you hear a steady hiss, stop inflation and reseat the chuck instead of twisting it while pressurized. A straight push with the lever fully depressed gives the jaws and TPU seal the best chance to engage evenly.
How It Performs in Real Use
With Battery and Portable Inflators
The open-flow design is well suited to battery inflators that start and stop airflow electronically. Once the correct hose adapter is installed, the locking chuck removes the slow process of threading and unthreading a screw-on connector at every tire. That can reduce air loss during removal and make repeated top-offs easier.
With Garage Inflator Gauges
On a trigger-operated gauge, the chuck stays attached while you read the display and use the trigger or bleed valve. Support the hose so its weight does not bend the valve stem.
For Trucks, RVs, and Trailers
The 150 PSI rating gives the chuck enough capacity for many higher-pressure light-truck, RV, and trailer tires. The straight three-inch body works best on outward-facing stems with clear access. Hidden inner dual-wheel stems or deep wheel openings are better matched to an extended or multi-angle chuck.
For Motorcycles, Bicycles, and Equipment
It works on standard Schrader valves used by many motorcycles, bicycles, mowers, tractors, and utility machines. A brake rotor, small rim, angled stem, or tight hub area can still block the straight body.
Compatibility and Safety
Use the chuck only with serviceable Schrader stems and correctly rated air equipment. Do not exceed 150 PSI or the tire, wheel, hose, fitting, gauge, or compressor limit. Keep clear of the sidewall during inflation, especially with damaged or high-pressure tires.
A locking chuck makes hands-free inflation possible, but it does not make unattended inflation safe. Watch the gauge, stop at the specified cold pressure, and follow the tire and vehicle instructions. If a stem is cracked, loose, bent, leaking, or badly corroded, replace or repair it before relying on the chuck to hold pressure.
Cleaning and Maintenance
Dirt in the jaw slots can keep the collet from closing evenly. Remove grit with a soft brush or low-pressure air, then wipe the exterior with a lint-free cloth.
LockNLube recommends periodic Kroil, WD-40, or an equivalent on the working parts, especially in harsh environments. Use a small amount and wipe away excess. Service or replace the chuck if the jaws stick or the seal still leaks after cleaning and correct seating.
Pros and Cons
Pros
- Six steel jaws provide a secure, centered grip on standard Schrader valve threads.
- Hands-free connection is useful with gauges, triggers, pedals, and automatic inflators.
- Hardened steel collet and spring-loaded TPU seal suit repeated garage use.
- 150 PSI rating covers a wide range of passenger, truck, trailer, RV, and equipment tires.
- Works with or without the valve core installed.
Cons
- The open-flow model is wrong for a direct compressor hose with no trigger or shutoff.
- Many screw-on portable inflator hoses need a separate adapter.
- The straight body can be awkward on recessed, short, angled, or inner dual-wheel stems.
Is It Worth the Price?
The LockNFlate costs more than a basic clip-on air chuck, so its value depends on how often you inflate tires and how much a reliable connection matters. It offers stronger value for a home garage, service bay, fleet, farm, or off-road kit where you regularly move between tires and dislike holding a leaking chuck in place.
It is also worth considering when your inflator already has a trigger or automatic shutoff and a 1/4-inch NPT connection. It is less compelling for rare roadside use, a single low-pressure bicycle, or a compressor hose that would force you to buy the closed-flow version instead. The adapter cost for a screw-on portable inflator hose should be part of your buying decision.
How It Compares to Alternatives
The JACO Lightning S-Series is another compact open-flow locking chuck for standard Schrader valves and 1/4-inch NPT tools. The JACO Lightning T-Series adds a seven-inch extended neck and a multi-angle swivel, making it more useful for hidden dual-wheel or RV valve stems.
The LockNFlate LNL65001 makes the most sense when you prefer a lever-operated six-jaw lock, a straight three-inch body, and a hardened steel collet. For tight motorcycle wheels or recessed stems, LockNFlate’s own 90-degree model may fit more easily than the straight version reviewed here.
Frequently Asked Questions
Does this Amazon listing include the open-flow or closed-flow version?
ASIN B0BWNQHPSF is the open-flow LockNFlate model, LNL65001. Air passes through when the source is on, so use it with an inflator, gauge, trigger, pedal, or automatic system that controls airflow.
Will it fit all car and truck tire valves?
It fits standard Schrader valves with VG8/8V1 threads, which cover most car and light-truck applications. Fit can still be limited by a damaged stem, short exposed thread length, wheel shape, or poor straight-line access.
Can it connect directly to a Milwaukee or DeWalt inflator hose?
Not usually without an adapter. The chuck uses a 1/4-inch NPT connection, while many battery inflators end in a screw-on Schrader connector, so check whether you need the LockNFlate LNL65196 adapter or another properly rated fitting.
Does the LockNFlate work on motorcycle tires?
Yes, when the motorcycle uses a standard Schrader valve and the straight chuck can reach it. Closely spaced spokes, brake rotors, or angled stems may make the 90-degree version easier to attach.
Why does air leak when the chuck is attached?
The most common causes are incomplete seating, dirt in the jaw or seal area, a damaged valve stem, or side load from the hose. Stop airflow, press the lever fully, push the chuck straight on, and release it only after the seal is seated.
How should you clean and lubricate it?
Remove loose dirt with a soft brush or low-pressure air and wipe the body with a lint-free cloth. The manufacturer recommends periodic use of Kroil, WD-40, or an equivalent on the working parts, especially after dusty or wet service.
Who should choose a different air chuck?
Choose the closed-flow LockNFlate for a direct, always-pressurized compressor hose. Choose a 90-degree or extended chuck for tight motorcycle wheels, recessed stems, or dual-wheel access, and use a valve adapter for Presta or Dunlop bicycle valves.
The Bottom Line
The LockNFlate LNL65001 is a strong buy for you when your inflator controls airflow and you want a secure, hands-free connection on accessible Schrader valves. Its six-jaw grip, steel collet, TPU seal, and 150 PSI rating are meaningful upgrades over a basic clip-on chuck, but the open-flow design, straight body, and possible adapter requirement are real limits. Skip it or choose another version when your compressor hose has no trigger, your valve access is tight, or your equipment uses a different valve standard.
Ready to Buy?
Check the latest price, confirm the open-flow variant, and verify whether your hose needs an adapter before you decide.
