A tire chuck that slips off the valve stem or leaks air can turn a simple pressure adjustment into a frustrating job. The AstroAI 2 Pack Air Chuck is designed to solve that problem with a brass body, closed-flow design, straight tip, and locking clip for standard Schrader valves. Its ¼-18 NPT female connection makes it a practical add-on for many tire inflators and inflation gauges. The main limitation is equally important: this model is for Schrader valves and compatible air equipment, so it is not a universal chuck for every valve or hose setup.
Quick Verdict
Rating: 8.5/10
Best For: Drivers, home mechanics, and DIY users who need a lock-on closed-flow chuck for Schrader valves and a ¼-inch NPT inflator connection.
Bottom Line: The AstroAI 2 Pack Air Chuck combines a secure clip, brass construction, and a 250 PSI maximum rating in an inexpensive two-chuck package. Its biggest tradeoff is limited valve compatibility, and the straight design may not reach every recessed or awkward valve stem.
Key Takeaways
- The AstroAI package includes two closed-flow tire air chucks.
- Brass construction and a listed 250 PSI maximum pressure rating suit normal tire-inflation equipment.
- The chuck uses a ¼-18 NPT female threaded connection.
- It is designed for standard Schrader tire valves, not direct use with Presta valves.
- A locking clip holds the chuck onto the valve stem while you inflate.
- The straight-tip design is simple and compact, but awkward or deeply recessed stems may require a different chuck shape.
- The chuck is only the air connection. It does not measure pressure by itself.

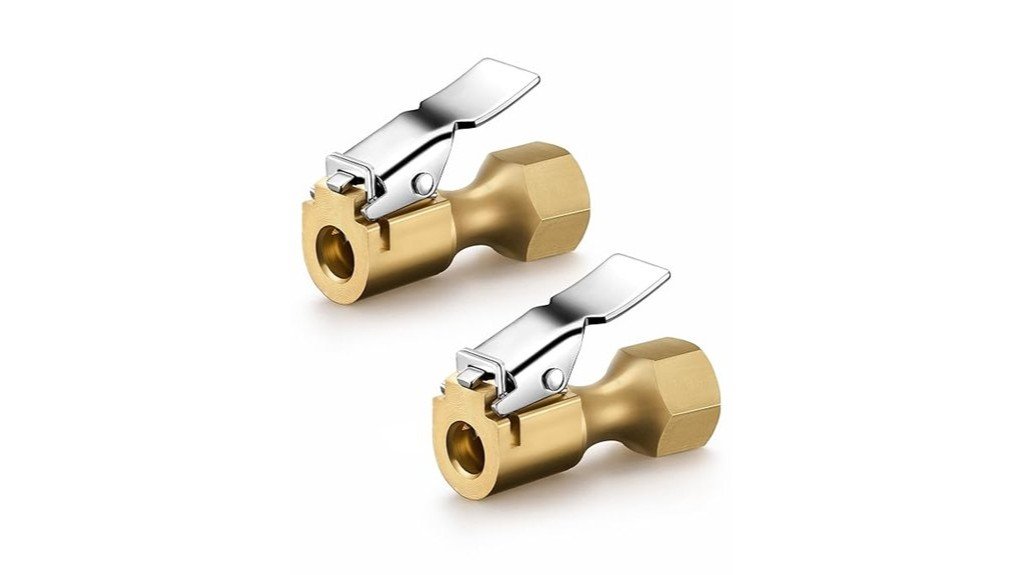

AstroAI 2 Pack Air Chuck Specifications
| Specification | Detail |
|---|---|
| Brand | AstroAI |
| Product | 2 Pack Heavy Duty Closed Flow Lock-On Air Chuck |
| ASIN | B078WVQL31 |
| Type | Closed-flow tire air chuck |
| Quantity | 2 tire chucks |
| Material | Brass components |
| Maximum Pressure Rating | 250 PSI |
| Valve Compatibility | Schrader valves |
| Air-Line Connection | ¼-18 NPT female thread |
| Tip | Straight tip |
| Attachment | Manual locking clip |
| Listed Item Weight | 3.84 oz |
| Color | Yellow |
| Warranty | 1 year |
| Best Use | Connecting compatible tire inflators or gauges to Schrader valve stems |
What Is the AstroAI Lock-On Air Chuck?
The AstroAI Lock-On Air Chuck is a small connector that sits between compatible inflation equipment and a Schrader tire valve. This package contains two chucks, so you can keep one installed on a garage inflator and save the other as a spare or use it with another compatible setup.
The key design feature is its closed-flow construction. An open-flow chuck can pass air when the air line is pressurized even before it is attached to a tire. A closed-flow chuck controls airflow through its internal valve, making this style appropriate for many tire inflators and gauge assemblies.
The chuck itself does not display or measure tire pressure. If you want a pressure reading, you still need a separate gauge or an inflator with a built-in gauge.
Before You Buy: Confirm two things before ordering: your tire uses a Schrader valve and your inflator or hose accepts a ¼-18 NPT female-threaded chuck. This model is not a direct-fit Presta chuck.
Who Should Buy It?
Best For
- Home mechanics who regularly inflate tires with Schrader valves.
- Drivers who want a clip-on connection instead of holding a basic chuck against the stem.
- Owners of compatible inflator gauges or compressor hoses that accept a ¼-inch NPT connection.
Skip If
- You need direct compatibility with Presta or another non-Schrader valve.
- Your hose or inflator uses a different fitting or thread size.
- You need an angled, dual-head, or extended chuck for difficult valve locations.
[Products Worth Considering]
Inflate Presta and Schrader bike and car tires with one compressor attachment, including tubeless setups. The digital gauge lets you monitor 2–200 PSI readings in 0.1 PSI increments with ±2 PSI accuracy, while the adjustable lever and built-in bleed button help you dial in precise pressure. Quick-connect coupler, hose, and a complete Presta service kit with spare cores and caps make it ready for fast maintenance.
The AstroAI 2 pack air chucks provide a heavy-duty, closed-flow locking design that helps keep air flowing during inflation while securely attaching to the valve stem. Built with 250 PSI rated brass components and compatible with Schrader valves, they feature 1/4" female NPT threads for a wide fit with common inflators. The straight tip and locking clip make filling tires and monitoring pressure more convenient.
This brass air chuck adapter converts a screw-on inflator connection into a lock-on quick connect for hands-free, no-leak tire inflation. Clip the chuck onto Schrader valve stems and lock it in place to simplify inflating car, bike, and motorcycle tires. Built for durability with a corrosion-resistant brass body and strong quick operation.
Materials, Build Quality, and Valve Fit
AstroAI specifies brass components for this chuck. Brass is a common choice for pneumatic fittings because it gives the connector a solid metal structure without requiring a bulky body.
The tire side is designed for Schrader valves. These are common on passenger vehicles, motorcycles, trailers, and many bicycles. A bicycle with a Presta valve needs a suitable adapter or a chuck specifically designed for Presta use.
On the equipment side, Amazon lists a ¼-18 NPT female thread. That is an important detail because the chuck does not simply clip onto any compressor hose. Your inflator assembly needs the matching threaded connection or an appropriate fitting.
How the Lock-On Clip Makes Inflation Easier
The locking clip is the most useful part of the design during routine inflation. Instead of pushing a basic chuck against the valve stem for the entire fill, you position the AstroAI chuck over the Schrader valve and engage its clip so it stays attached.
That can be especially useful when you are using one hand to operate an inflator trigger or monitor a separate gauge. A stable connection also reduces the need to keep repositioning the chuck when you move around the tire.
The clip still needs to be seated correctly. A poor angle, damaged valve stem, worn seal, or incomplete connection can allow air to escape. The locking mechanism improves attachment, but it cannot correct a damaged valve or mismatched fitting.
Pro Tip: Before pressurizing the line, push the chuck squarely onto the Schrader valve and confirm the clip has fully engaged. If you hear continued leaking, disconnect it and check the alignment and valve condition instead of forcing the chuck farther onto the stem.
What the Closed-Flow Design Means
This specific B078WVQL31 version is a closed-flow chuck. That distinction matters because AstroAI also sells open-flow versions.
A closed-flow chuck is intended to stop free airflow until its internal valve is opened during use. That makes it a logical choice for many trigger-operated tire inflators and pressure-gauge assemblies. An open-flow chuck is designed for systems where continuous airflow through the chuck is required.
Do not choose between open and closed flow based only on appearance. Match the chuck type to the equipment you already use.
Where the AstroAI Air Chuck Works Best
The AstroAI chuck makes the most sense for ordinary tire maintenance where the valve stem is reasonably easy to reach. The straight tip provides a direct approach to the valve, while the clip lets you keep the connection in place during inflation.
It can work with cars, motorcycles, trailers, utility equipment, and bicycles when those tires use compatible Schrader valves. The 250 PSI rating provides ample headroom for common tire-inflation tasks, but you should always follow the correct pressure specified for the tire and vehicle rather than inflating toward the chuck’s maximum rating.
Its biggest physical limitation is the straight design. Some dual-wheel trucks, deeply recessed wheels, decorative wheel covers, or unusually positioned stems are easier to service with an angled, extended, or dual-head chuck.
How It Performs in Real Use
Routine Car Tire Top-Offs
For an accessible Schrader stem on a car or SUV, the lock-on clip can make inflation more convenient because you do not need to keep pressing the chuck against the valve. You still need a gauge to know when the tire reaches the vehicle manufacturer’s recommended pressure.
Motorcycle and Bicycle Use
The chuck can work where the wheel uses a Schrader valve and there is enough clearance to attach the straight tip. Compact wheels or tightly positioned spokes may limit access, so check the valve location before assuming the straight design will fit.
Garage Compressor Use
When paired with compatible inflation equipment, the ¼-18 NPT female thread gives you a conventional threaded connection. The two-pack is useful if you maintain more than one inflation tool or want a backup chuck available in the garage.
Roadside and Backup Use
The chuck is small enough to keep with compatible tire-inflation equipment, but it is not a complete emergency inflator. You still need an air source, compatible hose or gauge assembly, and a way to verify the final pressure.
Setup Tips Before First Use
- Check the fitting first. Make sure your inflator accepts the chuck’s ¼-18 NPT female thread.
- Confirm the tire valve. This chuck is intended for Schrader valves.
- Inspect the sealing surfaces. Dirt, damage, or a poorly seated seal can cause leakage.
- Thread the chuck onto compatible equipment correctly. Avoid cross-threading or excessive force.
- Attach the chuck squarely. Misalignment can prevent the clip and seal from seating properly.
- Use a pressure gauge. The chuck controls the connection but does not tell you the tire pressure.
Compatibility and Safety
The AstroAI chuck has a listed maximum rating of 250 PSI, but that number is the chuck’s equipment rating, not a recommended tire pressure. Inflate every tire according to the vehicle, tire, or equipment manufacturer’s specifications.
Inspect the chuck, hose, fittings, and valve stem before use. Stop using damaged pneumatic components rather than trying to compensate for cracks, loose fittings, damaged clips, or persistent leaks.
Keep your hands clear of damaged pressurized components, and do not exceed the lowest pressure rating of the connected system. If you are unsure whether a compressor fitting, tire valve, or specialty tire setup is compatible, check the equipment manual or ask a qualified tire professional.
Pros and Cons
Pros
- Locking clip lets the chuck stay attached during inflation.
- Brass construction gives the connector a solid metal build.
- 250 PSI maximum pressure rating provides generous operating headroom.
- ¼-18 NPT female connection works with many compatible inflation setups.
- Two chucks are included, giving you a spare or a second installation.
Cons
- Designed for Schrader valves, so it is not directly compatible with Presta valves.
- The straight tip may be inconvenient on recessed or hard-to-reach valve stems.
- It is only a chuck, so you still need an air source and pressure gauge or compatible inflator.
Is It Worth the Price?
The AstroAI 2 Pack Air Chuck fits the value-focused end of tire-inflation accessories. You receive two brass closed-flow chucks with locking clips rather than a complete inflator, hose, or gauge system.
It offers strong value when you already own compatible equipment and simply need a better way to connect that equipment to Schrader valve stems. The second chuck is also useful as a spare or for another compatible tool.
It is less compelling if your main problem is reaching awkward valve stems. In that situation, paying for an angled, extended, or dual-head design may solve the problem better than buying another straight chuck.
[Products Worth Considering]
This tire air chuck with clip adapter helps you connect a vehicle inflator nozzle securely for faster, easier tire inflation. The brass locking design aims to prevent leaks and keeps the connection stable while you fill tires. Ideal for use with compatible air compressors and pumps with an 8mm connection.
This brass tire air chuck with clip adapter locks securely to the valve stem for a tight seal with minimal leakage. Simply press the locking clip, push or twist the nozzle onto the tire valve, and release the clip to keep it in place during inflation. Designed for efficient, convenient connection between a vehicle inflator hose and common tire valves, with a compatible 8mm bore hose end.
This dual-head air chuck provides quick access to both inner and outer Schrader valve stems for faster, more convenient tire inflation and pressure checks. Built from durable metal alloy and brass, it resists corrosion while delivering a secure, leak-free seal. Compatible with cars, trucks, motorcycles, and bicycles, it’s a reliable choice for inflator gauges and air compressor setups.
How It Compares to Alternatives
The main alternatives are other closed-flow lock-on chucks such as the Milton S-698W or Haltec CH-340, along with AstroAI’s own open-flow versions. The right choice depends less on brand and more on the valve type, fitting size, airflow design, and physical access your inflation setup requires.
The AstroAI 2-pack stands out if you specifically want two compact closed-flow chucks with ¼-inch NPT connections and a 250 PSI rating. If you need a different airflow type or better access to recessed stems, compare the fitting design before buying.
[Products Worth Considering]
The ETENWOLF T500 digital tire pressure gauge with inflator delivers accurate readings across a wide 0–250 PSI range, calibrated to ANSI B40.7 Grade 2A. An all-in-one tool combines gauge, air chuck, hose, inflating and controlled bleed for checking, inflating, and deflating tires on many vehicle types. It’s built for reliable use in extreme temperatures and features an illuminated backlit display with replaceable AAA batteries for convenient operation.
This LUMITECO closed flow ball air chuck set helps prevent air loss by passing air only when the chuck locks onto the tire valve. It features a built-in shut-off valve and quick-connect compatibility for fast, reliable inflating on cars, motorcycles, bikes, and trucks. With a universal 1/4 inch FNPT inlet and secure sealing on Schrader valves, it’s ideal for tire gauges, inflator hoses, and compressor attachments.
EVOULTES 2-pack closed ball tire chucks lock onto Schrader valves to help you inflate tires hands-free. The set includes both chucks with quick plug compatibility and a 2-way connection approach for easy setup to your air line or compressor. Durable metal construction supports reliable use for cars, trucks, RVs, bikes, and other Schrader-valve tires up to 250 PSI.
Frequently Asked Questions
Does the AstroAI 2 Pack Air Chuck work with Presta valves?
Not directly. This model is designed for Schrader valves. A bicycle or other tire using a Presta valve needs a suitable adapter or a chuck designed for that valve type.
Is this the open-flow or closed-flow version?
ASIN B078WVQL31 is the closed-flow 2-pack. Match that airflow design to your existing inflator or gauge rather than assuming open-flow and closed-flow chucks are interchangeable in every setup.
What thread size does the AstroAI air chuck use?
Amazon lists a ¼-18 NPT female thread. Check the connection on your inflator, gauge, or hose before ordering so you know the two parts can be joined correctly.
Can the chuck measure tire pressure?
No. The chuck only creates the air connection between compatible equipment and the tire valve. You need a separate pressure gauge or an inflator with a built-in gauge to measure PSI.
Can it handle truck tires?
The chuck is rated up to 250 PSI, but physical compatibility still matters. Trucks with difficult inner dual-wheel stems, large-bore valves, or specialized fittings may require a longer, angled, or different type of chuck.
Why might air leak around the chuck?
Common causes include incomplete engagement, poor alignment, a damaged valve stem, contamination around the seal, or a worn component. Disconnect the chuck and inspect the connection instead of trying to overcome a leak with extra pressure or force.
Does the AstroAI air chuck include a warranty?
Amazon currently lists a 1-year manufacturer warranty for this model. Check the current seller and warranty information on the product page before purchasing because support terms can change.
The Bottom Line
The AstroAI 2 Pack Air Chuck is a sensible choice when you need a compact closed-flow connector for standard Schrader valves and compatible ¼-inch NPT inflation equipment. Its brass build, 250 PSI rating, locking clip, and two-chuck package are the main strengths, while limited valve compatibility and the straight-tip design are the main reasons some buyers should choose another style.
If your existing setup matches those requirements, it earns our 8.5/10 recommendation. If you use Presta valves or regularly service deeply recessed or specialized stems, choose a chuck designed for that application instead.
