CRAFTSMAN Cordless Mini Tire Inflator Review: 150 PSI Air Pump with 6000mAh Battery
Disclosure: As an Amazon Associate, we earn from qualifying purchases. If you click a link on this page and make a purchase, we may receive a small commission at no extra cost to you.
A low-pressure warning can turn a normal drive into a search for a working gas-station air pump. The CRAFTSMAN CMXPTXA1201 gives you a compact cordless option for routine tire top-offs, plus a 12V DC cord when the internal battery is not enough. Its digital gauge, preset modes, 150 PSI maximum, and automatic shutoff make it simple to use. The main limitation is airflow: it suits passenger-car, motorcycle, and bicycle tire maintenance better than large truck tires or repeated heavy-duty inflation.
Quick Verdict
Rating: Recommended with caveats
Best For: Drivers who want a compact inflator for pressure checks, small top-offs, and roadside backup
Bottom Line: The CMXPTXA1201 combines cordless portability with a 12V backup cord, preset pressure control, and useful accessories. It is convenient for everyday tire care, but it is not a substitute for a high-volume shop compressor.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | CRAFTSMAN |
| Model | CMXPTXA1201 |
| Product type | Portable high-pressure tire inflator |
| Maximum pressure | 150 PSI |
| Power options | Built-in rechargeable battery or 12V DC vehicle cord |
| Pressure control | Digital gauge, preset target pressure, and automatic shutoff |
| Inflation modes | Car, motorcycle, bicycle, ball, and custom settings |
| Claimed airflow | Up to 36 L/min, according to the retail listing |
| Charging and output | USB-C charging and 5V/1A USB output |
| Included accessories | Carry bag, air hose, charging cord, three valve adapters, 12V cord, and spare fuse |
| Warranty | 1-year limited warranty |
| Best use | Routine top-offs for passenger-car, motorcycle, bicycle, and small inflatable tires |
Before You Buy: Battery capacity is reported differently across sources. The retail listing describes a 6000mAh battery, while the instruction manual lists 11.1V/2Ah (22.2Wh). Use the manual’s watt-hour figure when comparing battery energy, and do not assume one charge will recover several fully flat tires.
What Is the CRAFTSMAN CMXPTXA1201?
The CMXPTXA1201 is a small high-pressure inflator built for tires, sports balls, and other inflatables that use the included adapters. It runs from its internal rechargeable battery for cordless use and includes a 12V vehicle cord as a backup power source. You set a target pressure on the digital display, start the pump, and the unit stops automatically when it reaches that setting.
The design focuses on portability rather than sustained shop work. It fits more easily in a trunk or garage drawer than a tank compressor and includes a carry bag for the hose, cords, and adapters. The built-in LED light and USB output also add practical roadside utility, although neither feature replaces a proper flashlight or dedicated power bank.
Who Should Buy It?
Best For
- Drivers who want to correct small pressure drops at home or on the road
- Motorcycle and bicycle owners who need a compact digital inflator
- Households that value cordless use but want a 12V backup cord
Skip If
- You regularly inflate large truck, RV, or oversized off-road tires
- You need high-volume airflow for large mattresses, rafts, or shop work
- You want independently tested fill times instead of listing-based performance claims
Design, Controls, and Portability
The compact body combines the pressure display, directional controls, LED light, charging ports, and hose connection in one handheld unit. Preset modes reduce setup time for common items, while the custom mode lets you enter the pressure required by your vehicle or equipment. Four pressure units are available, which helps when a tire label uses BAR or kPa instead of PSI.
The included bag matters because compact inflators are easy to separate from their adapters and charging cable. Keeping the hose, valve adapters, spare fuse, USB-C cable, and 12V cord together makes the unit more useful during an actual roadside stop.
Inflation Performance and Auto Shutoff
The CMXPTXA1201 is best viewed as a top-off tool. Its 150 PSI ceiling covers the pressure range used by most passenger-car, motorcycle, and bicycle tires, but maximum pressure does not tell you how quickly a pump moves air. The listing reports airflow up to 36 L/min, yet real fill time changes with tire size, starting pressure, battery charge, temperature, and the pressure increase you need.
Automatic shutoff is the most useful control feature. After you enter the correct target, the pump stops without requiring you to watch the display continuously. You should still verify the final pressure with a trusted gauge, especially before highway driving or when accurate front-to-rear pressure differences matter.
Battery, 12V Backup, and Charging
Cordless operation is convenient for quick checks because you do not have to route a power cable through an open door or window. The 12V cord gives you a practical fallback when the battery is low or when several tires need attention. This two-source design is more flexible than a battery-only mini inflator.
The battery specification needs context. Marketplace descriptions use a 6000mAh figure, while the manual lists an 11.1V, 2Ah pack rated at 22.2Wh. Because milliamp-hour numbers depend on voltage, watt-hours provide a clearer way to compare stored energy across inflators. USB-C charging is convenient, but the included charging input is not the same as modern high-wattage fast charging.
Noise, Heat, and Storage
The retail listing reports a noise level around 78 dB, so you should expect clear mechanical noise during operation. That is normal for a compact piston inflator, but it may be disruptive in a quiet garage or late at night. Keep the unit on a stable surface and avoid covering its vents while it runs.
Store it dry, charged, and away from extreme heat. Do not leave the battery fully depleted for long periods. After a demanding inflation job, let the hose and pump cool before packing them into the carry bag, and follow the duty-cycle and temperature limits in the manual.
How It Performs in Real Use
Routine Car Tire Top-Offs
For correcting a tire that is a few PSI low, the cordless design and preset shutoff remove most of the hassle. You can connect the hose, enter the door-jamb pressure, and monitor the display while the pump works. This is the use case that best matches the unit’s size and power.
Roadside Low-Pressure Warnings
The LED light, compact bag, and 12V backup cord make the inflator useful when a warning appears away from home. It can restore pressure lost through a slow leak, but adding air does not repair a puncture, damaged sidewall, leaking valve, or unseated bead. Stop driving and seek tire service when the tire will not hold pressure or shows visible damage.
Motorcycles, Bicycles, and Sports Gear
The preset modes and adapters make it easier to switch between Schrader valves, Presta valves, and ball needles. Small-volume tires and sports balls need careful pressure settings, so confirm the recommended PSI before starting. Never rely on the 150 PSI maximum as a target.
Large Tires and High-Volume Inflatables
Large truck tires and bulky air mattresses require more air volume than a handheld tire pump is designed to deliver quickly. The CRAFTSMAN can help with smaller inflatable items, but a high-volume pump or tank compressor is the better tool for repeated large jobs.
Pro Tip: Check tire pressure when the tires are cold, then use the pressure listed on the driver-side door jamb or vehicle manual. The maximum number on the tire sidewall is not your normal inflation target.
How to Use It Correctly
- Charge and inspect the unit. Confirm that the hose, chuck, and cord are undamaged before use.
- Find the correct target pressure. Use the vehicle placard, tire label for bicycles, or manufacturer instructions for the inflatable item.
- Attach the hose securely. A loose connection can leak air and produce an unstable reading.
- Select the mode and pressure unit. Enter the recommended target, not the inflator’s maximum rating.
- Start the pump and stay nearby. Auto shutoff is helpful, but you should still watch for movement, overheating, or a poor connection.
- Recheck the pressure. Disconnect the hose, reinstall the valve cap, and confirm the reading before driving.
[Products Worth Considering]
The AstroAI L7 Air Tire Inflator refills car tires quickly with up to 150PSI max pressure and a fast 1-minute inflation claim. It includes 5 preset modes for car, motorcycle, bicycle, balls, and manual use, along with an auto shutoff to help prevent overinflation. Designed for convenience, it features a digital gauge with unit switching, a top LED light with multiple modes, and USB-C/USB ports for backup power.
The ETENWOLF S1 cordless tire inflator delivers ultra-fast inflation with up to 160 PSI and a 20 L/min airflow for quicker tire top-offs. Its 5200mAh battery and cooling system support inflating many tires and sports balls on a single charge, while the digital pressure gauge and multi-unit display help you reach the right pressure accurately. With preset modes, pressure memory, an auto-stop feature, and an LED flashlight, it’s built for easy roadside and everyday use.
Compatibility and Safety
This inflator is suitable for common high-pressure valves when you use the correct adapter. It is not designed to reseat a tire bead, repair a leak, run pneumatic tools, or replace roadside assistance. Never operate it near flammable liquids, in standing water, or where the hose or power cord can contact moving vehicle parts.
Keep children and pets away during use. Stop if the unit smells hot, changes sound sharply, or shows damage. For commercial fleets, heavy trucks, frequent off-road pressure changes, or a tire that repeatedly loses air, use equipment rated for that workload and have the tire inspected by a qualified professional.
What Buyers Commonly Like and Dislike
Buyer feedback commonly focuses on easy setup, the readable digital display, cordless convenience, and the ability to preset a target pressure. The most practical complaints concern noise, slower performance on larger jobs, and the limits of a small battery-powered pump. Those tradeoffs match what you should expect from a compact emergency and maintenance tool rather than a full-size compressor.
Overall Sentiment: Positive for routine top-offs and portability
Pros and Cons
Pros
- Battery and 12V DC power options improve roadside reliability
- Digital presets and auto shutoff simplify routine pressure correction
- Compact body, carry bag, and stored accessories improve portability
- USB-C charging, LED lighting, and USB output add emergency utility
- Adapters support car, motorcycle, bicycle, ball, and small inflatable use
Cons
- Battery capacity is presented differently in the listing and manual
- Compact airflow is not ideal for large tires or repeated heavy-duty work
- Listing-reported noise around 78 dB is noticeable in quiet settings

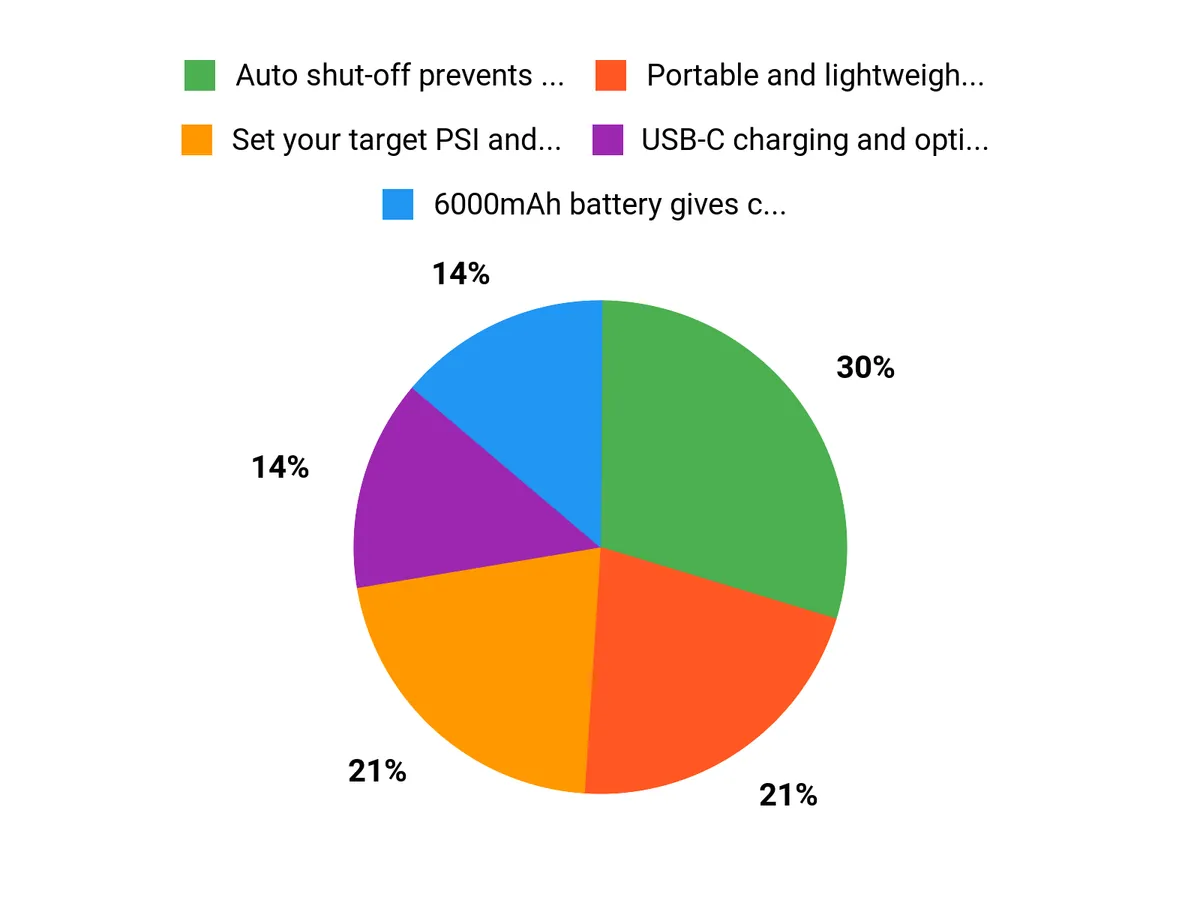

Why Buyers Choose It
The CMXPTXA1201 appeals to buyers who want one small device for tire checks, light inflation, and roadside backup. Its strongest advantage is the combination of cordless use and a 12V cord, so a low battery does not automatically make the pump unusable. The digital controls and automatic shutoff also reduce guesswork for drivers who do not want to monitor an analog gauge.
Is It Worth the Price?
This CRAFTSMAN is positioned as a practical compact inflator rather than a professional compressor. It offers strong value for the price when your priorities are portability, preset pressure control, two power options, and a complete accessory kit. Buyers with one or two passenger vehicles can get more day-to-day use from those features than from a larger compressor that stays in the garage.
It is not the best fit if speed on large tires matters more than compact storage. Before buying, compare the warranty, charging time, hose reach, and documented battery energy with other models, not just the maximum PSI printed on the listing.
How It Compares to Alternatives
The CRAFTSMAN V20 CMCE520B is a better comparison if you already own V20 batteries or want AC, 12V, and removable-battery power plus high-volume inflation. It is larger and the battery is sold separately, but it suits broader garage use. The newer CRAFTSMAN V20 CMCE521B is another option for buyers invested in the V20 platform who prefer a dedicated high-pressure inflator with a replaceable battery.
The Fanttik X8 APEX is worth comparing if you want a premium compact unit with published runtime and accuracy specifications. The CMXPTXA1201 makes more sense when the 12V backup cord, CRAFTSMAN branding, and included accessory package matter more than having the most detailed performance documentation.
Frequently Asked Questions
Can it inflate a completely flat car tire?
It can add pressure to a passenger-car tire, but recovery time and battery use rise sharply when the tire starts near zero. A tire that became fully flat may have a puncture, bead issue, or sidewall damage, so inspect it and seek professional service before driving.
Does the pump stop automatically?
Yes. You can set a target pressure on the digital display, and the inflator stops when it reaches that setting. Recheck the pressure afterward because hose removal, temperature, and gauge tolerance can affect the final reading.
What battery capacity does it have?
The retail listing uses a 6000mAh description, while the manual specifies 11.1V/2Ah, or 22.2Wh. Because the figures are presented differently, use 22.2Wh as the clearest energy rating and treat tire-per-charge claims as dependent on tire size and starting pressure.
Can it run from a vehicle outlet?
Yes. The package includes a 12V DC cord for use with a compatible vehicle power outlet. Keep the cord clear of pedals, doors, fans, belts, and hot engine parts, and follow the manual’s power instructions.
Will it work for bicycles and motorcycles?
Yes, when you use the correct valve adapter and pressure setting. Confirm the recommended pressure on the bicycle tire, motorcycle manual, or placard before inflation, especially for narrow high-pressure bicycle tires.
Is 150 PSI useful for car tires?
The 150 PSI figure is the pump’s maximum pressure capability, not the pressure you should use in a normal car tire. Inflate to the vehicle manufacturer’s recommended cold-tire PSI, usually shown on the driver-side door jamb.
Who should choose a larger compressor instead?
Choose a high-volume or tank compressor for large truck and RV tires, frequent off-road air-down and air-up cycles, bead seating, pneumatic tools, or repeated large inflatable jobs. This mini inflator is better for maintenance top-offs and emergency backup.
The Bottom Line
The CRAFTSMAN CMXPTXA1201 is a sensible choice for drivers who want compact storage, cordless convenience, digital pressure control, and a 12V backup cord. Skip it if you need sustained airflow for oversized tires or shop work. Its main strength is everyday usability, while its main limitation is the performance ceiling of a small handheld inflator.
