CRAFTSMAN V20 Air Compressor CMCE521B Review: Cordless 150 PSI Tire Inflator
Disclosure: As an Amazon Associate, we earn from qualifying purchases. If you click a link on this page and make a purchase, we may receive a small commission at no extra cost to you.
A low tire can interrupt your commute, weekend trip, or ride, but a portable inflator is only useful when it matches the batteries and tasks you already have. The CRAFTSMAN V20 CMCE521B is a compact, battery-powered high-pressure inflator made for vehicle tires, bicycle tires, sports balls, and smaller inflatables. It reaches up to 150 PSI, includes a digital pressure display, and stores its three adapters on the tool. Its main tradeoffs are equally clear: the battery and charger are sold separately, the trigger must stay pressed during inflation, and it does not offer automatic shutoff.
Quick Verdict
Rating: 8/10, recommended with caveats
Best For: CRAFTSMAN V20 owners who need a light, cordless inflator for routine tire top-ups and sports gear
Bottom Line: The CMCE521B is easy to carry, reaches 150 PSI, and keeps its adapters organized. You should compare other models if you want automatic shutoff, multiple power sources, or a battery included in the box.
CRAFTSMAN CMCE521B Specifications
| Specification | Detail |
|---|---|
| Brand | CRAFTSMAN |
| Model | CMCE521B, with CMCE521 inflator unit |
| Product type | Cordless high-pressure inflator |
| Power source | CRAFTSMAN V20 battery |
| Package type | Tool only, battery and charger sold separately |
| Maximum pressure | 150 PSI |
| Gauge | Digital PSI display; manufacturer cites a 2 PSI delta in tested applications |
| Control | Manual trigger switch; release the trigger to stop |
| Motor | Brushed |
| Hose length | 21 inches |
| Approximate tool weight | About 2 pounds without a battery |
| Included accessories | Tapered nozzle adapter, inflator needle adapter, and Presta valve adapter |
| Storage | Onboard hose and accessory storage |
| Warranty | 3-year limited warranty |
| Important duty limit | For items rated above 30 PSI, the manual states a maximum run time of 5 minutes |
What Is the CRAFTSMAN V20 CMCE521B?
The CMCE521B is a handheld high-pressure inflator in the CRAFTSMAN V20 battery system. Its air chuck connects directly to common tire valve stems, while the included Presta adapter supports many road and mountain bike valves. The inflator needle works with sports balls, and the tapered nozzle handles compatible small inflatables.
This is a focused high-pressure tool rather than a full-size compressor or high-volume inflator. It is best suited to adding air to tires and compact gear, not running pneumatic tools, seating tire beads, or quickly filling large air mattresses. The 21-inch hose, balanced D-handle, and rubber overmold help you position and hold the tool during use.
Before You Buy: This is the tool-only version. You need a compatible CRAFTSMAN V20 battery and charger, and the CMCE521B does not have automatic shutoff. You must hold the trigger, watch the pressure, and release it manually.
Who Should Buy It?
Best For
- You already own one or more CRAFTSMAN V20 batteries.
- You want a light inflator for routine car and bicycle tire top-ups.
- You need onboard storage for a Presta adapter, ball needle, and tapered nozzle.
Skip If
- You want preset pressure and automatic shutoff.
- You do not own a V20 battery and want a complete ready-to-use kit.
- You regularly inflate large, high-volume items or need a compressor for air tools.
Feature-by-Feature Review
Design and Build Quality
At about 2 pounds without a battery, the CMCE521B is easy to move between a garage shelf, vehicle, and tool bag. The D-shaped handle uses a rubber overmold, giving you a more secure grip than a smooth plastic handle. Its 21-inch hose provides enough reach for most valve positions without making the tool bulky.
The body also includes dedicated storage for the hose and adapters. That detail matters because a missing Presta adapter or ball needle can make an inflator useless for the task you packed it for. The design remains compact, though the attached V20 battery adds weight and changes how the tool balances.
Pressure Performance and Digital Gauge
The high-pressure pump is rated for up to 150 PSI, which covers normal passenger-vehicle tires, many bicycle tires, sports balls, and other compatible items. Maximum PSI does not tell you how quickly a tool fills a large tire, so you should view this model mainly as a top-up tool rather than a replacement for a shop compressor.
The digital display shows pressure while the trigger is pressed. For a steadier reading, release the trigger and allow the displayed value to settle before continuing. CRAFTSMAN describes a 2 PSI delta in its tested applications, but the manual also says the gauge is not calibrated and advises checking critical tire pressure with a separate gauge.
Battery Compatibility and Runtime
The inflator runs only from a CRAFTSMAN V20 battery. That makes it convenient when you already have compatible drills, saws, or outdoor tools, because one charged pack can serve several jobs. Buyers starting from zero need to include the cost and storage of a battery and charger in the decision.
Runtime depends on the battery capacity, pressure, tire size, temperature, and how much air each item needs. The manual gives a more useful operating limit: when the item is rated above 30 PSI, do not run the inflator longer than 5 minutes at a time.
Accessories and Onboard Storage
The standard air chuck connects to compatible tire valve stems without an adapter. The Presta adapter expands use to many bicycles, the needle fits sports balls, and the tapered nozzle works with suitable inflatables. All three accessories store on the tool, which reduces loose parts in your trunk or garage drawer.
The accessory set covers common high-pressure tasks, but it does not turn this tool into a high-volume pump. Large pool floats and air mattresses may take longer than they would with a model that has a dedicated high-volume hose.
Ease of Use
Operation is straightforward: install a charged V20 battery, connect the hose or adapter, press the trigger, and watch the display. Releasing the trigger stops airflow. The design does not require menus or preset programming, but you cannot set a target pressure and walk away.
The need to hold the trigger is manageable for quick tire corrections and sports balls. It becomes less comfortable during longer fills, and it requires your full attention to avoid overinflation.
What People Say
Buyer feedback commonly highlights the compact shape, clear display, flexible hose, and convenience for people who already own V20 batteries. The most repeated drawbacks are also predictable from the design: the package does not include a battery, and the trigger must remain pressed during inflation.
Overall Sentiment: Positive, with the strongest value for existing V20 users.
Pros and Cons
Pros
- 150 PSI maximum supports a wide range of high-pressure inflation tasks.
- Compact, roughly 2-pound tool body is easy to carry and store.
- Digital display helps you monitor pressure during inflation.
- Presta adapter, ball needle, and tapered nozzle are included.
- Onboard hose and accessory storage keeps the kit organized.
Cons
- Battery and charger are not included.
- No automatic shutoff or preset target pressure.
- You must hold the trigger, which is less comfortable for longer fills.
How It Performs in Real Use
[Products Worth Considering]
The Fanttik X10 Pro is a cordless portable tire inflator that reaches up to 150 PSI and can inflate an R15 tire in about 35 seconds for quick roadside or home top-ups. With AccuInFlate auto-stop and smart start/stop controls, it helps maintain accurate pressure and frees your hands once the target is reached. A high-visibility digital display and preset modes make it easy to set and monitor inflation for cars, motorcycles, bikes, and balls.
This portable cordless tire inflator delivers fast, efficient inflation for cars, motorcycles, bikes, and sports balls with a digital pressure gauge. Use the one-click PSI preset with auto shut-off for accurate, hands-free topping to your target pressure up to 150 PSI. It’s compact and rechargeable with a built-in emergency LED light plus valve adapters and accessories for quick, ready-to-go use.
Routine Vehicle Tire Top-Ups
For a tire that is a few PSI low, the CMCE521B is more convenient than dragging out a corded compressor. The display lets you follow the pressure, while the cordless body can move around the vehicle without a power cord. It adds air, but it cannot repair a puncture or make a damaged tire safe to drive.
Bicycle Tires and Sports Gear
The included Presta adapter and ball needle make the tool useful beyond a car. Its 150 PSI ceiling covers high-pressure bicycle applications, but you still need to follow the pressure printed on the tire or equipment. Short trigger presses give you better control on small-volume items that can overinflate quickly.
Road Trips and Emergency Backup
The compact body and onboard storage suit a trunk kit, especially when you already travel with a charged V20 battery. It can restore pressure after a slow leak so you can assess the situation, but you should still carry a reliable tire gauge and follow your vehicle’s roadside plan. A completely flat, unseated, or visibly damaged tire may require a spare tire or professional help.
Repeated or Higher-Pressure Inflation
The tool can handle higher pressure, but repeated filling creates heat. Follow the 5-minute run-time limit for items above 30 PSI, and allow the inflator to cool before more work or storage. A larger compressor is the better choice for frequent full-tire fills or shop use.
How to Use It Correctly
- Check the recommended tire pressure on the vehicle placard, bicycle tire, ball, or product instructions.
- Install a charged, compatible CRAFTSMAN V20 battery.
- Connect the air chuck directly to the valve, or attach the correct included adapter.
- Make sure the connection is tight, since an air leak can cause a false reading.
- Press and hold the trigger to inflate, then release it to stop.
- Let the display settle before reading the final PSI.
- For important vehicle checks, confirm the result with a separate tire gauge.
Pro Tip: Check vehicle tires when they are cold and use the pressure listed on the driver-door placard or in the owner’s manual, not the maximum pressure molded into the tire sidewall.
Compatibility and Safety
Use the inflator only with compatible V20 batteries and accessories rated for at least 150 PSI. Do not leave it running unattended, point compressed air at people, use the output as breathing air, or operate the tool in rain, wet conditions, or around flammable liquids and gases.
Overinflation can burst a tire, ball, or inflatable. Watch the pressure throughout the fill and follow the manufacturer’s maximum rating for the item. The manual also says the inflator can become hot during use and should cool for 30 minutes before storage.
Remove the battery before changing accessories, cleaning, or storing the tool. Clean nonmetal parts with a cloth dampened with water and mild soap only. Do not immerse the inflator or use harsh solvents.
Is It Worth the Price?
The CMCE521B offers strong value for the price when a V20 battery is already in your garage. You are paying for a focused, compact high-pressure inflator with a digital gauge, useful adapters, and organized storage rather than a larger multi-purpose compressor.
The value is less convincing for a first-time V20 buyer because the tool-only package requires a separate battery and charger. It is also not the best fit when automatic shutoff matters more than compact size and simple trigger control.
How It Compares to Alternatives
The CRAFTSMAN CMCE520B is the better comparison for buyers who want automatic shutoff, high-volume inflation, and three power options: V20 battery, 12V vehicle power, or AC power. It is more versatile, while the CMCE521B is the simpler battery-only choice for high-pressure tasks.
The RYOBI PCL001B offers a 160 PSI maximum and automatic shutoff, but it uses the RYOBI 18V ONE+ battery system. The DEWALT DCC020IB adds automatic shutoff, high-volume inflation and deflation, an LED light, and three power sources. The CMCE521B makes the most sense when you prioritize compact storage and already own CRAFTSMAN V20 batteries.
Frequently Asked Questions
Does the CMCE521B include a battery and charger?
No. CMCE521B is the tool-only version, so you need a compatible CRAFTSMAN V20 battery and charger before you can use it.
Does this inflator stop automatically at a preset PSI?
No. You must hold the trigger while it runs and release the trigger when the desired pressure is reached. Buyers who need hands-free automatic shutoff should compare the CRAFTSMAN CMCE520B or another preset-capable model.
Can the CMCE521B inflate car tires?
Yes, its 150 PSI maximum supports routine passenger-vehicle tire inflation. Use the pressure on the vehicle placard and remember that an inflator cannot repair a puncture, sidewall damage, or an unseated tire bead.
How accurate is the digital pressure display?
CRAFTSMAN describes a 2 PSI delta in tested applications. The manual says the gauge is not calibrated, so confirm critical vehicle pressure with a separate, trusted gauge.
How long can you run it continuously?
For an item rated above 30 PSI, the manual states a maximum run time of 5 minutes. Let the tool cool between demanding fills, and allow it to cool for 30 minutes before storage.
Does it work with Presta bicycle valves?
Yes. A Presta valve adapter is included and stores on the inflator. The package also includes a sports-ball needle and tapered nozzle adapter.
Is it a good choice for air mattresses and large inflatables?
The tapered nozzle can work with compatible inflatables, but the CMCE521B is a high-pressure tool rather than a dedicated high-volume pump. A dual-purpose model with a high-volume hose will usually fill large mattresses and floats more efficiently.
What warranty does CRAFTSMAN provide?
CRAFTSMAN lists a 3-year limited warranty for this model. Review the current warranty terms and keep your proof of purchase in case service is needed.

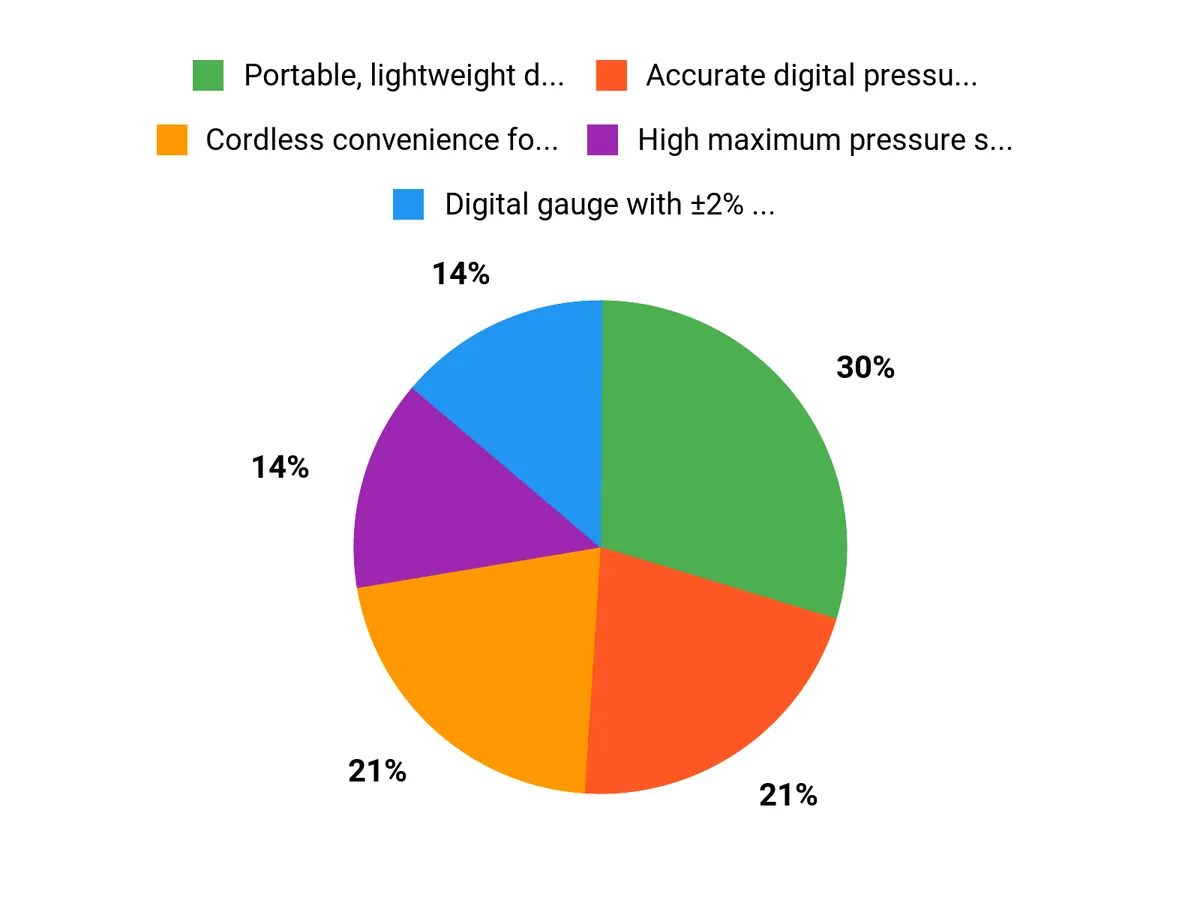

Why Customers Choose It
The strongest reason to choose the CMCE521B is ecosystem fit. When you already own a charged V20 battery, this inflator gives you a compact tool for tire maintenance, bikes, balls, and small inflatables without another charger platform. Its onboard adapter storage and simple trigger control also reduce setup time for quick jobs.
The Bottom Line
The CRAFTSMAN V20 CMCE521B is a practical buy for existing V20 owners who want a compact 150 PSI inflator for regular top-ups and portable use. Skip it if you need a battery in the box, automatic shutoff, or high-volume inflation. Its main strengths are portability, simple controls, and organized accessories, while manual trigger operation is the central limitation.
