A failed tire-pressure sensor can leave you with a warning light, missing pressure readings, or the wrong wheel position on the display. The CARORAV TPMS Sensor GM four-pack offers a lower-cost way to replace all four sensors on many compatible GM vehicles. It arrives pre-programmed for supported applications, but you still need to confirm the 315MHz frequency, match the OE number, and complete a relearn after installation. This review explains where the set fits well and where professional help may save time.
Quick Verdict
Rating: 8/10, recommended with compatibility caveats
Best For: GM owners replacing several compatible 315MHz sensors at the same time
Bottom Line: This four-pack gives you pre-programmed sensors, broad GM coverage, and a manufacturer-stated battery life of more than five years. The main tradeoff is fitment and relearn complexity, since frequency alone does not guarantee compatibility.
| Specification | Detail |
|---|---|
| Brand | CARORAV |
| Model | CAR6196-4 / TPMS Sensor GM |
| Product type | Direct-fit replacement tire pressure monitoring sensors |
| Quantity | 4 sensors |
| Frequency | 315MHz |
| Programming status | Pre-programmed, vehicle relearn still required |
| Primary OE references | 13586335, 13581558, 13598771, 13598772 |
| Vehicle families | Select Buick, Cadillac, Chevrolet, and GMC models |
| Claimed battery life | More than 5 years under normal use |
| Claimed operating range | -40°C to +125°C |
| Listed item weight | 8.1 ounces |
| Listed package size | 4.17 x 3.62 x 2.4 inches |
Key Takeaways
- The CARORAV set contains four 315MHz replacement TPMS sensors for select GM vehicles.
- Pre-programmed means the sensor protocol is prepared, not that the vehicle will recognize each sensor automatically.
- You should confirm the exact OE number, model year, trim, wheel type, and frequency before ordering.
- Most installations require tire removal or bead-breaking equipment, a suitable torque tool, and a relearn tool or scan tool.
- The set makes the most sense when several original sensors are near the same age or you are building a second wheel set.
What Is the CARORAV TPMS Sensor GM?

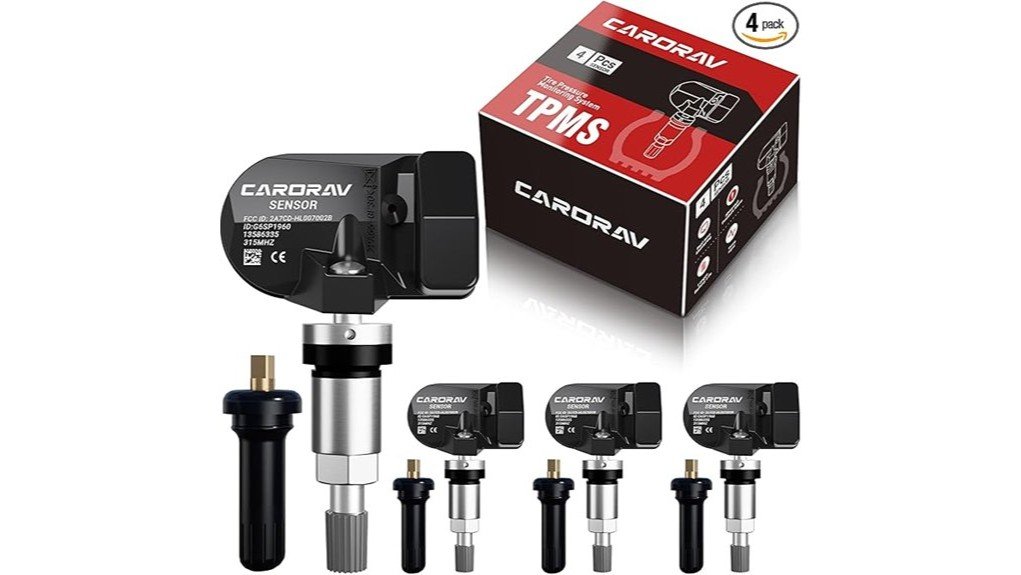

The CARORAV CAR6196-4 is a four-sensor replacement kit for vehicles that use compatible 315MHz direct TPMS hardware. Each sensor mounts inside the wheel and sends pressure data to the vehicle’s receiver after the sensor IDs have been learned.
CARORAV lists common GM replacement numbers such as 13586335, 13581558, 13598771, and 13598772. The listing also names select Buick, Cadillac, Chevrolet, and GMC vehicles, including Enclave, Encore, ATS, CTS, Colorado, Silverado, Impala, Yukon, and Sierra applications.
The broad vehicle list is useful for initial screening, but it should not replace an OE-number lookup. GM used different frequencies and sensor designs across years, trims, wheel packages, and regional markets.
Who Should Buy It?
Best For
- You have verified a matching 315MHz GM application and OE reference.
- You want to replace four aging sensors during one tire service.
- You need sensors for a compatible winter or spare wheel set.
Skip If
- Your vehicle requires 433MHz sensors or a different OE number.
- You expect installation without removing or loosening the tire bead.
- You do not have access to the correct relearn method or a qualified tire shop.
Before You Buy: Do not order by vehicle make alone. Match the OE number and 315MHz frequency, then confirm your exact year, trim, wheel package, and market using the vehicle catalog or a professional parts lookup.
Fit and Compatibility
Compatibility is the most important part of this purchase. A sensor may physically fit the valve opening but still use the wrong frequency, protocol, or relearn method for your vehicle.
Start by checking the part number printed on an original sensor, your service records, or a trusted parts catalog. Compare that information with the CARORAV listing instead of relying only on a broad model name such as Silverado, Sierra, Enclave, or Yukon.
[Products Worth Considering]
Replace your worn or missing TPMS sensors with pre-programmed, direct-fit sensors for compatible Ford, Lincoln, and select Mazda models. Each sensor comes ready to activate with a scan tool, helping restore accurate tire pressure monitoring and trouble-free installation. Built with a long-life CR2032 battery and tested before factory release, this set provides dependable performance with a one-year warranty.
Replace worn or missing TPMS sensors with CARORAV pre-programmed GM-compatible sensors for a smoother installation experience. These 315MHz replacement sensors help monitor tire pressure in real time with long battery life, and they are designed to withstand harsh temperatures. Manual or OBDII relearn may be required to reset the system for proper recognition.
Replace worn or malfunctioning GM TPMS sensors with this 433MHz pre-programmed sensor set designed for compatibility with many Chevrolet, Buick, GMC, and Cadillac models. It includes guidance for proper OBDII relearning/pairing after installation and supports reliable long-term operation with a high-performance CR2032 battery. Quality tested for durability and performance to help restore accurate tire pressure monitoring.
What to Check Before Ordering
- Frequency: Your vehicle must use a compatible 315MHz system.
- OE number: Match one of the supported replacement references.
- Model year and trim: The same model can use different sensors across production years.
- Wheel design: Confirm valve-hole fit, sensor clearance, and mounting style.
- Relearn access: Know whether your vehicle supports a manual relearn or needs a scan tool.
Using the Sensors With Aftermarket Wheels
Aftermarket wheels can work when the valve opening, sensor angle, and internal clearance match the sensor hardware. A tire technician should confirm that the sensor body will not contact the wheel barrel or tire bead during installation.
Do not force the valve assembly into a wheel that uses a different mounting design. Incorrect seating or torque can cause an air leak, damage the sensor, or create an unreliable pressure reading.
Build, Battery Life, and Temperature Range
CARORAV states that the internal battery can operate for more than five years under normal conditions. Like most direct TPMS sensors, the battery is built into the sensor body, so the complete sensor is normally replaced when the battery eventually fails.
The listed operating range is -40°C to +125°C. That range covers the temperature swings found around wheels and brakes, but battery life still depends on storage time, driving conditions, transmission frequency, and manufacturing variation.
The Amazon technical details list an 8.1-ounce item weight and a package size of 4.17 x 3.62 x 2.4 inches. Those figures describe the listed item or package, not the dimensions of one mounted sensor.
Installation and Setup
Installing an internal TPMS sensor usually requires removing the wheel, deflating the tire, and breaking the bead away from the valve area. That makes this a tire-service job rather than a simple driveway swap for most owners.
A qualified installer should inspect the wheel’s valve opening, sealing surfaces, tire bead, and mounting hardware before fitting each sensor. The fastener should be tightened to the specification supplied for the sensor and wheel, not by feel.
| Step | What to Do | Why It Matters |
|---|---|---|
| 1 | Verify OE number and 315MHz compatibility | Prevents installing an incompatible sensor |
| 2 | Remove the wheel and safely loosen the tire bead | Provides access without crushing the sensor |
| 3 | Inspect and clean the valve seating area | Reduces the risk of slow air leaks |
| 4 | Mount and torque the sensor correctly | Protects the seal and sensor housing |
| 5 | Reinstall, inflate, and leak-check the tire | Confirms safe, airtight fitment |
| 6 | Complete the vehicle-specific relearn | Assigns each sensor ID to the correct wheel position |
Pro Tip: Ask the tire shop to activate and read all four sensors before mounting them. A quick bench check can catch a non-responsive or mismatched sensor before the tire is fully reassembled.
How to Relearn the TPMS Sensors
Pre-programmed sensors still need a relearn because the vehicle must store each sensor ID and connect it to a wheel position. The exact entry steps can differ by model year, instrument cluster, key type, and diagnostic equipment.
On many compatible GM vehicles, the general sequence starts with the parking brake applied and the ignition in ON/RUN. You then enter tire-learning mode through the Driver Information Center, steering-wheel controls, key-fob procedure, or a scan tool.
- Set all tires to the pressure on the vehicle’s tire-and-loading placard.
- Enter the vehicle’s TPMS learning mode using the owner’s manual procedure.
- Activate the left-front sensor near the valve stem and wait for confirmation.
- Repeat in this order: right front, right rear, then left rear.
- Confirm the final horn chirp or completion message.
- Turn the ignition off, recheck pressures, and verify the display after the next drive cycle.
Some vehicles can use a stationary manual relearn, while others require an OBDII-capable TPMS tool or professional scanner. Follow the instructions for your exact vehicle rather than assuming one GM procedure applies to every model.
Compatibility and Safety
A working TPMS helps alert you to significant pressure loss, but it does not replace routine tire checks. Use an accurate gauge at least monthly and before long trips, and inflate each tire to the vehicle placard specification.
Do not use the maximum pressure molded on the tire sidewall as your normal target unless the vehicle manufacturer specifically calls for it. Stop and inspect the tire if the warning returns, the reading drops again, or the vehicle shows a TPMS malfunction message.
Have a professional inspect damaged valve hardware, corroded wheels, leaking beads, or tires that have been driven while underinflated. Replacing a sensor will not repair a puncture, damaged wheel, or leaking tire.
How It Performs in Real Use
Replacing Four Aging Sensors
This kit is most convenient when all four original sensors are close in age. Replacing the set during scheduled tire work can reduce the chance of paying for repeated bead-breaking labor as older batteries fail one at a time.
Building a Winter Wheel Set
A four-pack can give a compatible winter wheel set its own sensors, so you do not need to transfer hardware each season. You will still need to relearn the wheel positions after the seasonal swap if your vehicle does not store two sensor sets.
Replacing One Failed Sensor
You can install only one sensor from the package when a single unit fails, provided the part number and frequency match. The remaining sensors can serve as spares, though battery shelf time continues even while they are stored.
After a Tire Rotation
Many GM vehicles need a position relearn after a tire rotation so the dashboard shows the correct corner. The sensors may continue transmitting pressure, but the displayed wheel location can be wrong until the matching process is completed.
Pros and Cons
Pros
- Four-sensor package suits complete wheel-set replacement.
- Pre-programmed design removes a separate sensor-coding step for supported vehicles.
- Supports several common GM OE replacement references.
- Manufacturer-stated battery life exceeds five years under normal use.
- Wide listed operating-temperature range suits automotive wheel environments.
Cons
- Broad GM fitment still requires exact OE-number and year verification.
- Installation normally needs tire-service equipment.
- Every installed sensor requires a vehicle relearn, and some vehicles need a scan tool.
Is It Worth the Price?
The CARORAV four-pack is positioned as a value-focused alternative to buying four dealer-supplied sensors. It offers the strongest value when you already need tire work and can install all four sensors during the same service visit.
The set is also worth considering for a compatible second wheel set. However, the purchase can become less economical if you order the wrong frequency, pay for repeated mounting, or need extra diagnostic work because fitment was not confirmed first.
Buy it for verified compatibility and four-sensor convenience, not simply because your vehicle carries a GM badge.
[Products Worth Considering]
Replace worn or faulty TPMS sensors with this brand new 315MHz GM-compatible replacement set for select Chevy, GMC, Buick, Cadillac, and similar vehicles. These sensors are pre-programmed for your make/model/year and typically only require activation with a scan tool. Built for long service life with a high-temperature battery, they help maintain reliable tire pressure monitoring for safer driving.
Masoll TPMS sensors are designed for most GM vehicles after 2006, helping you clear tire pressure warnings with OEM-level 315/433MHz compatibility. The 4-pack includes pre-programmed sensors, but re-learning is required after installation using a GM TPMS relearn tool or scan tool. Built with a dual-antenna design and a long-life CR2050 battery, these sensors deliver reliable performance in extreme temperatures with corrosion-resistant valve construction.
The VEHLIVE SU-50448 II TPMS relearn tool provides a fast activation reset to restore accurate tire pressure monitoring after sensor replacement or tire rotation. It supports 315 MHz and 433 MHz GM series sensors and helps clear dashboard pressure warnings. With simple two-button operation and horn-confirmed relearning order, you can reprogram sensors conveniently at home.
How It Compares to Alternatives
A GM Genuine or ACDelco sensor may be the better choice when you want an OE-branded part and dealer-supported catalog matching. Dorman direct-fit sensors are another option for buyers who prefer a model-specific aftermarket part from an established automotive supplier.
Programmable options such as the Schrader EZ-sensor can cover many applications, but they normally need compatible programming equipment before relearning. The CARORAV set makes the most sense when its pre-programmed 315MHz application and OE references match your vehicle exactly.
[Products Worth Considering]
Masoll Gen 2 external TPMS sensors are a DIY replacement set of 4 for select GM vehicles made after 2006, helping you shut off the TPMS warning light quickly. Simply screw the sensors onto the tire valves and sync to your car ECU using the included EL-50448 relearn tool. Dual-frequency 315/433 MHz design provides OEM-level performance with accurate readings and replaceable batteries for about two years.
Replace worn or missing TPMS sensors with a pre-programmed 4-pack designed for compatible GM vehicles. These 315MHz sensors provide real-time tire pressure monitoring and alert you if pressure is too high, too low, or if a rapid air leak occurs. Most installations are ready with minimal relearn effort after mounting, helping improve safety and driving confidence.
Marsflex brand TPMS replacement sensors help restore tire pressure monitoring for compatible Toyota, Lexus, Scion, and Pontiac models. Each sensor is pre-programmed for the vehicle application and includes a long-life battery for up to 8 years of normal use. Designed to replace common OE numbers and requires relearning using a TPMS scan tool after installation.
Frequently Asked Questions
Does the package include four sensors?
Yes. The reviewed CARORAV CAR6196-4 listing is a four-pack. Confirm the seller and selected package on the product page before ordering because other CARORAV listings may offer different quantities.
Are the sensors ready to use without programming?
They are pre-programmed for supported applications, so they should not need universal-sensor coding. Your vehicle must still learn each sensor ID through a manual or tool-assisted relearn.
Will these sensors fit every Buick, Cadillac, Chevrolet, or GMC?
No. They fit select vehicles using compatible 315MHz hardware and supported OE numbers. Check the exact year, trim, wheel package, and original part number before buying.
Do I need an OBDII scanner or TPMS tool?
You will usually need an activation tool, and some vehicles require an OBDII-capable TPMS scanner. Check your owner’s manual or ask a tire shop which relearn procedure applies to your vehicle.
Can I install only one sensor from the four-pack?
Yes, when one sensor has failed and the replacement matches the required part number and frequency. You still need to perform the correct relearn after installation.
Can I use them with aftermarket or winter wheels?
Often, yes, but the wheel must accept the sensor’s valve hardware and provide enough internal clearance. Have the wheel and sensor checked together before the tire is mounted.
How long should the batteries last?
CARORAV states a normal battery life of more than five years. Actual life can vary with storage time, climate, driving conditions, and how often the sensor transmits.
What should I do if the TPMS light stays on?
First check every tire with an accurate gauge and correct pressure to the vehicle placard. If the light flashes, readings are missing, or the relearn fails, have the system scanned for a sensor, receiver, or installation fault.
The Bottom Line
The CARORAV TPMS Sensor GM four-pack is a practical choice when your vehicle uses a supported 315MHz sensor and you want to replace several units at once. Its pre-programmed design and stated five-year-plus battery life are useful strengths, but you should skip it when the OE number, wheel fit, or relearn method cannot be confirmed.
