Rhino USA Digital Tire Inflator Review: 0-200 PSI Gauge with Braided Hose
Disclosure: As an Amazon Associate, we earn from qualifying purchases. If you click a link on this page and make a purchase, we may receive a small commission at no extra cost to you.
Checking tire pressure should be quick, but cramped valve stems, dim garages, and hard-to-read gauges can turn a simple job into a hassle. The Rhino USA Digital Tire Inflator Gauge, model RGAUGE-0200, combines a 0-200 PSI digital gauge, inflation trigger, bleed valve, and locking chuck in one compressor attachment. Its broad pressure range and heavy-duty hardware suit cars, trucks, motorcycles, trailers, and RVs. The main tradeoff is that you still need a compatible compressed-air source, and some owners report that the display backlight can time out sooner than expected.
Quick Verdict
Rating: 8.3/10, recommended with caveats
Best For: Drivers, RV owners, and home mechanics who already have an air compressor and want one tool for checking, inflating, and bleeding tire pressure.
Bottom Line: The 200 PSI range, 2-inch backlit display, brass fittings, and braided hose make this a capable garage tool. It is not a cordless inflator, and the backlight behavior may frustrate you during longer low-light jobs.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | Rhino USA |
| Model | RGAUGE-0200 |
| Product type | Digital tire inflator gauge for an air compressor |
| Pressure range | 0-200 PSI |
| Display | Large 2-inch backlit digital display |
| Pressure units | PSI, BAR, KPA, and KGF |
| Air connection | Standard 1/4-inch NPT compressor fitting |
| Hose | 17-inch braided metal hose |
| Chuck | Solid brass locking chuck with 360-degree swivel |
| Controls | Inflation trigger, digital gauge, and pressure bleed valve |
| Power | 2 AAA batteries, included |
| Dimensions | 8 x 4 x 3 inches |
| Weight | 15.84 ounces |
| Accuracy standard | ANSI B40.1 certified |
| Vehicle compatibility | Cars, SUVs, motorcycles, trucks, trailers, and RVs with compatible valves |
| Warranty | Rhino USA lifetime replacement coverage, subject to the brand’s terms |
[Products Worth Considering]
The AstroAI 2 pack air chucks provide a heavy-duty, closed-flow locking design that helps keep air flowing during inflation while securely attaching to the valve stem. Built with 250 PSI rated brass components and compatible with Schrader valves, they feature 1/4" female NPT threads for a wide fit with common inflators. The straight tip and locking clip make filling tires and monitoring pressure more convenient.
This 2-pack closed-flow locking air chuck set delivers controlled airflow only when the valve stem is held in place, helping prevent leaks during inflation. Made for heavy-duty use with a 300 PSI maximum rating, it features a brass body for corrosion resistance and long service life. The 1/4" FNPT connection and quick-plug compatibility make it convenient for use with Schrader valve systems and common truck, RV, and auto air compressors.
The SKÖG Chuck Mates Platinum uses a patented RatchetSeal push-to-connect system for instant, secure, air-tight attachment to standard tire valve stems. It features an easy push-button release for quick disconnects, plus 360° swivel open-flow airflow to keep operation smooth and kink-free. Universal Schrader compatibility makes it ideal for cars, bikes, motorcycles, RVs, trucks, and more.
Rhino USA Inflator at a Glance
|
Buying Factor |
Verdict |
|---|---|
|
Ease of Use |
The locking chuck, trigger, bleed valve, and digital readout keep pressure adjustments in one connection. |
|
Pressure Range |
The 0-200 PSI range covers common passenger vehicles and many higher-pressure truck, trailer, and RV applications. |
|
Build Quality |
Solid brass fittings and a braided metal hose feel better suited to repeated garage use than basic plastic gauges. |
|
Visibility |
The large backlit display is easy to scan, although some users report that the light times out during longer checks. |
|
Overall |
A strong choice when you already own a compressor and want a durable inflator gauge with a broad pressure ceiling. |
What Is the Rhino USA Digital Tire Inflator Gauge?
The Rhino USA RGAUGE-0200 is an air-compressor accessory that lets you inflate a tire, read its pressure, and release excess air without repeatedly removing the chuck. It connects through a standard 1/4-inch NPT fitting and uses a locking brass chuck to hold the connection at the valve stem.
This design is aimed at drivers and home mechanics who maintain several vehicle types or need more headroom than a basic 60 or 100 PSI gauge provides. The 200 PSI limit does not mean every tire should be inflated that high. You should always use the cold-tire pressure listed on your vehicle’s door placard or in the owner’s manual.
Who Should Buy It?
Best For
- Home garages with a compressor and standard 1/4-inch NPT connections
- Owners who maintain cars, trucks, motorcycles, trailers, or RVs
- Buyers who want one tool for inflating, checking, and bleeding pressure
Skip If
- You need a cordless or 12-volt pump that produces its own compressed air
- Your compressor uses a different coupler and you do not want to add an adapter
- You prefer a battery-free analog gauge for long-term emergency storage
Before You Buy: This tool does not create air. You need a working compressor with a compatible 1/4-inch NPT setup, and you may need a coupler or adapter to match your existing hose.
Design and Build Quality
The strongest part of this inflator is its hardware. A solid brass chuck and fittings provide a more secure, wear-resistant connection than lightweight plastic parts. The 360-degree swivel helps you approach valve stems from different angles without twisting the 17-inch hose.
The braided metal hose adds protection against abrasion and routine bending in a garage or workshop. At 15.84 ounces, the tool has enough weight to feel substantial without becoming difficult to hold during a full tire-pressure check.
The body combines metal and plastic components, while a rubberized guard helps protect the gauge area from normal handling. It is still a precision measuring tool, so storing it in its bag and avoiding hard drops should help protect the display and internal sensor.
Pressure Range, Accuracy, and Controls
The 0-200 PSI range is the main reason to choose this model over a basic passenger-car gauge. It gives you room for common car and SUV pressures while also covering many truck, trailer, motorcycle, and RV applications. The gauge is certified to the ANSI B40.1 accuracy standard, which adds useful confidence when you use it correctly.
A single connection handles three jobs. Squeeze the trigger to add air, watch the digital reading, and press the bleed valve to release small amounts when you overshoot. This workflow is faster than switching between a separate inflator and gauge, especially when you are adjusting four or more tires.
Small differences between gauges can still occur because tire temperature, valve sealing, battery condition, and technique affect readings. For critical checks, compare the Rhino USA gauge with another trusted gauge and investigate any repeatable offset.
Display and Low-Light Visibility
The large 2-inch digital display is easier to read than a small pen-style gauge, and the backlight helps when you work at night or inside a dim garage. You can switch among PSI, BAR, KPA, and KGF units, which is useful when a vehicle manual or tire chart uses a different pressure format.
Some owners report that the backlight can time out or may not reactivate immediately. That does not stop the gauge from measuring pressure, but it can slow you down in poor lighting. Fresh AAA batteries and a small work light are sensible backups for roadside or evening use.
Fit and Compressor Compatibility
The inflator connects to standard 1/4-inch NPT compressor hardware. Confirm the fitting on your hose before buying because quick-connect profiles can vary, even when the threaded size is the same. An inexpensive adapter may solve a mismatch, but it adds another possible leak point.
The locking chuck is designed for standard Schrader-style tire valves used on most cars, trucks, motorcycles, trailers, and RVs. A bicycle with Presta valves needs the correct adapter. The swivel chuck helps with tight wheel openings, but very recessed or unusual valve stems may still require an extension.
How It Performs in Real Use
[Products Worth Considering]
This brass air chuck adapter converts a screw-on inflator connection into a lock-on quick connect for hands-free, no-leak tire inflation. Clip the chuck onto Schrader valve stems and lock it in place to simplify inflating car, bike, and motorcycle tires. Built for durability with a corrosion-resistant brass body and strong quick operation.
Upgrade your tire inflating setup with this 12-inch hose adapter featuring a brass locking quick-connect chuck for secure, leak-proof attachment. The extended, flexible design helps reach hard-to-access valve stems, while the self-locking mechanism enables hands-free inflation with no pressure loss. It’s compatible with most portable air compressors and inflators, making it ideal for cars, trucks, motorcycles, and bicycles.
For Daily Cars and SUVs
The large display and trigger-and-bleed controls make routine monthly checks straightforward. You can connect once, add a little air, and fine-tune the reading without repeatedly removing the chuck.
For Trucks, Trailers, and RVs
The 200 PSI ceiling gives you more range than most passenger-car gauges. The brass fittings and braided hose also suit repeated use around heavier vehicles, although actual fill speed depends on your compressor, hose, and tire volume.
For a Home Garage or Workshop
This is where the tool makes the most sense. Keeping it connected to a shop compressor turns tire maintenance into a faster single-tool process. The locking chuck also frees one hand while you watch the pressure and operate the trigger.
For Road Trips and Emergency Kits
The gauge is useful on the road only when you also carry or can access a compatible compressor. It is not a replacement for a portable pump. Store the batteries separately during very long periods of nonuse to reduce the risk of leakage.
Pro Tip: Check pressure before driving or after the vehicle has been parked for several hours. Cold-tire readings make it easier to match the pressure on the vehicle placard.
How to Use It Correctly
- Find the recommended cold-tire pressure on the driver’s door placard or in the owner’s manual.
- Connect the inflator to a compatible air-compressor hose and check the joints for obvious leaks.
- Remove the valve cap and lock the brass chuck squarely onto the valve stem.
- Read the current pressure, then squeeze the trigger in short bursts to add air.
- Use the bleed valve to release excess pressure and stop when the display matches the recommended setting.
- Remove the chuck, reinstall the valve cap, and repeat the process for the remaining tires.
Do not use the maximum pressure molded on the tire sidewall as your normal target unless the vehicle or tire manufacturer specifically directs you to do so. The sidewall value usually describes a load-related maximum, not the everyday setting for your vehicle.
Compatibility and Safety
Inspect the hose, fittings, chuck, and compressor line before each use. Stop if you see cracking, severe abrasion, loose hardware, or air leaking around a damaged part. Follow your compressor’s operating limits, and never exceed the pressure rating of the tire, wheel, hose, or connected equipment.
The manufacturer lists a California Proposition 65 warning for this product. Review the product label and manufacturer information if that warning affects your buying decision. Keep the tool and its batteries away from children, and replace or recycle used batteries according to local rules.
What Buyers Say
Buyer feedback commonly highlights the readable display, sturdy brass chuck, and braided hose. Owners also like being able to inflate and bleed pressure through one connected tool. The most repeated drawbacks in the source feedback are backlight behavior and small reading differences compared with another gauge.
Overall Sentiment: Positive, with practical caveats
Pros and Cons
Pros
- Wide 0-200 PSI range suits several vehicle categories
- Inflation trigger, digital gauge, and bleed valve work through one connection
- Solid brass chuck and braided metal hose support repeated garage use
- Large backlit display supports low-light checks and four pressure units
- 360-degree swivel chuck helps reach awkward valve-stem angles
Cons
- Requires a separate air compressor and compatible connection
- Backlight timing can be inconvenient during longer low-light jobs
- Battery dependence makes it less ideal for unattended long-term storage

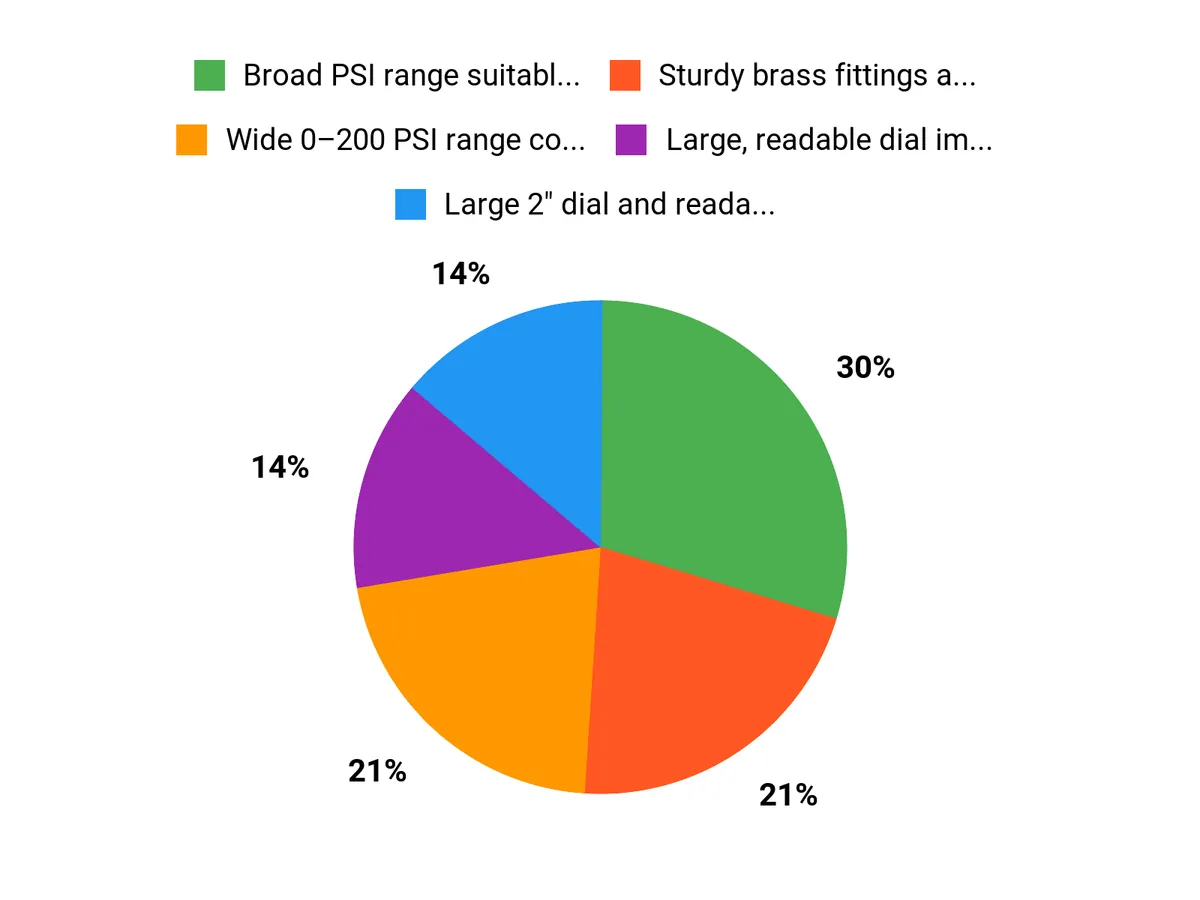

Why People Choose It
You may choose this inflator because it combines a high pressure ceiling with durable hardware and simple controls. The design works especially well when you maintain several vehicles and want to check, inflate, and fine-tune pressure without changing tools.
Is It Worth the Price?
The Rhino USA RGAUGE-0200 sits in the mid-range tier for compressor-mounted tire inflator gauges. Its value comes from the 200 PSI range, digital display, brass swivel chuck, braided hose, and integrated bleed control rather than from portability or automatic inflation.
It offers strong value for the price when you already own a compressor and check several vehicles. It is not the best fit when you need a self-powered pump, a battery-free emergency gauge, or a compact tool that stays in a glove box.
How It Compares to Alternatives
Rhino USA’s 100 PSI analog inflator is worth comparing when you prefer a battery-free glow dial and only service lower-pressure tires. The JACO FlowPro Digital 200 PSI is a closer digital alternative, while an AstroAI 250 PSI digital inflator offers a higher pressure ceiling for buyers who specifically need it.
The Rhino USA model makes the most sense when you want a 200 PSI digital gauge, brass and braided-metal construction, a swivel locking chuck, and lifetime replacement coverage from the brand.
Frequently Asked Questions
Does the Rhino USA inflator work without an air compressor?
No. It is a gauge and control attachment, not a pump. You need a compressor or another compressed-air source with a compatible connection.
What compressor fitting does it use?
The tool uses a standard 1/4-inch NPT connection. Check the quick-connect profile on your existing air hose because you may still need a matching coupler or adapter.
Can it handle cars, trucks, motorcycles, and RVs?
Its 0-200 PSI range covers many applications across those vehicle types. Confirm the required tire pressure, valve type, and the ratings of your compressor and fittings before use.
Does the digital gauge require batteries?
Yes. The display uses two AAA batteries, which are included with the product. Keep a spare pair nearby if the tool is part of your travel or emergency kit.
How long is the inflator hose?
The braided hose is 17 inches long. The 360-degree swivel chuck improves positioning, but deeply recessed valve stems may still need an extension.
How accurate is the Rhino USA RGAUGE-0200?
The model is certified to the ANSI B40.1 accuracy standard. For consistent results, measure cold tires, seat the chuck firmly, and compare it with a trusted gauge if a reading looks unusual.
What should you do if the backlight stops working?
Check the AAA batteries and their orientation first. The light may also time out during use, so press the appropriate display control or keep a work light nearby for longer checks.
Does Rhino USA provide a warranty?
Rhino USA advertises lifetime replacement coverage for its products. Read the current warranty terms and registration requirements before relying on that coverage.
The Bottom Line
The Rhino USA RGAUGE-0200 is a strong choice for drivers and home mechanics who already own a compressor and want a durable 0-200 PSI digital inflator gauge. Its brass fittings, braided hose, swivel chuck, and integrated bleed control are meaningful advantages, while compressor dependence and occasional backlight complaints are the main limitations. Skip it when you need a standalone portable pump or a battery-free gauge.
