AstroAI Digital Tire Pressure Gauge Review
Disclosure: As an Amazon Associate, we earn from qualifying purchases. If you click a link on this page and make a purchase, we may receive a small commission at no extra cost to you.
Checking tire pressure is simple, but adjusting it can become frustrating when you must switch between a gauge, air chuck, and bleed tool. The AstroAI Digital Tire Pressure Gauge combines those functions in one heavy-duty inflator gauge with a large display, braided hose, and single-handed controls. Its wide pressure range makes it useful for everything from passenger cars to higher-pressure truck and RV tires. However, it does not produce compressed air, so you still need a compatible compressor when you want to inflate a tire.
Quick Verdict
Rating: 8.5/10, recommended with minor caveats
Best For: Drivers, RV owners, and home-garage users who already own an air compressor
Bottom Line: The AstroAI gauge combines accurate digital readings, inflation, and controlled deflation in a durable package. Its main limitation is that it requires an external compressor for inflation and may feel heavier than a basic handheld gauge.
| Specification | Detail |
|---|---|
| Brand | AstroAI |
| Model | ASITIG250B |
| Part number | TIG250B-1 |
| Product type | Digital tire inflator and pressure gauge |
| Measurement range | 3-250 PSI |
| Stated accuracy | Within 1% of measured tire pressure |
| Display resolution | 0.1 PSI |
| Measurement units | PSI, bar, kPa, and kg/cm² |
| Display | White backlit LCD with integrated flashlight |
| Hose | 19.7-inch stainless braided hose |
| Air connection | 1/4-inch NPT quick-connect fitting |
| Valve compatibility | Schrader valves directly; Presta valves with the included adapter |
| Power | Two AAA batteries, included |
| Dimensions | 12.6 x 3.54 x 1.57 inches |
| Weight | 1.65 pounds |
| Main materials | Stainless steel trigger and braided hose with brass air chucks |
| Included accessories | Lock-on and twist-on chucks, Presta adapter, right-angle adapter, valve-core tool, valve caps, inflation needle, cone adapters, thread tape, batteries, and manual |
Before You Buy: This is not a portable air compressor. You can use it by itself to check pressure, but you must connect it to a compatible air compressor to add air.
Key Takeaways
- The gauge measures from 3 to 250 PSI in 0.1 PSI increments and offers four measurement units.
- Its digital display, rotating gauge body, flashlight, and long braided hose improve visibility and access.
- You can check pressure, add air, and release excess air without switching between separate tools.
- The heavy brass and stainless components suit repeated garage use but make the tool heavier than a pocket gauge.
- Inflation requires a compressor with a compatible 1/4-inch NPT connection.
[Products Worth Considering]
The AstroAI 2 pack air chucks provide a heavy-duty, closed-flow locking design that helps keep air flowing during inflation while securely attaching to the valve stem. Built with 250 PSI rated brass components and compatible with Schrader valves, they feature 1/4" female NPT threads for a wide fit with common inflators. The straight tip and locking clip make filling tires and monitoring pressure more convenient.
Keep your Milwaukee M18 inflator 2848-20 and accessories protected with a custom-fit, foam-insert hard case. The weatherproof IP67 design helps guard against water, dust, and debris for jobsite durability and safer storage. Includes organized space for the inflator, multiple batteries, charger, and essential tools for quick roadside readiness.
Upgrade your air tools with this 18-piece air compressor accessory kit featuring a 25ft recoil poly hose, 1/4" NPT quick connect fittings, and a 100 PSI tire inflator gauge. The set also includes a heavy-duty blow gun with safety and tapered nozzles, plus couplers, inflation needles, plugs, and other essentials for everyday mechanic and workshop tasks. Corrosion-resistant steel and brass components help keep connections reliable for inflating, blowing out, and general pneumatic use.
What Is the AstroAI Tire Pressure Gauge?

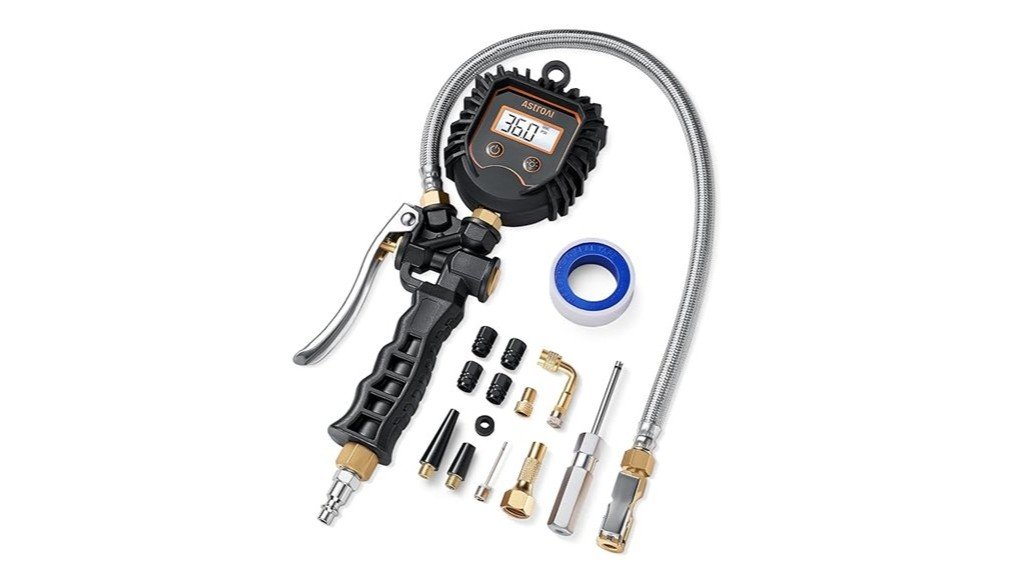

The AstroAI ASITIG250B is a digital inflator gauge that connects an air compressor to a tire valve. It combines a pressure gauge, air chuck, inflation trigger, and deflation control in one tool, so you do not need to repeatedly disconnect the compressor and check pressure with a separate gauge.
Its 3-250 PSI range covers common passenger-car pressures as well as many truck, trailer, motorcycle, bicycle, and RV applications. The included adapters also let you use it with Presta bicycle valves, sports balls, and several household inflatables.
This model makes the most sense in a home garage, workshop, service vehicle, or RV storage compartment where a compressor is already available. It is less suitable as a compact emergency tool because it cannot generate air on its own.
Who Should Buy It?
Best For
- Home-garage users who already have an air compressor
- Truck, trailer, and RV owners who need a wide pressure range
- Drivers who want one tool for checking, inflating, and releasing air
Skip If
- You need a self-contained compressor for roadside use
- You only want a small gauge that fits in a glove box
- Your compressor uses a different coupler or thread standard
AstroAI Tire Pressure Gauge Features
Digital Accuracy and Display
The gauge displays pressure in PSI, bar, kPa, or kg/cm², with readings shown in 0.1 PSI increments. AstroAI states that the unit is calibrated to read within 1% of the tire’s actual pressure across its operating range.
The large backlit LCD is easier to read than the small screen on a basic pen-style gauge. You can also rotate the gauge and chuck to place the display where it remains visible instead of twisting your wrist around the tire.
The built-in flashlight is useful when checking a tire in a dark garage, beside an RV, or at night. It helps illuminate the valve area, although it should not replace a proper work light during roadside repairs.
Build Quality and Hose Design
The AstroAI uses brass air chucks, a stainless steel trigger, and a stainless braided outer hose. The braid protects the internal hose from abrasion, kinks, and repeated contact with wheels or a garage floor.
The 19.7-inch hose gives you more room to position the display away from the wheel. That extra reach can be useful on trucks, motorcycles, and wheels with recessed valve stems. However, the complete tool weighs about 1.65 pounds, so it feels more substantial than a simple handheld pressure gauge.
The rotating dial and chuck also reduce strain on the hose connection. You can position the tool without sharply bending the hose, which may help limit wear during repeated use.
Inflation and Deflation Controls
A single-handed trigger lets you control airflow while watching the digital display. You can add air, stop, check the settled pressure, and release excess air without removing the chuck from the valve.
Pressure can fluctuate while air is actively flowing. For the clearest reading, release the trigger briefly and let the display settle before deciding whether to add or remove more air.
The gauge automatically turns off after about 15 seconds of inactivity to reduce battery drain. It uses two replaceable AAA batteries rather than a sealed rechargeable battery, which makes replacement simple.
Compatibility and Included Accessories
The main quick-connect fitting is designed for a 1/4-inch NPT air-compressor setup. Before ordering, compare the fitting with your compressor hose and coupler because some workshops use different connection standards.
Standard Schrader tire valves work with the supplied brass chucks. The package also includes a Presta valve adapter, motorcycle right-angle adapter, inflation needle, cone adapters, valve caps, valve-core tool, and thread-seal tape.
Those accessories extend the gauge beyond car tires, but you should always follow the pressure limit printed on the tire or inflatable item. The gauge’s 250 PSI capacity does not mean every item can safely accept that pressure.
How It Performs in Real Use
For Routine Car and SUV Checks
For normal vehicle maintenance, the all-in-one layout saves several steps. You can connect the chuck, check the current pressure, add air from your compressor, and bleed off a small overfill without changing tools.
The 0.1 PSI display makes small adjustments easy to see. You do not need to match the pressure to a tenth of a PSI for normal driving, but the resolution helps you bring all four tires to a consistent target.
For Trucks, Trailers, and RVs
The broad 250 PSI measurement capacity gives the gauge more headroom than many low-range passenger-car gauges. Its braided hose and rotating chuck also help when working around larger wheels or less accessible valve locations.
The supplied right-angle adapter may improve access in some layouts. Deeply recessed valves or dual-wheel setups may still require a longer extension designed for that wheel configuration.
For Motorcycles and Bicycles
Motorcycle brake components and wheel shapes can make a straight chuck difficult to position. The hose and included right-angle adapter provide more flexibility, although you should confirm that the adapter forms a complete seal before adding air.
Schrader bicycle valves connect directly. Presta valves require the included adapter. Add air in short bursts because bicycle tires contain less air volume and can increase in pressure quickly.
For Balls and Household Inflatables
The inflation needle and cone adapters allow basic use with sports balls, cushions, and similar inflatables. These accessories are convenient, but the product is primarily a tire inflator gauge rather than a dedicated low-pressure inflator.
Use a low compressor output and check the item’s recommended pressure. A high-flow shop compressor can fill a small inflatable faster than expected.
How to Use the AstroAI Tire Pressure Gauge
- Check the recommended cold-tire pressure on your vehicle’s door-jamb placard or owner’s manual.
- Confirm that the compressor hose and 1/4-inch NPT quick-connect fitting are compatible.
- Turn on the gauge and select PSI, bar, kPa, or kg/cm².
- Push or lock the air chuck firmly onto the valve stem to create a seal.
- Read the current pressure before adding air.
- Operate the trigger in short bursts until you approach the target pressure.
- Release the trigger and wait for the reading to settle.
- Release excess air in small amounts if you overshoot the target.
- Remove the chuck, reinstall the valve cap, and repeat the process on the remaining tires.
Pro Tip: Check tire pressure before driving or after the vehicle has been parked for several hours. Heat from driving raises pressure and can make a warm-tire reading higher than the vehicle’s cold-pressure specification.
[Products Worth Considering]
Upgrade your tire inflating setup with this 12-inch hose adapter featuring a brass locking quick-connect chuck for secure, leak-proof attachment. The extended, flexible design helps reach hard-to-access valve stems, while the self-locking mechanism enables hands-free inflation with no pressure loss. It’s compatible with most portable air compressors and inflators, making it ideal for cars, trucks, motorcycles, and bicycles.
EVOULTES 2-pack closed ball tire chucks lock onto Schrader valves to help you inflate tires hands-free. The set includes both chucks with quick plug compatibility and a 2-way connection approach for easy setup to your air line or compressor. Durable metal construction supports reliable use for cars, trucks, RVs, bikes, and other Schrader-valve tires up to 250 PSI.
Compatibility and Safety
Use the pressure listed for your vehicle and tire setup, not the maximum number printed on the tire sidewall. The sidewall number normally identifies a maximum operating limit rather than the recommended everyday pressure for your vehicle.
Do not exceed the gauge’s 250 PSI limit. Inspect the hose, trigger, fittings, and chuck before each use, and stop using the tool if you notice cracks, damaged threads, severe leaks, or an unstable display.
Keep the electronic gauge dry and away from corrosive liquids, fire, and excessive heat. Remove the batteries before long-term storage to reduce the risk of battery leakage.
This tool can correct normal underinflation, but it cannot repair a puncture, leaking valve, bent wheel, or damaged tire. Have a tire professional inspect any tire that repeatedly loses pressure.
Pros and Cons
Pros
- Measures from 3 to 250 PSI in four pressure units
- Combines pressure checking, inflation, and deflation
- Large backlit LCD with 0.1 PSI resolution
- Durable brass fittings and stainless braided hose
- Includes adapters for bicycles, motorcycles, balls, and inflatables
Cons
- Does not include or replace an air compressor
- Heavier and less portable than a pocket pressure gauge
- Fitting compatibility should be checked before purchase
Is It Worth the Price?
The AstroAI sits above a basic handheld gauge because it replaces several garage tools. You get a digital gauge, air chuck, inflation control, deflation control, braided hose, and a broad accessory kit in one package.
It offers strong value for the price when you regularly maintain multiple cars, motorcycles, trailers, or RV tires and already own a compressor. The durable fittings and wide pressure range also make it better suited to repeated use than a lightweight emergency gauge.
It is not the best fit when you only check tire pressure occasionally or need a self-contained roadside inflator. In those cases, a compact digital gauge or portable compressor may be more practical.
How It Compares to Alternatives
The JACO FlowPro Digital Tire Inflator Gauge and Rhino USA Digital Tire Inflator Gauge are two alternatives worth comparing. Both are available in versions rated to 200 PSI, while this AstroAI model extends its stated measurement range to 250 PSI.
A simple handheld gauge will cost less and take up less space, but it cannot add or release air through a compressor. A portable electric inflator creates its own air and works better for roadside emergencies, although it is usually bulkier and may inflate large tires more slowly than a shop compressor.
The AstroAI makes the most sense when you want durable hardware, a broad pressure range, and one-handed compressor control in a home or workshop setup.
Frequently Asked Questions
Does the AstroAI gauge work without an air compressor?
You can use it without a compressor to check existing tire pressure. You need a connected air compressor when you want the tool to add air.
Does it fit a 1/4-inch NPT compressor connection?
The package includes a 1/4-inch NPT quick-connect fitting. Compare it with your existing compressor coupler because connector profiles can differ even when the thread size is similar.
Can it inflate a Presta bicycle valve?
Yes, the accessory kit includes a Presta valve adapter. Install the adapter securely and use short bursts of air because bicycle tires can gain pressure quickly.
Why does the pressure reading change during inflation?
Airflow through the hose can cause the displayed number to fluctuate. Release the trigger and allow the reading to settle before deciding whether the tire needs more air.
Is the hose long enough for trucks and RVs?
The 19.7-inch hose should reach many standard truck and RV valve stems. Deeply recessed valves and some dual-wheel arrangements may still require a suitable extension.
What batteries does the gauge use?
It uses two replaceable AAA batteries, and a pair is included. The 15-second automatic shutoff helps reduce unnecessary battery use.
Can it replace a vehicle’s TPMS system?
No. It provides a manual pressure reading but does not continuously monitor the tires or communicate with your vehicle. Use it to confirm pressure and investigate a TPMS warning.
Who should skip this AstroAI inflator gauge?
Skip it when you do not own a compatible compressor or need an all-in-one portable pump. A compact pressure gauge or battery-powered inflator will suit those situations better.
The Bottom Line
The AstroAI Digital Tire Pressure Gauge is a practical choice when you already have an air compressor and want one durable tool for measuring, inflating, and releasing tire pressure. Its wide range, readable display, braided hose, and included adapters support cars, motorcycles, bicycles, trucks, trailers, and RVs.
Buy it for a home garage or workshop where accuracy and control matter. Skip it when portability is your priority or you need a device that creates compressed air without separate equipment.
