Heavy Duty Tire Inflator Review
Disclosure: As an Amazon Associate, we earn from qualifying purchases. If you click a link on this page and make a purchase, we may receive a small commission at no extra cost to you.
Checking pressure on a truck, RV, or dual-wheel vehicle gets frustrating when the valve stem sits too deep for a normal air chuck. The EVOULTES EVAC23C Tire Inflator with Pressure Gauge tackles that problem with a 16.5-inch dual-head chuck, a 10-120 PSI gauge, and an all-metal body. It combines pressure checking, inflation, and controlled air release in one compressor-connected tool. Its long reach is a strong fit for trucks and RVs, but the 120 PSI upper limit and need for a separate air source mean it is not right for every setup.
Quick Verdict
Rating: 8/10, Recommended with caveats
Best For: Truck, RV, bus, and garage users who need better access to dual-wheel or recessed Schrader valves.
Bottom Line: The EVOULTES EVAC23C combines a useful 16.5-inch dual-head chuck with a 10-120 PSI gauge and metal construction. Its main limitation is that it requires an external air compressor or pump, and its specified gauge range does not cover pressures below 10 PSI or above 120 PSI.
| Specification | Detail |
|---|---|
| Brand | EVOULTES |
| Model | EVAC23C |
| Part number | C1644 |
| Product type | Tire inflator with pressure gauge for an external air source |
| Gauge range | 10-120 PSI |
| Stated accuracy | Within 2% of tire pressure |
| Chuck length | 16.5 inches |
| Chuck design | Dual head with swivel base, straight foot and 30° reverse chuck |
| Material | Metal body with 7.8 mm brass trigger core and brass air-release valve |
| Item weight | 14.4 ounces |
| Air connection | Standard US 1/4-inch NPT |
| Valve compatibility | Schrader valves |
| Vehicle applications | Semi trucks, trucks, RVs, buses, cars, motorcycles, and bicycles with Schrader valves |
| Included accessories | 1/4-inch FNPT quick plug, sealing tape, four valve-core caps, and multi-function valve-core wrench |
| Warranty | 1-year manufacturer warranty |
Key Takeaways
- The EVOULTES EVAC23C combines pressure checking, inflation, and air release in one compressor-connected tire tool.
- Its specified gauge range is 10-120 PSI, with claimed readings within 2% of actual tire pressure.
- The 16.5-inch dual-head chuck is designed to reach inner and outer valves on trucks, RVs, buses, and dual-wheel setups.
- The all-metal design includes a 7.8 mm brass trigger core and a side-mounted brass air-release valve.
- A standard 1/4-inch NPT connection and included quick plug make it suitable for common compressor and air-line setups.
- This is not a self-powered portable compressor. You still need a compatible compressor, air pump, or air line.
[Products Worth Considering]
EVOULTES heavy duty tire inflator with an integrated gauge delivers accurate pressure readings from 10–120 PSI, helping you inflate, deflate, and check tires in one tool. The 16.5-inch extended dual-head air chuck with swivel base reaches hard-to-access dual wheel valves on trucks and RVs. A brass trigger core and side-mounted air release valve make operation smooth, with standard 1/4" NPT threading and quick-connect compatibility for easy setup.
The LUMITECO 12" extended reach dual head air chuck is designed for hard-to-reach truck, RV, and bus dual wheels, making tire inflation quick and easier. It features a straight foot lock-on chuck for inner tires and a 30° reverse chuck for outer valves, with a closed-flow design that only allows air when engaged. Built with a brass body and ergonomic rubber grip, it connects easily using a 1/4" FNPT thread plus a standard quick plug for compressor-ready inflation.
The SKÖG Chuck Mates Platinum uses a patented RatchetSeal push-to-connect system for instant, secure, air-tight attachment to standard tire valve stems. It features an easy push-button release for quick disconnects, plus 360° swivel open-flow airflow to keep operation smooth and kink-free. Universal Schrader compatibility makes it ideal for cars, bikes, motorcycles, RVs, trucks, and more.
What Is the EVOULTES EVAC23C?
The EVOULTES EVAC23C is a tire inflator gauge designed to connect to a separate compressed-air source. Instead of using one tool to add air and another to check pressure, it lets you inflate, read pressure, and bleed excess air from the same handheld unit.
Its main selling point is reach. The 16.5-inch dual-head chuck is aimed at vehicles where the valve stem may sit behind a wheel opening or on the inner wheel of a dual-wheel setup. A swivel base, straight-foot chuck, and 30° reverse chuck give you more options when approaching the valve from different directions.
Before You Buy: This EVOULTES tool does not generate compressed air by itself. You need an air compressor, air pump, or compatible shop air line. Also check that the 10-120 PSI gauge range covers the pressures you need to measure.
Who Should Buy It?
Best For
- Truck, RV, and bus owners who regularly deal with recessed or dual-wheel valve stems.
- Home-garage users who already own a compressor with a compatible 1/4-inch air connection.
- Drivers who want one tool for pressure checking, adding air, and releasing excess pressure.
Skip If
- You need a battery-powered or 12V inflator that creates its own air pressure.
- You routinely measure tires below 10 PSI or above the specified 120 PSI gauge range.
- You mainly want a compact tool for occasional passenger-car checks and do not need an extended dual-head chuck.
Why This Tire Inflator Handles Heavy-Duty Jobs
The EVAC23C is better suited to heavy vehicles than a short basic chuck because its 16.5-inch reach reduces how far you need to put your hand inside a wheel opening. That matters most with dual rear wheels, where the inner valve can be difficult to reach directly.
The gauge covers 10-120 PSI, a useful range for many cars, RVs, trucks, and similar applications. EVOULTES states that the reading is accurate within 2% of actual tire pressure. You can check the reading, add air from your connected compressor, and use the release valve when you need to reduce pressure.
At 14.4 ounces, the tool remains light enough for routine garage use while using a metal body rather than a lightweight plastic housing.
Pressure Gauge and Inflation Control
The built-in gauge is one of the EVAC23C’s most practical features because it removes the need to disconnect the air chuck every time you want to check your progress. Its specified measuring range starts at 10 PSI and ends at 120 PSI.
The brass air-release valve sits on the side of the inflator so you can bleed excess pressure without removing the chuck. This is useful when you slightly overshoot your vehicle’s target pressure and want to make a controlled adjustment.
The tool’s 7.8 mm brass trigger core is part of an all-metal inflator structure. The metal and brass construction is a useful advantage for a tool that may be handled repeatedly in a garage, service vehicle, or workshop.
How the Dual Head Air Chuck Reaches Dual Wheels
The 16.5-inch dual-head air chuck is the feature that separates this inflator from many shorter passenger-car tools. EVOULTES pairs the long chuck with a swivel base so you can change the approach angle when a valve is partially blocked by the wheel.
The extended chuck uses two working ends: a straight-foot chuck for inner or hard-to-reach valves and a 30° reverse chuck for outer wheels.
- Inner dual wheels: use the straight-foot end when the valve points away from you or sits deeper inside the wheel.
- Outer wheels: the 30° reverse chuck can make an outward-facing valve easier to engage.
- Awkward valve angles: use the swivel base to position the chuck without forcing the valve stem sideways.
The benefit is mainly access. A good connection also helps reduce the amount of air lost while you are trying to seat the chuck on a recessed valve.
Pro Tip: Before adding air to a dual-wheel vehicle, identify which end of the chuck gives you the straightest approach to each valve. Avoid pushing sideways against the valve stem just to make the chuck reach.
Materials and Build Quality
EVOULTES lists the EVAC23C as a metal tire inflator. The internal trigger core is 7.8 mm thick and made from brass, and the pressure-release valve is also brass.
That construction is more appropriate for repeated air-line use than a tool built around a thin plastic trigger assembly. It also gives the inflator a relatively simple design with no batteries, charging ports, or electronic controls to manage.
The tool weighs 14.4 ounces. That gives you a substantial metal assembly without turning the inflator into an especially heavy item to hold while working around several tires.
Fit and Compressor Compatibility
The inflator uses a standard US 1/4-inch NPT thread. EVOULTES includes a 1/4-inch FNPT quick plug so you can connect the tool to a compatible female quick coupler on an air line.
You should still check the coupler style used by your compressor before buying. The NPT thread size tells you the threaded connection, but quick-connect profiles can vary between air systems.
The chuck is intended for Schrader valves. That covers the valve type commonly found on cars, trucks, RVs, buses, motorcycles, and many bicycles. A bicycle using a Presta valve would need an appropriate adapter that is not listed as part of this kit.

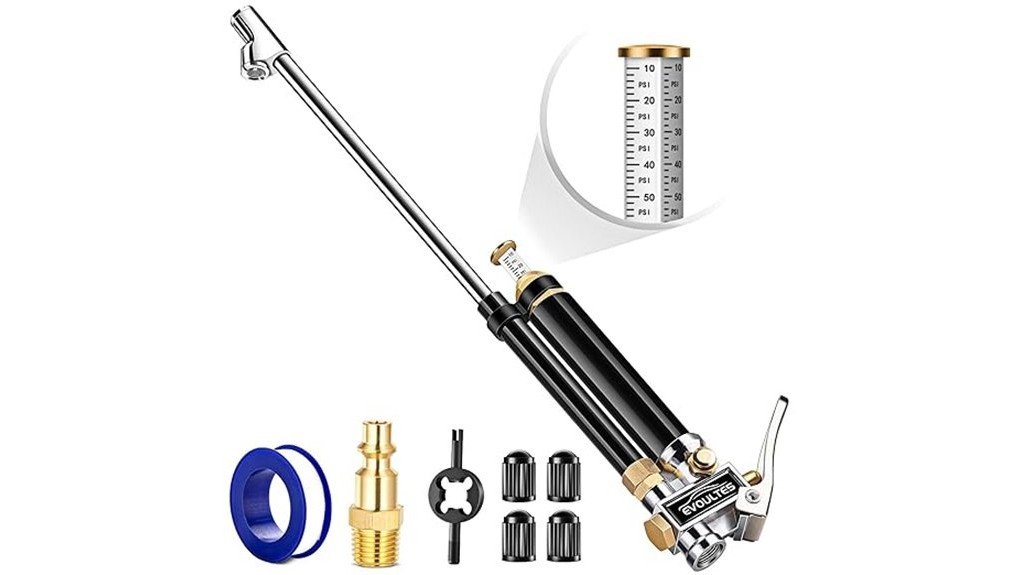

What’s Included in the Tire Inflator Kit
The package goes beyond the inflator itself. EVOULTES lists four valve-core caps, one multi-function valve-core wrench, one 1/4-inch FNPT quick plug, and sealing tape.
- Tire inflator with pressure gauge: handles pressure checking, inflation, and air release.
- 16.5-inch dual-head chuck: provides access to inner, outer, and recessed Schrader valves.
- 1/4-inch FNPT quick plug: helps connect the inflator to a compatible air-line coupler.
- Sealing tape: intended for the threaded air connection to help prevent leakage.
- Four valve-core caps: useful as replacements for missing valve-stem caps.
- Multi-function valve-core wrench: adds a basic valve-service tool to the kit.
The included pieces make the package more convenient for a garage setup because you do not immediately need to source a basic quick plug and thread-sealing material separately.
[Products Worth Considering]
The AstroAI 2 pack air chucks provide a heavy-duty, closed-flow locking design that helps keep air flowing during inflation while securely attaching to the valve stem. Built with 250 PSI rated brass components and compatible with Schrader valves, they feature 1/4" female NPT threads for a wide fit with common inflators. The straight tip and locking clip make filling tires and monitoring pressure more convenient.
This brass air chuck adapter converts a screw-on inflator connection into a lock-on quick connect for hands-free, no-leak tire inflation. Clip the chuck onto Schrader valve stems and lock it in place to simplify inflating car, bike, and motorcycle tires. Built for durability with a corrosion-resistant brass body and strong quick operation.
Setup Tips Before First Use
- Confirm your pressure needs. Make sure the tires you plan to service fall within the gauge’s specified 10-120 PSI range.
- Check your compressor fitting. Confirm that your air hose or coupler works with the included 1/4-inch connection.
- Seal threaded connections correctly. EVOULTES includes sealing tape for the air-line connection to help reduce leakage.
- Choose the correct chuck end. Use the straight or reverse end according to the direction of the valve stem.
- Check pressure before adding air. This gives you a starting point and helps prevent unnecessary overinflation.
Compatibility and Safety
Use the pressure recommended by your vehicle or tire application rather than guessing from the size of the tire. For road vehicles, the vehicle manufacturer’s placard or owner’s manual is the proper starting point for normal cold-tire pressure.
Do not treat the EVAC23C’s 120 PSI gauge limit as a recommended inflation pressure. It is the upper end of the specified gauge range. Your tire, wheel, valve, compressor, and vehicle may have different operating limits.
Because the gauge range begins at 10 PSI, this tool is not the best choice when accurate measurement below 10 PSI is important. For very low-pressure applications, use a gauge designed specifically for that range.
How It Performs in Real Use
For Dual-Wheel Trucks
This is the clearest use case for the 16.5-inch chuck. The straight and reverse ends let you approach inner and outer valve stems from different directions, while the swivel base gives you more positioning freedom than a fixed short chuck.
For RV Maintenance
RV owners who already carry or use a suitable compressor can check and adjust multiple tires without switching repeatedly between a separate gauge and air chuck. The 10-120 PSI range also covers many common road-tire pressures, although you should always confirm the requirement for your specific RV and tires.
For Cars and Motorcycles
The Schrader-compatible chuck can also be used on ordinary passenger cars and motorcycles. It works, but the long dual-head design may be more equipment than you need if every valve on your vehicle is already easy to reach.
For Home Garage Compressor Setups
The standard 1/4-inch NPT connection makes the EVAC23C a logical addition to a compressor-based garage. Once the correct quick fitting is installed, the same handheld tool can check pressure, add air, and bleed excess pressure.
Pros and Cons
Pros
- 16.5-inch dual-head chuck is well suited to recessed and dual-wheel valve stems.
- Checks pressure, adds air, and releases excess air with one tool.
- All-metal construction includes a 7.8 mm brass trigger core and brass release valve.
- Standard 1/4-inch NPT connection works with common compressor-based air systems.
- Includes quick plug, sealing tape, valve caps, valve-core wrench, and a 1-year manufacturer warranty.
Cons
- It cannot inflate a tire without a separate compressor, pump, or shop air source.
- The specified pressure range starts at 10 PSI and stops at 120 PSI.
- The extended chuck is most useful for trucks and RVs, so it may feel oversized for simple passenger-car maintenance.
Is It Worth the Price?
The EVAC23C makes the most sense as a value-focused garage or vehicle-maintenance tool for someone who already owns a compressor. You get a pressure gauge, inflator control, extended dual-head chuck, air-release valve, quick plug, sealing tape, valve caps, and a valve-core wrench in one package.
The value is less convincing if you still need to buy a compressor just to use it. In that situation, a complete powered tire inflator may be the simpler purchase. It is also not the best fit if your main priority is a digital display or a measuring range beyond 120 PSI.
How It Compares to Alternatives
The Milton S-506 is worth comparing if you want a traditional professional-style dual-head inflator gauge with a wider 10-160 PSI range and replaceable gauge and valve cartridges. The AstroAI ATG250 is a different option for buyers who prefer a digital display and a pressure range reaching 250 PSI.
The EVOULTES EVAC23C makes the most sense when your priority is its long 16.5-inch dual-head reach, straightforward metal construction, 10-120 PSI range, and bundled valve-service accessories. Your choice should depend more on the pressure range, chuck design, and display style you need than on extra features you may never use.
Frequently Asked Questions
Does the EVOULTES EVAC23C include its own air compressor?
No. It is an inflator gauge and air chuck that connects to a separate compressor, air pump, or air line. The standard 1/4-inch NPT connection and included quick plug are designed for that setup.
Is the inflator suitable for dual-wheel trucks and RVs?
Yes. The 16.5-inch extended dual-head chuck was designed specifically to improve access to dual wheels and hard-to-reach valve stems. The straight foot is intended for inner or recessed valves, while the 30° reverse end is useful for outer wheels.
Does the pressure gauge work below 10 PSI?
The specified gauge range begins at 10 PSI, so you should not rely on it for accurate low-pressure measurements below that point. Choose a dedicated low-pressure gauge if that range matters for your tires.
Can it be used on bicycles and motorcycles?
Yes, when the tire uses a Schrader valve and its required pressure falls within the tool’s range. A bicycle with a Presta valve would need a suitable adapter.
How do you release excess tire pressure?
The EVAC23C has a brass air-release valve mounted on the side of the inflator. Pressing it lets you bleed air when the tire pressure is higher than your intended setting.
What accessories come with the inflator?
The listed accessories include four valve-core caps, a multi-function valve-core wrench, a 1/4-inch FNPT quick plug, and sealing tape. These cover several common setup and basic valve-maintenance needs.
Who should skip the EVOULTES EVAC23C?
Skip it if you need a self-powered compressor, routinely work outside the 10-120 PSI gauge range, or want a digital pressure display. It is most useful when extended valve access and compressor-based inflation are your priorities.
The Bottom Line
The EVOULTES EVAC23C is a practical choice for truck, RV, bus, and garage users who need a long dual-head chuck and already have a suitable compressed-air source. Its strongest feature is the 16.5-inch reach combined with pressure checking, inflation, and air release, while its main limitations are the 10-120 PSI gauge range and lack of a built-in compressor.
For those buyers, the metal construction, brass controls, included fittings, and 1-year manufacturer warranty make it a well-rounded 8/10 recommendation. Buyers needing a powered portable inflator, very low-pressure gauge, higher pressure range, or digital display should compare other options first.
