How To Find the Bolt Pattern on a Toyota Tacoma
Finding the bolt pattern on a Toyota Tacoma is simple once you know what to measure: count the lug holes, then measure the diameter of the circle they form. For most newer Tacoma owners, the key number is 6×139.7mm, also written as 6×5.5 inches, but older 2WD models can be different. Use the guide below to confirm your year, measure correctly, and avoid wheel-fitment mistakes.
Quick Answer
Most Toyota Tacoma 6-lug models use a 6×139.7mm bolt pattern, also called 6×5.5 inches. For 2024-present Tacoma models, current fitment references list 6×139.7mm with about a 95.1-95.2mm hub bore and M14x1.5 wheel hardware. Always confirm lug nut torque and lug-seat type in your owner’s manual or with a Toyota dealer before installing wheels.
Key Takeaways
- The common Tacoma 6-lug bolt pattern is 6×139.7mm, the same as 6×5.5 inches.
- Some older 2WD Tacoma models use 5×114.3mm, so never assume every Tacoma wheel is interchangeable.
- For a 6-lug wheel, measure from the center of one lug hole to the center of the hole directly across from it.
- Bolt pattern is only one part of fitment; also check hub bore, lug thread, lug-seat type, wheel offset, brake clearance, and tire size.
- If a wheel does not seat flat, vibrates, rubs, or requires questionable adapters, stop and verify the fitment before driving.
At a Glance
| Time Required | 5-15 minutes |
| Difficulty | Easy |
| Tools Needed | Tape measure or caliper, flashlight, lug wrench if removing a wheel, torque wrench for reinstallation |
| Cost | Free if measuring at home; possible cost for a fitment check if using a tire shop |
Why Knowing Your Bolt Pattern Matters
Your Tacoma’s bolt pattern tells you whether a wheel can physically bolt to the hub. A pattern like 6×139.7mm means the wheel has six lug holes arranged around a 139.7mm pitch circle diameter. The same pattern is often written as 6×5.5 inches.
Getting this wrong is not a small cosmetic mistake. A wheel with the wrong bolt pattern may not seat correctly, may vibrate, or may place unsafe stress on the studs and lug nuts. Discount Tire explains that bolt pattern is the way wheels are secured to the vehicle and that wheels should not be installed when the original-equipment bolt pattern does not match.
Warning: Do not force a wheel onto a Tacoma if the bolt holes do not line up perfectly. A “close enough” bolt pattern is not safe. Also confirm the correct lug nut thread, lug-seat type, and torque before driving.
Toyota Tacoma Bolt Pattern by Year
The easiest way to start is by matching your Tacoma’s model year and drivetrain. The table below gives a practical fitment overview, but you should still verify your exact trim, wheel package, and owner’s manual before buying wheels.
| Tacoma Years | Common Configuration | Bolt Pattern | Fitment Notes |
|---|---|---|---|
| 1995-2004 | 2WD vs 4WD varies | 5×114.3mm or 6×139.7mm | Many 2WD models use 5-lug wheels; many 4WD models use 6-lug wheels. |
| 2005-2015 | 2WD, PreRunner, and 4WD vary | 5×114.3mm or 6×139.7mm | Base 2WD trucks are commonly 5-lug; PreRunner and 4WD trucks are commonly 6-lug. |
| 2016-2023 | Third-generation Tacoma | 6×139.7mm | Also written as 6×5.5 inches; many use M12x1.5 lug hardware. |
| 2024-present | Fourth-generation Tacoma | 6×139.7mm | Current fitment references list about a 95.1-95.2mm hub bore and M14x1.5 wheel hardware. Check the Toyota owner’s manual page for official vehicle documentation. |
For 2024, 2025, and available 2026 Tacoma fitment data, current wheel references continue to list the 6×139.7mm bolt pattern. The bigger change for many owners is not the bolt pattern; it is the fourth-generation truck’s smaller hub bore compared with many older 6-lug Toyota truck wheels.
Essential Tools for Measuring Bolt Patterns
You do not need expensive tools to confirm a Tacoma bolt pattern, but accuracy matters. A small measuring mistake can lead you to buy wheels that do not fit.
Measuring Tools Needed
| Tool | Purpose | Notes |
|---|---|---|
| Tape measure or caliper | Measures the lug spacing | A caliper is more accurate, but a tape measure works for confirming 6×5.5 inches. |
| Lug wrench or socket | Removes the wheel if needed | Use the correct socket for your lug nuts; do not rely on impact tools for final tightening. |
| Torque wrench | Tightens lugs to spec after reinstalling the wheel | Confirm the correct torque in your owner’s manual for your exact model and wheel setup. |
| Hub bore gauge or caliper | Checks the center bore and hub size | Useful when mixing older Tacoma wheels, aftermarket wheels, or hub-centric rings. |
Measurement Techniques Explained
A bolt pattern has two parts: the number of lug holes and the diameter of the imaginary circle through those holes. For example, 6×139.7mm means six lug holes on a 139.7mm circle. In inches, 139.7mm is 5.5 inches, so the same pattern is 6×5.5.

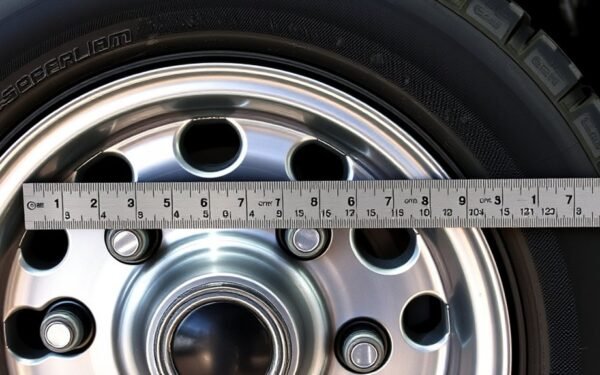

For a 6-lug Tacoma wheel, measure in a straight line from the center of one lug hole to the center of the lug hole directly opposite. This matches the standard measuring method for 6-bolt patterns described by major tire retailers.
How to Measure a Toyota Tacoma Bolt Pattern
- Count the lug holes. Your Tacoma wheel will usually have either five or six lug holes, depending on year and drivetrain.
- Find two opposite holes. On a 6-lug wheel, choose one lug hole and locate the hole directly across the center of the wheel.
- Measure center-to-center. Measure from the center of the first hole to the center of the opposite hole. A 6-lug Tacoma should measure about 5.5 inches or 139.7mm.
- Write the pattern correctly. Six lugs with a 139.7mm circle is written as 6×139.7mm. Six lugs with a 5.5-inch circle is written as 6×5.5.
- Verify the rest of the fitment. Check center bore, offset, wheel width, brake clearance, lug thread, lug-seat type, and tire size before purchasing.
Pro Tip: If you are buying aftermarket wheels, ask the seller to confirm fitment using your Tacoma’s exact year, trim, drivetrain, brake package, and desired tire size. Bolt pattern alone is not enough.
Common Bolt Patterns for Toyota Tacoma: What You Need to Know
The most common Tacoma bolt pattern is 6×139.7mm, especially on 4WD models, PreRunner models, and all 2016-present Tacoma models. However, not every Tacoma is 6-lug. Many older 2WD models use 5×114.3mm, so it is important to check the truck instead of relying only on the name “Tacoma.”
For 2024-present Tacoma models, current fitment references such as Wheel-Size and AvtoReference list the bolt pattern as 6×139.7mm. Many current references also list the fourth-generation Tacoma hub bore at about 95.1-95.2mm and the wheel hardware as M14x1.5. Because torque values and wheel hardware can vary by wheel type, always confirm final installation specs in Toyota documentation or with a qualified tire shop.
A Tacoma wheel can match the bolt pattern and still fail the fitment check if the hub bore, offset, lug-seat type, or brake clearance is wrong.
How Bolt Patterns Differ Across Tacoma Generations
Tacoma wheel fitment has changed over time. The biggest differences are between early 5-lug 2WD trucks, older 6-lug 4WD/PreRunner trucks, third-generation 6-lug trucks, and the 2024-present fourth-generation Tacoma with a smaller hub bore.
Generational Bolt Pattern Changes
- First generation, 1995-2004: Many 2WD models use 5×114.3mm, while many 4WD models use 6×139.7mm.
- Second generation, 2005-2015: Base 2WD trucks are commonly 5×114.3mm; PreRunner and 4WD trucks are commonly 6×139.7mm.
- Third generation, 2016-2023: Tacoma fitment is commonly 6×139.7mm across the lineup.
- Fourth generation, 2024-present: The Tacoma continues with 6×139.7mm, but the hub bore and wheel hardware differ from many older 6-lug Tacoma wheels.
Compatibility With Older Models
Older 6-lug Tacoma wheels may share the 6×139.7mm pattern with a 2024-present Tacoma, but that does not automatically mean they are a direct fit. Many older Toyota truck wheels have a larger center bore, commonly around 106.1mm, while the newer Tacoma hub bore is commonly listed around 95.1-95.2mm. A wheel with a larger center bore may need the correct hub-centric ring to center properly during installation.
The opposite problem is more serious: if the wheel center bore is smaller than your Tacoma’s hub, the wheel will not seat on the hub without machining, and you should not force it on.
Measuring Techniques for Accuracy
Use these checks before you order wheels:
- Count the lugs first. Do not assume a Tacoma is 6-lug just because it is a truck.
- Measure center-to-center. For 6-lug wheels, measure from the center of one hole to the center of the opposite hole.
- Confirm the hub bore. A mismatch can cause installation problems or vibration.
- Check offset and width. A wheel that sticks too far in or out can rub suspension, fenders, or brake components.
- Confirm lug hardware. Older Tacoma lug nuts may not fit 2024-present Tacoma studs, and OEM lug nuts may not match aftermarket wheel seats.
Verifying Aftermarket Wheel Compatibility
Aftermarket wheel fitment requires more than matching the bolt pattern. Before buying, verify each of these details:
- Bolt pattern: Match your truck exactly, such as 6×139.7mm or 5×114.3mm.
- Center bore: The wheel bore must fit over the hub. If the wheel bore is larger, the correct hub-centric ring may help center it.
- Lug thread: Confirm the correct stud thread for your year. Many older Tacomas use M12x1.5, while current references list 2024-present Tacoma models with M14x1.5 hardware.
- Lug-seat type: Factory Toyota wheels often use washer-style lug nuts, while many aftermarket wheels use conical/tapered-seat lug nuts. Use the lug nut type required by the wheel manufacturer.
- Offset and backspacing: These affect how far the wheel sits inboard or outboard. Too much change can cause rubbing or poor handling.
- Brake clearance: Test-fit if possible, especially with smaller-diameter wheels or larger brake packages.
- Load rating: Choose wheels rated for the Tacoma’s weight and intended use.
Note: Wheel Pros explains that hub-centric rings help adapt a wheel’s center bore to the vehicle hub and can reduce ride disturbance during installation, but the rings do not carry vehicle load.
[Products Worth Considering]
SPECIFICATION: M12x1.5 thread - closed end bulge style lug nuts - conical 60 degree seat - 17mm hex - 1.37 in. long - 0.87 in. wide - color: black. Our nuts have an innovative design in appearance due to personal preference
Vehicle Models: Aftermarket wheels with 60 degree seat, replacement for Toyota Tacoma (6-Lug Only), FJ Cruiser, Sequoia, Tundra, Chevy Canyon, Envoy, Colorado, Not fit for 90 degree seat original wheel
What to Do If Your Wheels Don’t Fit Properly
If a wheel does not fit correctly, do not keep tightening the lug nuts to “pull” it into place. Remove the wheel and check the cause.
- If the bolt holes do not line up: The bolt pattern is wrong. Do not install the wheel.
- If the wheel will not slide onto the hub: The center bore may be too small, or rust/debris may be blocking the hub face.
- If the wheel has play before tightening: The center bore may be larger than the hub, and hub-centric rings may be needed.
- If the lug nuts bottom out or do not seat correctly: The lug thread, shank length, or lug-seat type may be wrong.
- If the wheel rubs: The offset, width, tire size, or suspension clearance may be wrong.
- If you feel vibration after installation: Stop driving at speed and recheck torque, centering, balance, hub rings, and wheel condition.
Warning: Wheel spacers and adapters add more variables, including stud engagement, load rating, torque sequence, and inspection intervals. Use only high-quality hub-centric parts made for your exact application, and have a qualified technician inspect the setup.
[Products Worth Considering]
SAFE AND SECURE: This Orion Motor Tech 5x5 automotive wheel spacer kit will improve the cornering, stability, handling, and control of your vehicle by adding 3 inches to its axle track
Fitment: Compatible with 1999-2026 Silverado 1500, 1995-2000 Tahoe 4WD, 2001-2026 Tahoe, 2015-2026 Suburban, 2003-2014 Express 1500, 2007-2013 Avalanche, 2002-2006 Avalanche 1500 | 1999-2026 Sierra 1500, 2000-2026 Yukon, 2015-2026 Yukon XL, 2000-2014 Yukon XL 1500, 2003-2014 Savana 1500 | 1999-2026 Escalade
FITMENT: KSP 6x139.7 spacer could fit 1999-2026 Silverado 1500, 1995-2026 Tahoe 4WD, 2007-2013 Avalanche, 2002-2006 Avalanche 1500, 2000-2014 Suburban 1500, 2003-2014 Express 1500, 1999-2026 Sierra 1500, 2000-2026 Yukon, 2003-2014 Savana 1500, 1999-2026 Escalade.
Benefits of Using Hub-Centric Rings
Hub-centric rings are useful when the wheel’s center bore is larger than the Tacoma’s hub. They fill the gap so the wheel centers more accurately during installation. This can help reduce vibration caused by a wheel that is not centered on the hub.
They are especially relevant when using universal aftermarket wheels or older 6-lug Toyota wheels on a 2024-present Tacoma. However, hub-centric rings are not a fix for the wrong bolt pattern, wrong offset, damaged wheels, incorrect lug nuts, or poor balancing.
Tips for Shopping for Wheels and Tires
When shopping for Tacoma wheels and tires, use a complete fitment checklist instead of relying on one number.
- Start with your year and drivetrain. This quickly separates older 5-lug trucks from 6-lug trucks.
- Match the bolt pattern exactly. Common Tacoma 6-lug fitment is 6×139.7mm, but older 2WD models may be 5×114.3mm.
- Check the hub bore. A larger wheel bore may need rings; a smaller bore will not fit.
- Confirm lug nuts before installation. Thread pitch and seat type must match both the truck and the wheel.
- Ask about offset and rubbing. Bigger tires and lower offsets can look good but may rub without trimming or suspension changes.
- Keep records. Save your wheel size, offset, tire size, lug type, and torque spec so future rotations and tire work are easier.
[Products Worth Considering]
【Quality and Safety Assurance】 The KSP 6x139.7 wheel spacers are real forged from lightweight, anodized black 6061-T6 aluminum, making them more heavy-duty, durable, and corrosion-resistant. They are specifically designed by in-house engineers and CNC machined to exact standards, ensuring the best fitment possible. The heat-treated and hardened 10.9 grade Geomet bolts are not easy to break off or strip. By carefully measuring the OEM wheel hubs and bore dimensions, these 106mm hubcentric spacers mount with minimal clearance to prevent any vibration, retaining stock driving performance.
Compatibility: 1995-2023 Tacoma(only fit 6 lug); 1989-2023 4Runner; 2000-2006 Tundra; 2007-2023 FJ Cruiser; 2004-2019 Ventury; 2001-2007 Sequoia; 2005-2023 Fortuner; 2002-2023 GX460 GX470.Recommended torque:70-80 FT/LBS
Compatibility: Compatible with 1984-2023 4Runner, 2016-2023 Tacoma, 2000-2006 Tundra, 2007-2014 FJ Cruiser, 2001-2007 Sequoia, 2010-2022 Lexus GX460, 2003-2009 Lexus GX470, 2004-2012 GMC Canyon, 2004-2014 Chevrolet Colorado, 1994-2002 Honda Passport, 2006-2010 Hummer H3, 2009-2010 Hummer H3T, 1996-1997 Acura SLX Base Sport Utility 4-Door, 1996-1999 Acura SLX Premium Sport Utility 4-Door.
Frequently Asked Questions
Are all Tacomas 6×139.7 in lug pattern?
No. Many Tacoma models are 6×139.7mm, especially 4WD, PreRunner, 2016-2023, and 2024-present trucks. However, many older 2WD Tacomas use a 5×114.3mm bolt pattern. Always check your exact year, drivetrain, and wheel.
What is the bolt pattern on a 2024, 2025, or 2026 Toyota Tacoma?
Current fitment references list the 2024-present Toyota Tacoma with a 6×139.7mm bolt pattern, also written as 6×5.5 inches. Also check the hub bore, lug thread, lug-seat type, offset, and official torque specification before installing wheels.
Did the 2024 Tacoma change lug nut size?
Yes, current fitment references commonly list the 2024-present Tacoma with M14x1.5 wheel hardware, while many earlier Tacomas use M12x1.5. Do not reuse older lug nuts unless they match the new truck’s studs and the wheel’s required lug-seat type.
Can 2016-2023 Tacoma wheels fit a 2024-present Tacoma?
They may share the 6×139.7mm bolt pattern, but bolt pattern alone is not enough. Check center bore, lug hardware, lug-seat type, offset, brake clearance, and tire size. Older wheels with a larger center bore may require hub-centric rings, and older lug nuts may not be correct for the newer truck.
How do I measure a 6-lug Tacoma bolt pattern?
Measure from the center of one lug hole to the center of the lug hole directly across from it. If the measurement is about 5.5 inches or 139.7mm, the pattern is 6×5.5 inches or 6×139.7mm.
What Toyota has a 5×150 bolt pattern?
Some larger Toyota and Lexus truck/SUV applications, such as certain Tundra, Sequoia, Land Cruiser, and Lexus LX models, use 5x150mm. That pattern is not the common Tacoma 6-lug pattern. Always verify by exact year and trim before buying wheels.
Conclusion
The safest way to find your Toyota Tacoma bolt pattern is to match your year and drivetrain first, then measure the wheel directly. Most 6-lug Tacomas use 6×139.7mm, but some older 2WD trucks use 5×114.3mm. For 2024-present trucks, pay close attention to the newer hub bore and lug hardware in addition to the bolt pattern. Measure carefully, verify the full fitment, and use the correct torque and lug nuts before driving.
Sources
- Toyota Owners Manuals and Warranties — official Toyota documentation access for model-specific owner information.
- Wheel-Size: 2024 Toyota Tacoma wheel specs — bolt pattern, wheel size, offset, hub bore, and fitment reference.
- AvtoReference: 2024 Toyota Tacoma wheel specifications — PCD, center bore, thread size, wheel sizes, and pressure reference.
- Discount Tire Bolt Pattern Guide — bolt pattern definition and measuring method for 6-lug wheels.
- Wheel Pros Hub-Centric Rings Guide — explains hub-centric rings, center bore matching, and vibration considerations.
