Tymate TM12 RV Tire Pressure Monitoring System Review
Disclosure: As an Amazon Associate, we earn from qualifying purchases. If you click a link on this page and make a purchase, we may receive a small commission at no extra cost to you.
A slow leak on a trailer can become expensive before you feel any change at the steering wheel. The Tymate TM12 RV Tire Pressure Monitoring System gives you pressure and temperature readings for six tires out of the box, with room to expand the display to 12 sensors. Its color monitor, USB-C charging, solar backup, and six warning modes make it practical for many tow setups. The tradeoff is that external sensors require correct valve-stem fit, and longer or signal-blocked rigs may need a separate repeater.
Quick Verdict
Rating: 8/10, recommended with caveats
Best For: RV, truck, SUV, and medium-trailer owners who need six-tire monitoring with optional expansion.
Bottom Line: The TM12 offers useful multi-tire coverage, a color display, automatic pressure baselines, and clear alert types. Check your tire pressure requirements, valve-stem clearance, and total rig length before relying on the standard kit.
| Specification | Detail |
|---|---|
| Brand | Tymate |
| Model | TM12, six-sensor version |
| Product type | External-sensor tire pressure and temperature monitoring system |
| Sensors included | 6 pre-programmed external sensors |
| Maximum sensor support | Up to 12 sensors, with extra sensors sold separately |
| Display | Color receiver with six-wheel simultaneous view and split-screen cycling for larger setups |
| Power | USB-C charging with integrated solar recharging support |
| Advertised signal range | 50 feet, extendable beyond 100 feet with a compatible Tymate repeater |
| Pressure range | Common current listings state 0 to 116 PSI; confirm the exact range on the live product page before buying |
| Sensor protection | IP67-rated external sensors |
| Alert modes | High pressure, low pressure, high temperature, rapid air loss, low sensor battery, and signal loss |
| Best use | RVs, tow vehicles, SUVs, pickups, and most medium towable trailers within the system’s range and pressure limits |
Key Takeaways
- The linked TM12 package includes six external sensors and supports expansion to 12 tire positions.
- The receiver combines a color display with USB-C charging and solar recharging support.
- Six alert types cover high or low pressure, high temperature, rapid air loss, low battery, and signal loss.
- The advertised 50-foot range may be extended with a compatible repeater when the rig is longer or signal-blocked.
- Buyers should confirm the exact pressure ceiling and valve-stem fit before installing the sensors.
Before You Buy: Check your cold tire pressure, valve-stem material, sensor clearance, and total distance from the dashboard to the farthest tire. Current listings do not agree on the maximum PSI, so verify the live Amazon specification for this exact ASIN before using it on high-pressure motorhome tires.
[Products Worth Considering]
The Tymate TM12 RV TPMS delivers real-time tire pressure and temperature monitoring with a stable 433Hz display for safer long-distance driving. It supports simultaneous monitoring across vehicle and trailer zones, includes six alarm modes for pressure, temperature, leakage, battery, and signal loss, and features easy DIY installation with auto calibration. Power is supplied via USB-C charging or solar recharging, with a wide 0–144 PSI range and up to 50 ft signal coverage for RVs and towable trailers.
The Tymate TM3 RV TPMS delivers real-time tire pressure monitoring from 0 to 144 PSI with accurate readings and dependable wireless communication. It includes four external sensors with pre-pairing, six alarm modes for rapid leak, pressure extremes, temperature, and signal loss, plus an easy-reference setup for alert thresholds. Solar and USB-C charging help keep the display powered, while the color LCD and adaptive backlight improve visibility for safer driving and towing.
Marcala’s TPMS set of four sensors helps you monitor tire pressure and temperature in real time while driving, with updates every second. The bright color LCD uses auto-dimming for easy viewing, powered by dual solar and USB charging, and offers six alarm modes. Built for trailers, RVs, campers, trucks, and towing setups, the sensors support monitoring 1-4 wheels up to 98 PSI with IP67 waterproof protection.

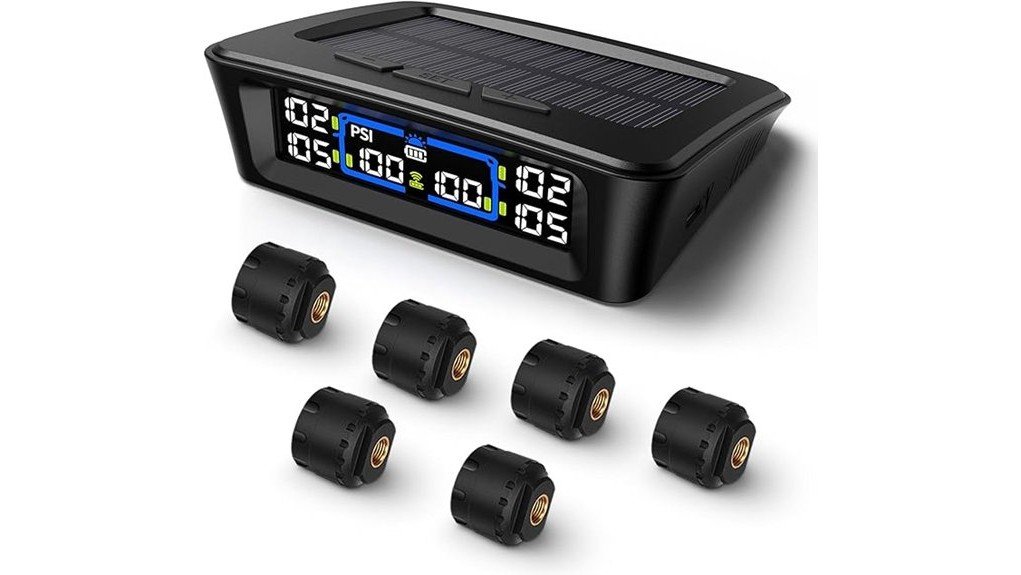

What Is the Tymate TM12 and What’s Included?
The Tymate TM12 is an aftermarket TPMS that replaces each normal valve cap with an external pressure and temperature sensor. The sensors send tire data to a dedicated dashboard receiver, so you can watch several tires without adding an app or connecting to the vehicle’s factory electronics.
This six-sensor version targets tow vehicles, trailers, RVs, pickups, and SUVs that need more coverage than a standard four-tire kit. The receiver supports up to 12 sensors across organized tire zones, but extra sensors and the optional repeater are separate purchases unless a seller states otherwise.
Who Should Buy It?
Best For
- Drivers monitoring a six-tire RV, truck, or tow combination.
- Trailer owners who want pressure and temperature alerts on a dedicated display.
- Buyers who may expand to more tires later without replacing the receiver.
Skip If
- Your tires require pressure above the verified limit shown for the exact listing.
- Your valve stems are damaged, flexible, recessed, or too close to nearby hardware.
- You need premium features such as flow-through sensors, a larger display, or a repeater included in every kit.
How the Tymate TM12 Covers 6 to 12 Tires
The standard package starts with six external sensors. That works well for a dual-axle trailer plus tow vehicle positions, a six-wheel motorhome, or another layout where four sensors leave important tires unmonitored.
The receiver can manage up to 12 sensors. Its zone-based screen helps separate the tow vehicle, trailer, and spare positions. Expansion adds flexibility, but it also increases setup work and cost because the additional sensors are not part of the six-sensor package.
Display and Charging
The TM12 uses a color display that can show six tire positions at once. Larger configurations cycle between zones, which keeps the screen readable without forcing all 12 readings into one crowded view.
USB-C is the dependable charging method, especially before first use or during cloudy storage. The integrated solar panel can support the battery during normal daylight driving, but solar input depends on light exposure and should be treated as backup charging rather than the only power source.
Tymate TM12 Alarm Modes and Pressure Baseline
The receiver covers six core warning conditions: high pressure, low pressure, high temperature, rapid air loss, low sensor battery, and sensor signal loss. Both pressure and temperature matter because an abnormal rise can point to a tire, load, brake, or bearing problem that needs inspection.
The TM12 uses an automatic pressure baseline during installation. Current product information states that high-pressure alerts trigger at about 25 percent above the reference pressure and low-pressure alerts at about 15 percent below it. This simplifies setup, but it gives you less manual control than systems with fully adjustable thresholds.
How to Set Up the Tymate TM12
Physical installation is simple: fully charge the receiver, match each labeled sensor to its assigned tire, remove the valve cap, and screw the sensor onto the valve stem. After installation, confirm that every tire position reports a realistic pressure before driving.
External sensors add weight and length to the valve stem. Inspect rubber stems for cracking or excess movement, and make sure each sensor clears wheel covers, dually hardware, and nearby stems. A metal valve stem is the safer choice when the sensor manufacturer or tire professional recommends it for your wheel setup.
Pro Tip: Before a long trip, compare all six TM12 readings with a trusted handheld gauge while the tires are cold. Then drive a few miles and confirm that the pressure or temperature values change, which shows the sensors are actively updating.
Range and Repeater Needs
Tymate advertises a 50-foot signal range, which should cover many medium RV and trailer combinations when the receiver has a clear path to the sensors. Metal body panels, electronics, tire position, and the distance to the rear axle can reduce real-world performance.
A compatible repeater can extend the connection beyond 100 feet and may help when the farthest sensors drop out. The basic six-sensor kit should not be assumed to include that repeater, so check the package description before ordering.
[Products Worth Considering]
Keep RV, trailer, or truck dual-axle tires protected with waterproof, UV-resistant covers that help guard against sunlight, snow, rust, and dirt. The dual tire covers are...
Compatibility and Safety
The TM12 is an add-on monitoring tool, not a substitute for correct inflation, tire-age checks, load limits, tread inspections, or professional service. It can warn you about a developing pressure or temperature problem, but it cannot prevent punctures or guarantee an alert before every sudden failure.
Use the cold pressure listed by the vehicle, trailer, or tire manufacturer. Do not set pressure based only on the TM12 reading. Stop safely and inspect the tire whenever the monitor reports a rapid leak, abnormal heat, repeated signal loss, or a reading that does not match a manual gauge.
How It Performs in Real Use
For a Tow Vehicle and Dual-Axle Trailer
Six sensors can cover four trailer tires plus two selected tow-vehicle tires, or another six-position layout. The dedicated receiver keeps those readings visible without opening a phone app, but you must choose which tires matter most if your complete combination has more than six.
For a Six-Wheel RV
The included sensor count matches a common six-wheel layout. Dually access can be the main challenge, so confirm that inner and outer stems point in usable directions and leave enough room for the sensor body.
For Longer Trailers or Fifth Wheels
The 50-foot advertised range may be enough, but the dashboard-to-rear-axle distance matters more than the trailer’s brochure length. Signal blockage can also change results. A repeater is worth planning for when the farthest sensors connect slowly or drop readings.
For Seasonal Storage
Remove the display from extreme heat when the vehicle is stored, and check sensor condition before the next trip. Recharge the monitor by USB-C, inspect the valve stems, and make sure every sensor reconnects instead of assuming the last displayed number is current.
Setup Tips Before First Use
- Charge the receiver fully: Use USB-C before relying on solar recharging.
- Check cold pressure first: Inflate each tire to the vehicle or trailer specification before attaching sensors.
- Match every label: Install each pre-programmed sensor on its assigned wheel position.
- Inspect for leaks: Apply soapy water around the installed sensor and valve connection. Bubbles can indicate air loss.
- Confirm active readings: Compare with a handheld gauge and check that values respond after driving.
- Test the alarm safely: Follow the manual’s test procedure rather than intentionally driving on an underinflated tire.
Pros and Cons
Pros
- Six external sensors are included for larger setups.
- The receiver can expand to 12 tire positions.
- Color display shows six tires at the same time.
- USB-C charging and solar support reduce cable dependence.
- Six alerts cover pressure, heat, battery, leakage, and connection problems.
Cons
- External sensors require enough valve-stem strength and clearance.
- Extra sensors and a repeater may add cost for large combinations.
- Automatic baseline thresholds offer less adjustment than premium systems.
Is the Tymate TM12 RV TPMS Worth the Price?
The TM12 fits the value-focused end of multi-tire RV monitoring. It gives you six sensors, expandable coverage, a dedicated color screen, and several alert types without moving into the feature set of premium fleet-style systems.
It offers the most value when the included six sensors cover your full layout and the standard range reaches the rear tires. It is less compelling when you immediately need more sensors, a repeater, flow-through transmitters, or higher confirmed pressure capacity.
How It Compares to Alternatives
The TireMinder i10 is a premium alternative with a larger ecosystem, support for more actively monitored tires, higher published pressure capacity, and a longer warranty. TST 507 kits offer cap or flow-through sensor choices and commonly bundle a repeater, while EezTire systems focus on larger tire counts and adjustable RV-oriented monitoring.
The Tymate TM12 makes more sense when you want a simpler six-sensor package with solar-assisted charging and a lower feature burden. Compare alternatives when you need high-pressure motorhome compatibility, flow-through inflation, advanced threshold control, or stronger manufacturer support.
Frequently Asked Questions
Does the Tymate TM12 include six sensors?
Yes. The linked TM12 configuration includes six pre-programmed external sensors. The receiver can support up to 12 sensors, but added sensors are normally purchased separately.
What is the maximum pressure range?
Several current listings state a 0 to 116 PSI range, while some reseller copies show a different upper limit. Confirm the live specification for ASIN B0FH1JZZ9X before using it with high-pressure RV tires.
Does the kit include a signal repeater?
Do not assume the six-sensor version includes one. Tymate sells different configurations, and the Ultra package may include a repeater while the standard or Pro package may not. Check the package list on the live product page.
Will the sensors fit dually wheels?
They can work on dually setups when the inner and outer valve stems are accessible and leave enough clearance. You may need properly rated extensions or professional valve-stem service if the stems point inward or sit behind wheel covers.
Can the TM12 replace manual tire checks?
No. Use it as an added warning system. Check cold pressure with a reliable gauge, inspect tires and stems, follow load limits, and replace damaged or aged tires based on professional guidance.
How often should sensor batteries be replaced?
Replace a sensor battery when the low-battery warning appears or when the manual’s maintenance interval calls for it. Battery life varies with temperature, driving frequency, storage, and signal activity, so a fixed replacement promise would be unreliable.
Is the display readable in direct sunlight?
The color layout helps separate tire positions, but glare and mounting angle can still affect visibility. Position the receiver where sunlight can reach the solar panel without reflecting directly into the screen.
Who should skip the Tymate TM12?
Skip it when your tire pressure exceeds the verified range, your valve stems cannot safely carry external sensors, or your setup needs flow-through transmitters. A premium system may also suit you better when you want a bundled repeater and more adjustable controls.
The Bottom Line
The Tymate TM12 is a strong value for drivers who need six external sensors, a dedicated color display, and expansion up to 12 tires. Buy it when its verified pressure range, valve-stem fit, and signal distance match your rig; skip it when you need premium controls, flow-through sensors, or confirmed high-pressure capacity.
Ready to Buy?
Check the latest price, pressure range, package contents, and product details before you decide.
